Specifications

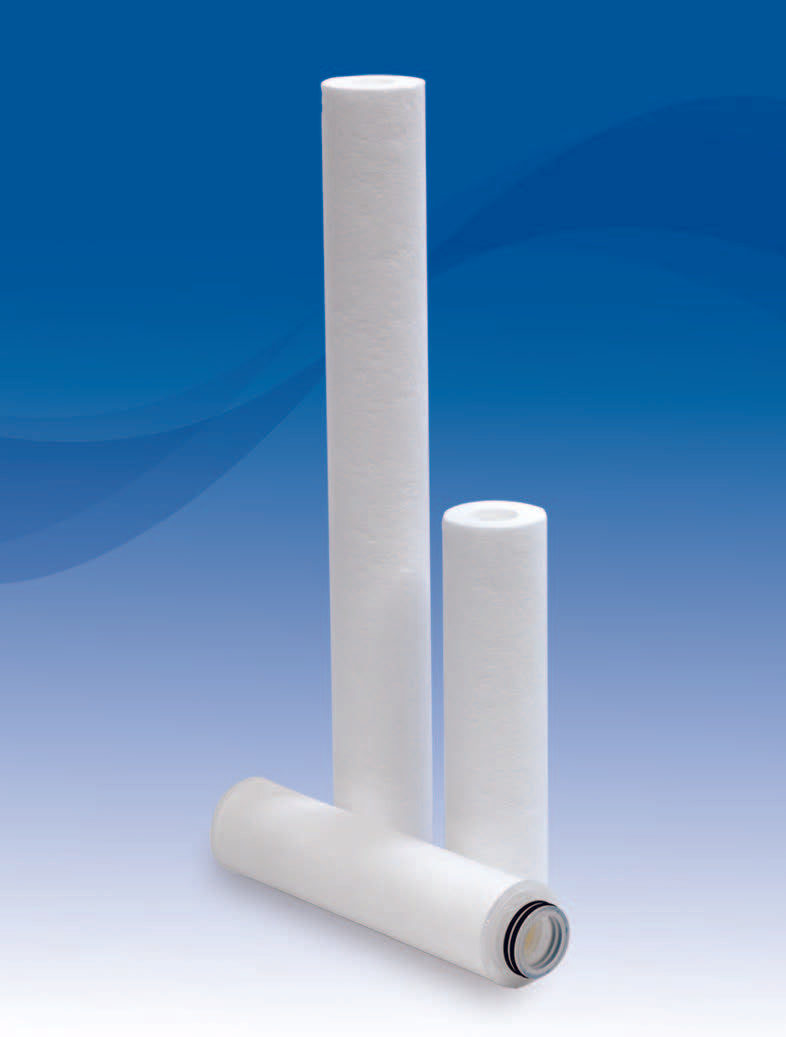

• Constructed of 100% polypropylene, these industrial filter cartridges use no additives or surfactants that will cause foaming or other undesirable effects to the filtrate
• Thermally bonded microfibers create a stable, self-supporting media
• Construction materials meet FDA Title 21 Code of Federal Regulations
• Graded density construction provides true depth style filtration
• Fixed pore construction allows higher dirt holding capacity without unloading
• Available in standard 2 ½” and 4 ½” (BB Style) diameter configurations
• End cap configurations available to fit your specific requirements
Applications
• RO Prefilters
• Potable Water
• Water & Wastewater
• Plating Solutions
• Food & Beverages
• Chemicals
• Microelectronics
• Photographic Solutions
| Pore Sizes | 1, 3, 5, 10, 20, 30, 50, 75, 100 microns |
| Nominal Lengths | 4 7/8", 10" (9 7/8"), 20", 30", 40" |
| Gaskets/O-rings | Buna N, EPR, Silicone, Viton (O-rings) and Santoprene (Polyethylene direct bond gaskets) |
| Materials of Construction | Filter Media: Polypropylene Outer Cage / Core / End Caps: Polypropylene |
| Maximum Operating Temperature | 140°F (60°C) |
| Recommended Change-out Differential Pressure | 20 psid (1.4 bar) |
| FDA and USP Compliance | Manufactured of pure polypropylene materials with no additives or other manufacturing agents. All materials used in the production of these cartridges meet the requirements of FDA Title 21 of The Code of Federal Regulations 174.5 and 177.1520. |
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Related equipment we stock
FLOW-MAX Pleated Synthetic Cartridge
2.75" x 20"
MicroVantage™ MAS-P Series - PES Membrane – Pharmaceutical Grade

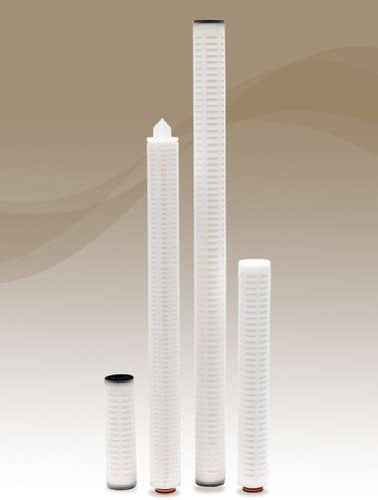

MicroVantage™ MPA Series
