Specifications

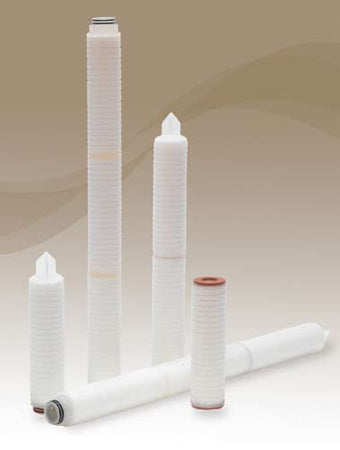

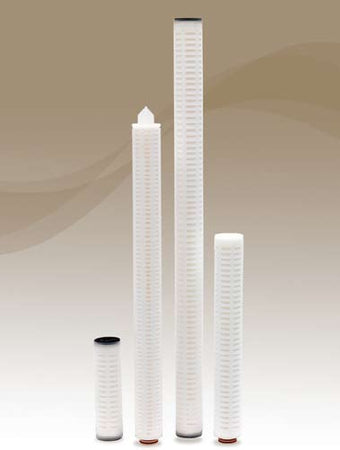

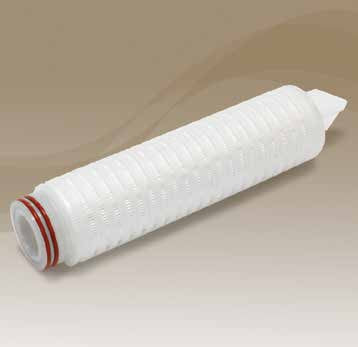

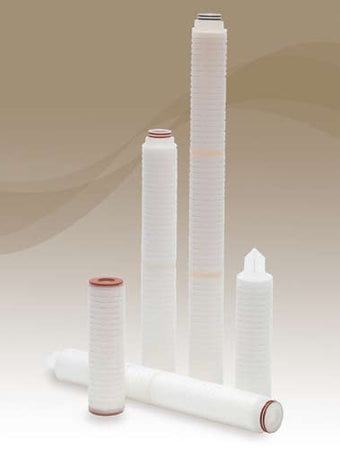

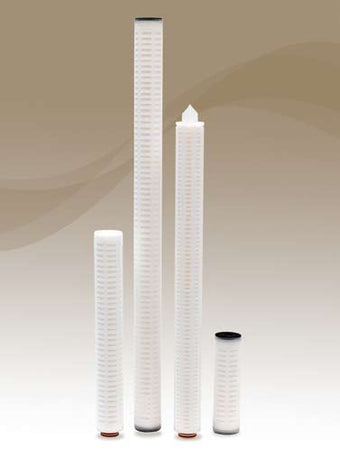

• Polytetrafluoroethylene (PTFE) membrane filter cartridges constructed in polypropylene hardware for a wide range of industrial applications
• Absolute retention from 0.1 to 1.0 microns
• Outstanding hydrophobicity and water intrusion resistance
• 100% flushed and integrity tested to ensure rated pore size
• Manufactured in Class 10,000 clean room for high purity
• Meets applicable CFR criteria and USP Class VI Biological Test for plastics
• Suitable for steam or autoclave sterilization and hot water or chemical sanitization

Applications

• Tank Ventilation
• Specialty Chemicals
• Process Gases
• Photoresists
• Compressed Air
• Solvents Alcohols
• Acids
• Bases
• Esters

Pore Sizes0.1, 0.2, 0.45, 1.0 microns
Nominal Lengths9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm)
Outside Diameter2.67" (6.78 cm)
Inside Diameter1.0" (2.54 cm)
Media Surface Area8.5 sq.ft. (0.79 m2) per 10 inches filter length
Gaskets/O-ringsSilicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (o-rings only)
Materials of ConstructionFilter Media: PTFE
Outer Cage / Core / End Caps: Polypropylene
Maximum Operating Temperature176°F ( 80°C)
Recommended Change-out Differential Pressure35 psid (2.4 bar)
Maximum Differential (Collapse) PressureForward: 70 psid @ 70°F (5.2 bar @ 21°C), 40 psid @176°F (2.8 bar @ 80°C)
Reverse: 40psid @ 70°F (2.7 bar @ 21°C)
Sanitization and SterilizationHot water at 175°F (80°C) at 5 psid for 30 minutes
In-line steam at 257°F (125°C) @ 1 psid (0.7 bar) for 30 minutes
Autoclavable at 257°F (125°C) for 30 minutes
FDA and USP ComplianceAll filters are manufactured of virgin polypropylene materials with no additives or other manufacturing agents. All polypropylene materials comply with the requirements of Food and Drug Administration Title 21 of The Code of Federal Regulations 174.5, 177.1520 and 177.1630. All components meet current USP Class VI biological tests for plastics
Model Item Quantity Unit Price Line Total
Default Title - MICROVANTAGE™ MAT SERIES – PTFE MEMBRANE
$ 0.00
