A powerful mechanical cell disruption device ideal for challenging glass bead procedures, including the disruption of yeast cells, bacteria, tissue or any sample requiring violent high-speed agitation. Digital variable speed model and Fixed speed model available - both support timed or continuous operation. Supports high-throughput disruption of up to 12 microtubes, 1.5 mL or 2.0 mL, snap cap or screw cap.
Features
- A unique patented mechanism combines vortex and disruption, enabling sample-bead collisions or breaking of pelletized samples directly within the tube.
- Made from spherical lead-free soda lime glass, the Disruptor BeadsTM are available in two sizes: 0.1 mm beads, ideal for bacteria samples, and 0.5 mm beads, perfect for yeast or fungi samples.
- Simply remove the microtube holder and snap on the pop-off cup to enable continuous or timed high-speed vortexing of single test tubes.
Details
| Applications | DNA/RNA Extraction, Protein Extration, Microbial Cell Disruption, Soil Sample Disruption, Fecal Sample Processing for Microbiome Studies, Plant Tissue Grinding, Insect Tissue Homogenization, Bacterial & Fungal Cell Lysis, Pellets Resuspension |
| Display | Adjustment knob with dial markings, or independent LED displays for digital models. |
| Operation | Supports 100 VAC, 120 VAC, and 230 VAC power inputs, power cord included. |
| Communication | N/A |
| Construction | Zinc-casted housing with "no-walking feet" design, universal microtube holder, mounting bracket. |
| Design Features | Use with 1.5mL or 2.0mL microtubes with snap or screw caps, hands-free operation, cold room and incubator compatible, speed monitor and alarm on digital model, sleep mode for energy saving on digital model. |
Models
| Part Number | Model | Control | Capacity | Dimensions | Timer | Speed Range | Display |
|---|---|---|---|---|---|---|---|

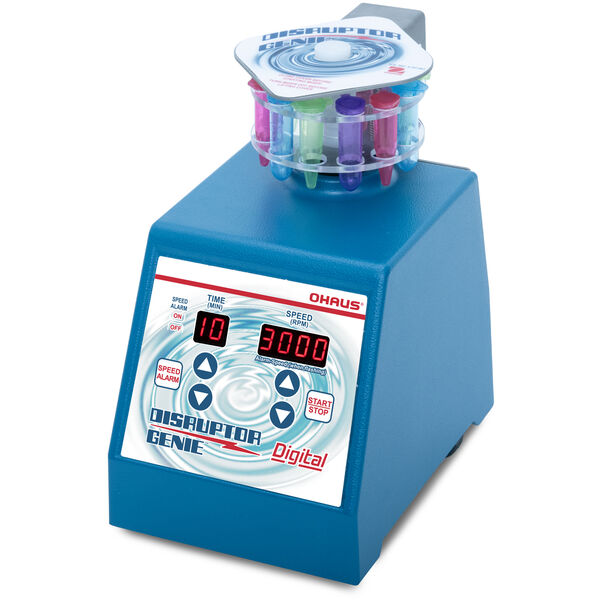

| OH-83041289 | Digit Disruptor Genie, e-D2D, SI-DD38 US | Digital | 12 x 1.5/2.0 mL microtubes | 6.5 in x 7.5 in x 4.8 in (165 mm x 190 mm x 122 mm) (LxHxW) | 1 min - 99 min | 1,000 rpm – 3,000 rpm | Red LED |
| OH-83041296 | Disruptor Genie, e-D2, SI-D238 US | Analog | 12 x 1.5/2.0 mL microtubes | 6.5 in x 7.5 in x 4.8 in (165 mm x 190 mm x 122 mm) (LxHxW) | 0 min - 15 min | 3,000 rpm – 3,000 rpm | — |
Related equipment we stock

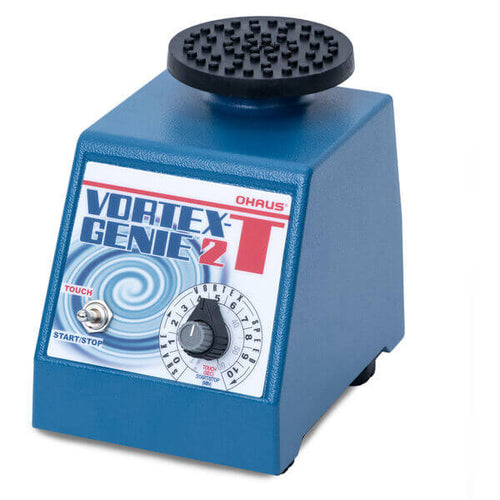

OHAUS Vortex-Genie™
