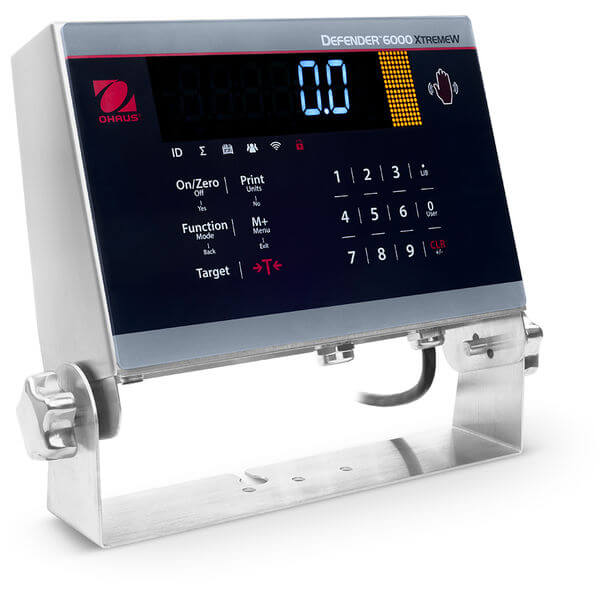

The Defender 6000 Series Extreme Washdown Indicator is specifically designed for food, chemical and pharmaceutical applications including production, processing, and packaging. Defender 6000 handles the most demanding applications with a 316 stainless steel housing equipped with bar matrix check light, knife-proof front panel and EasyConnectTM.
Features
- Defender 6000 indicator, constructed of 316 stainless steel, stands up to harsh cleaning in processing and packaging environments with IP68 immersion/IP69K washdown protection.
- White LED displays clear results for fast processing. The indicator’s configurable color bar matrix allows for detailed package weight checking to ensure compliance.
- With knife-proof numeric touch keypad, indicator is suitable in harsh processing environments.
Details
| Applications | Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold |
| Display | 6-digit, 7-segment white LED, 20 mm high digits |
| Operation | 100-240 VAC / 50/60 Hz universal power supply, hardwired |
| Communication | Easy access communication ports including RS232 and USB Host, second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (available as accessories); GLP/GMP data output with real-time clock |
| Construction | IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel |
| Design Features | 3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare, up to 75000d or 10000e |
Models
| Part Number | Model | Resolution | Battery Life | Outputs | Second Scale Input | Protection Rating | Communication |
|---|---|---|---|---|---|---|---|
| OH-30575584 | DT61XWE | 75,000 | Not Applicable | 4 - 20mA;0–10V;2 In/4 Out digital I/O | Not Applicable | IP69k;IP68 | Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232;USB Host;WiFi/Bluetooth (available as an accessory) |
