Genie rotators combine rotating and rocking in a compact, versatile design. The magneto-magic system features a magnetic platform, clip plates, and bag strips that firmly hold various containers rotating at any angle, in any combination. Rocking tray fits large open containers. 3D and horizontal orbital attachments turn Roto-Shake Genie into an orbital shaker. Touchscreen control allows Roto-Rock Genie to program combined rock and rotate cycles.
Features
- Multi-spec clip plates and strips hold a wide variety of tubes, flasks, microplates, bags, and odd-shaped vessels. Freely attach to the magnetic platform at any angle, in any combination.
- Save space with a compact unit offering multiple mixing modes. Rotator Genie features switchable platforms. Standard platform adjusts to various rotation angles. Usable in cold rooms and incubators.
- Easily switches between rotating and rocking via the touchscreen, and allows programming of speed, time, rocking angle, and combination rock/rotate cycles.
Details
| Applications | Blood Sample Mixing, Protein Immunoprecipitation, Protein Purification, Protein Delipidation, Cell Lysis Buffer Mixing, Antibody Incubation, ELISA Reagent Mixing, Hybridization Protocols, Enzyme Reaction Mixing, Tissue Sample Staining, Drug Solubility Testing |
| Display | Adjustment knob with dial markings, or touchscreen LCD for Roto-Rock Genie. |
| Operation | Roto-Rock Genie supports 100-240 VAC power inputs, Rotator Genie and Roto-Shake Genie support 100 VAC, 120 VAC, and 230 VAC power inputs, power cord included. |
| Communication | N/A |
| Construction | Plastic and coated sheet metal housing, rubber feet, rotating platform, rock switch (not for Roto-Rock Genie). |
| Design Features | Optional stacking tray doubles rocking capacity for Roto-Rock Genie. Besides the clip plates and strips, the magnetic blot box and magnetic microtube boxes are available as accessories. |
Models
| Part Number | Model | Motion | Capacity | Tray Size | Control | Dimensions | Net Weight |
|---|---|---|---|---|---|---|---|

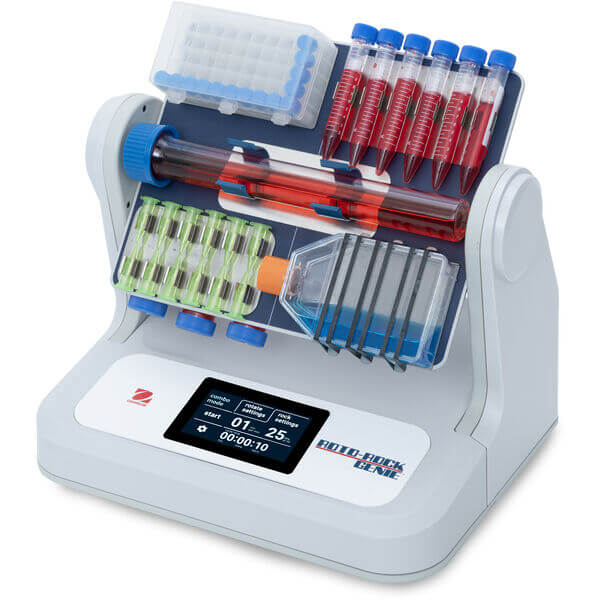

| OH-83041254 | Roto-Rock Genie, e-RT23, SI-R100 US | Rock;Rotate;Timed auto-switch Rock/Rotate | 4.5 kg/10 lb centered on axis for rotating / rocking | 12 in x 12 in (300 mm x 300 mm) (LxW) | Touch control | 12 in x 15 in x 15.75 in (300 mm x 380 mm x 400 mm) (LxHxW) | 21.3 lb (9.7 kg) |
| OH-83041339 | Rotator Genie, e-RT21/M, SI-2200 US | Rotate | 2.3 kg | 10.25 in x 10.25 in (260 mm x 260 mm) (LxW) | Analog | 7 in x 15.8 in x 15.8 in (175 mm x 400 mm x 400 mm) (LxHxW) | 11.5 lb (5.2 kg) |
| OH-83041346 | Rotator Genie, e-RT21, SI-2100 US | Rotate | 2.3 kg | 10.25 in x 10.25 in (260 mm x 260 mm) (LxW) | Analog | 7 in x 15.8 in x 15.8 in (175 mm x 400 mm x 400 mm) (LxHxW) | 11.5 lb (5.2 kg) |
| OH-83041387 | Roto-Shake Genie, e-RT22, SI-1100 US | Rock;Rotate;Shake with Accessories | 4.5 kg/10 lb centered on axis for rotating / rocking | 12 in x 12 in (305 mm x 305 mm) (LxW) | Analog | 9.9 in x 10.5 in x 20 in (252 mm x 267 mm x 508 mm) (LxHxW) | 26 lb (11.8 kg) |
