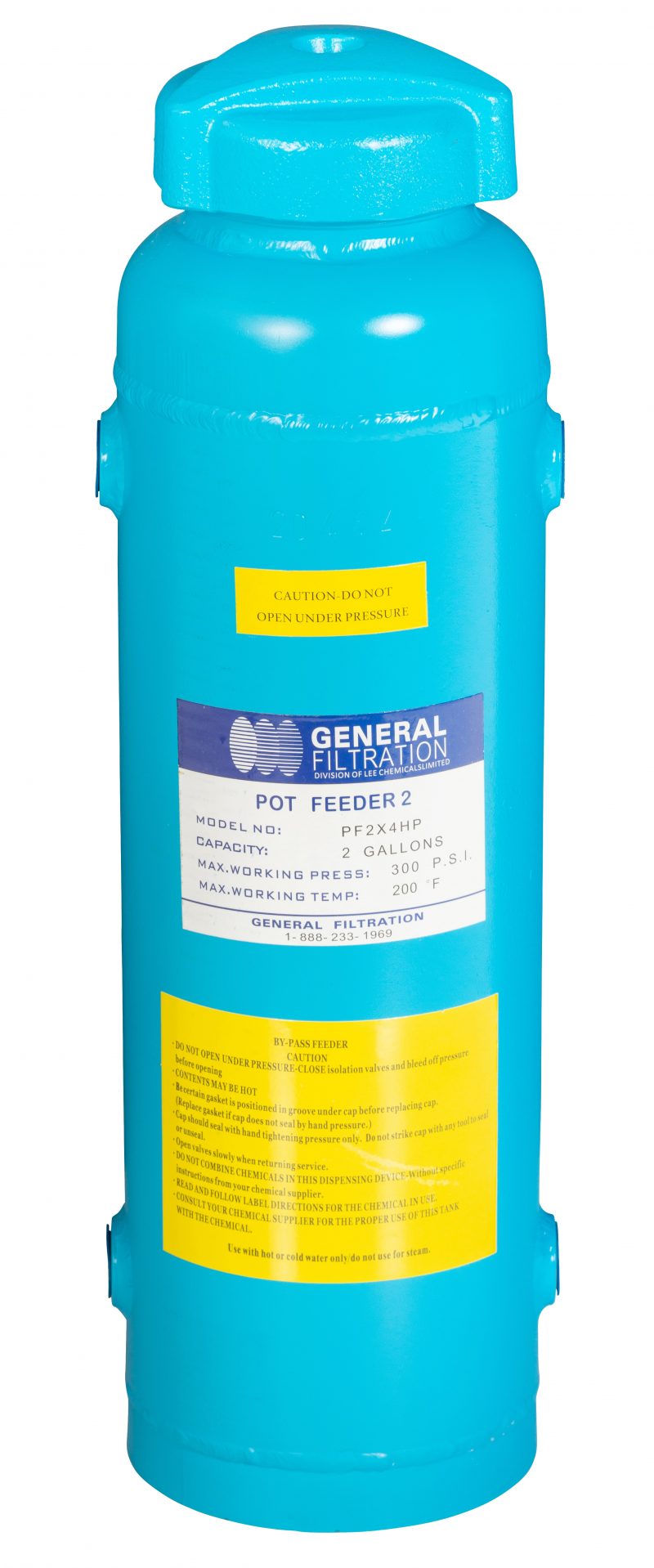

Bypass feeders provide a rugged and dependable means of introducing chemicals into closed loop liquid systems. They are widely used in hot  and chilled water systems. Available in two sizes, these units are compatible with essentially all existing hydronics installations.

Features & Benefits
• 2 gallon model constructed of 5 mm pipe with seamless body design
• 5 gallon model constructed of 6 mm rolled plate
• Blue epoxy finish
• 3.5" threaded closure high pressure cap for safety ad easy of access
• Domed bottom

Materials Of Construction
Head & Body: Carbon steel
O-ring: Buna-N

Connections
Four x 3/4” NPT connections (two upper and two lower)

Parameters
Maximum Operating Temperature and Pressure: 300 psi @ 200°F (93°C)
