FEATURES:

Pre-treatment included

• Wall mount vessels (2) 20-BB
• Sediment cartridge FM-BB-20-1
• Activated carbon cartridge WCBCFF20

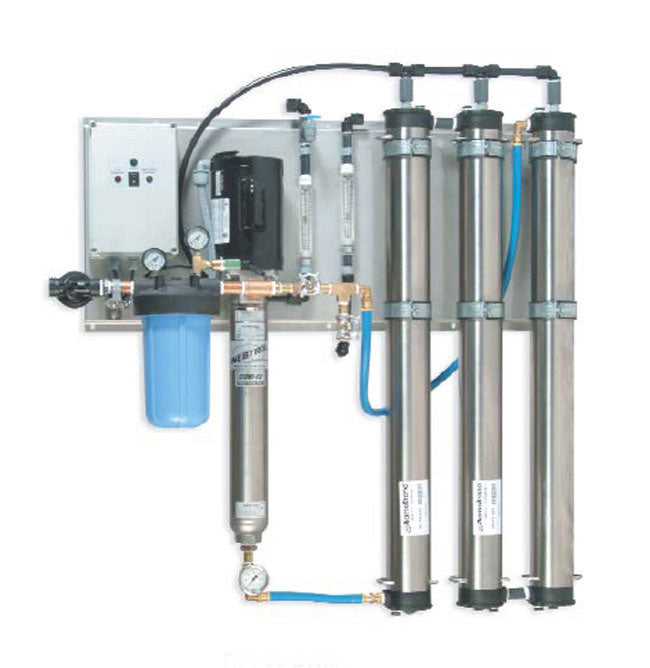

Reverse osmosis system, PUR-O-03 Series

• Wall mount stainless steel frame
• Pre-filter housing and cartridge, 10" Full-Flow
• Low-pressure shut-off with automatic restart
• Automatic inlet valve
• Pre-treatment interlock input
• Tank level input
• Pre-filter pressure gauges
• Webtrol® multi-stage centrifugal pump
• Pump discharge pressure gauge (liquid filled)
• Stainless steel pressure vessels
• Low pressure TFC Membrane with a nominal reject rate of 98 %
• Recovery rate up to 75 %
• Adjustable recycle line
• Check valve for product water
• Flow meter for product water and reject water
• Sample valve for product water
• On / off switch

Part NumberPermeate output GPD (25 C) Membranes size and number Dimensions(LxHxD)
PUR-O-03A-18001.800(1) 4’’ x 40’’41’’ x 51’’ x 18’’
PUR-O-03B-1800
PUR-O-03A-36003,600(2) 4’’ x 40’’41’’ x 51’’ x 18’’
PUR-O-03B-3600
PUR-O-03A-54005,400(3) 4’’ x 40’’41’’ x 51’’ x 18’’
PUR-O-03B-5400






Part NumberModel
PUR-O-FLLevel float
PUR-O-165Atmospheric storage tank, 165 gallons, with level float and GRUNDFOS MQ3 pump
PUR-O-300Atmospheric storage tank, 300 gallons, with level float and GRUNDFOS MQ3 pump
PUR-O-500Atmospheric storage tank, 500 gallons, with level float and GRUNDFOS MQ3 pump
