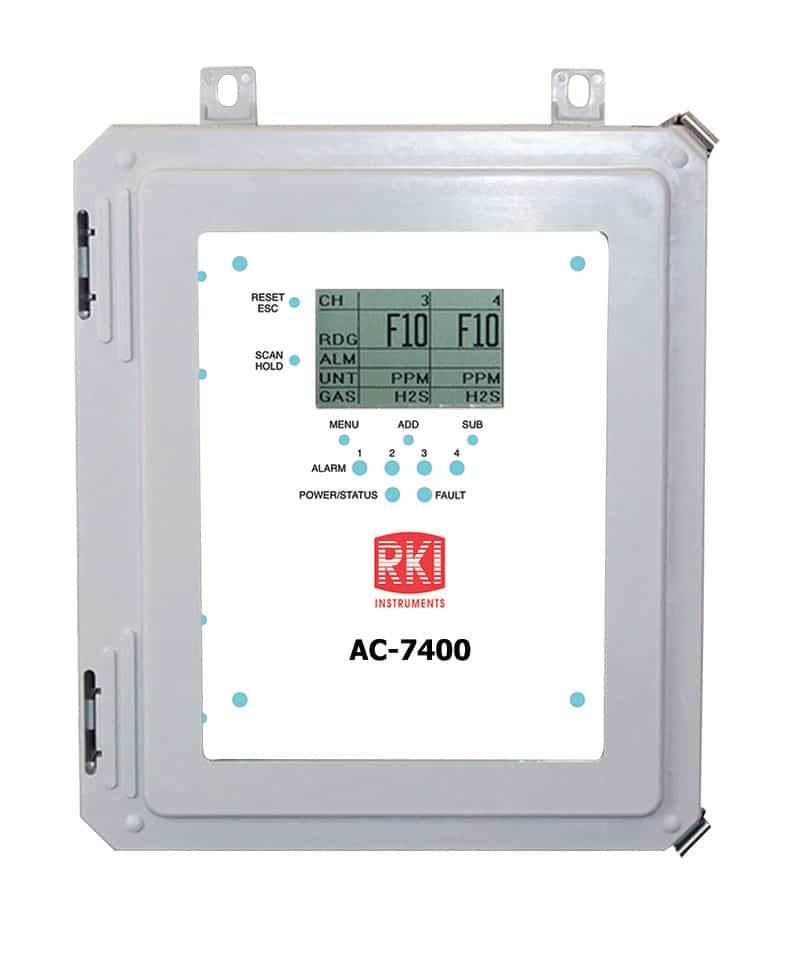

The RKI AC-7400 is a wired gas monitoring controller for up to 12 analog 4-20 mA sensors such as the M2A, S2, GD-70D, T2A, T3A and VOC Pro. Four individually configurable alarm relays, a sunlight-readable graphical LCD and RS-485 Modbus output come in a NEMA 4X enclosure, powered from 12 to 35 VDC or an optional AC supply.
- 12-channel wired monitor for any 4-20 mA wired sensor
- 12 to 35 VDC; optional 120 VAC power supply
- Operates from -40 to +70 °C
- Graphical LCD with LED backlight; 5 push-buttons including SCAN / HOLD and RESET
- 4 configurable alarm set points with 4 dry-contact relays (4 A each), latching or not
- Power and fault status LEDs; relay 4 can act as a fault relay
- RS-485 Modbus output; NEMA 4X fiberglass enclosure with clear window
- 1-year limited hardware warranty
DC or AC power is chosen when you order. Request a quote for pricing and availability.
Specifications
- Product Type
- 12-channel wired gas monitor controller
- Operating Voltage
- 12 to 35 VDC or 120 VAC
- Current Draw
- 300 mA max (8 channel) / 325 mA max (12 channel)
- Protection
- EMI filter; 4-20 mA, RS-485 and RS-232 surge suppression
- Display
- 160 x 104 graphical LCD, transflective, LED backlight
- Interface
- 5 push-buttons (MENU / ADD / SUB / SCAN-HOLD / RESET-ESC)
- Inputs
- 12 analog 4-20 mA
- Compatible Transmitters
- M2A, S2, GD-70D, T2A, T3A, VOC Pro
- Relays
- 4 dry-contact relays with 4 A replaceable fuses; fault terminal; latching or non-latching
- Temperature Range
- -40 to +70 °C
- Enclosure
- NEMA 4X with clear window
- Mounting
- 4 mounting feet, 6 x 12-1/4 in pattern, bolts up to 5/16 in
- Dimensions
- 12 x 10 x 6 in
- Weight
- 12.15 lb
- Warranty
- 1-year limited hardware
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
RKI Instruments · Gas Detection Controller| Spec | This model RKI AC-7400 12-Channel Analog Gas Detection ControllerPrice on quote
|  RKI MC-6400 64-Channel Modbus Gas Detection ControllerPrice on quote
|
|---|---|---|
| Channels | 12 | 64 |
| Relays | 4 | 4 |
| Power | 12 to 35 VDC | 12 to 35 VDC |
