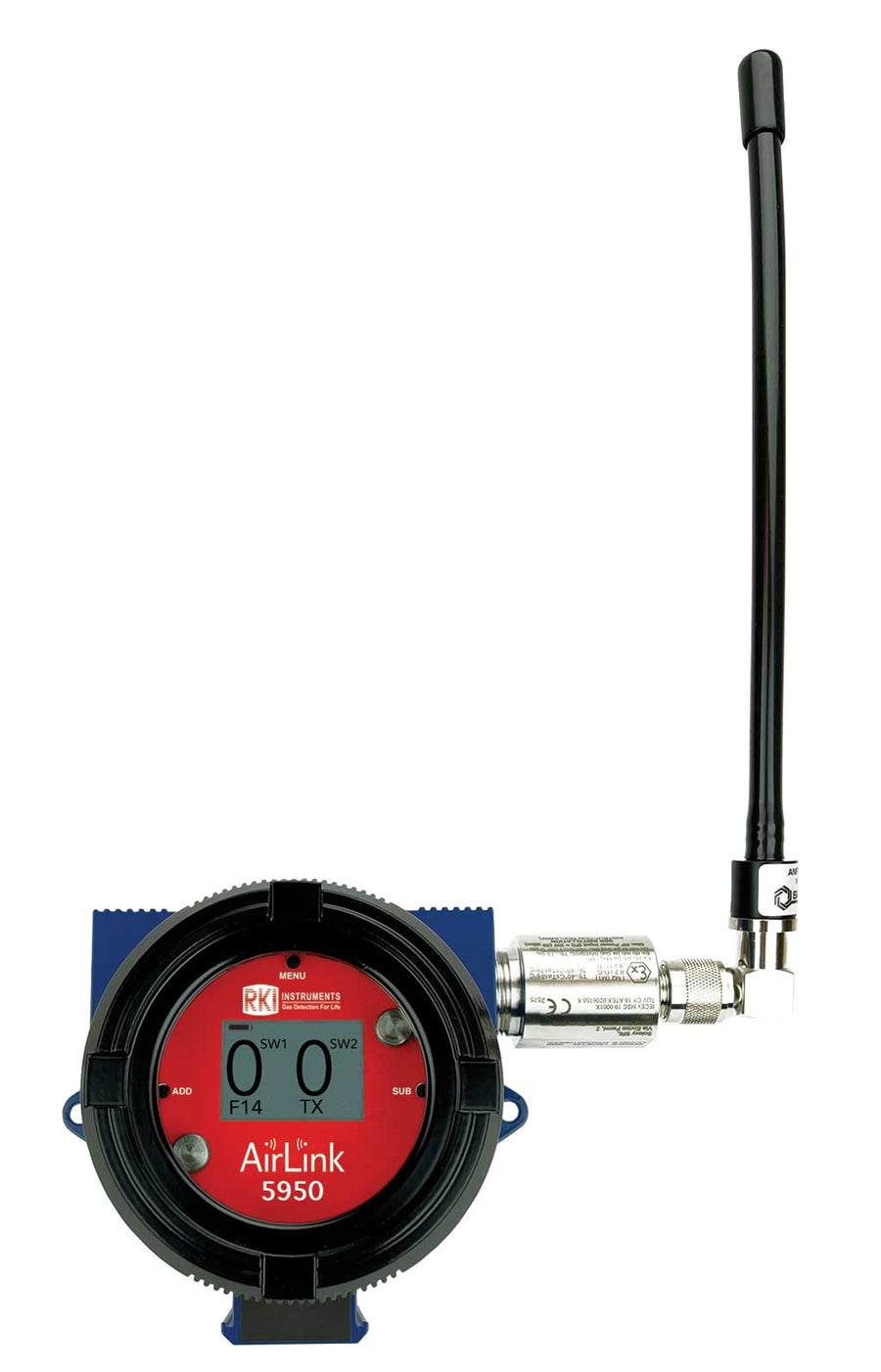

The RKI AirLink 5950 is a battery powered wireless transmitter for 1 or 2 dry contact switches. It sends each switch state to an AirLink controller, which can then drive its relays and Modbus output, and can report to several receivers in different locations.
- Connects up to 2 dry contact switches
- Battery powered: 3.6 V, 19 Ah
- Transmits every 2 minutes with no change and every 5 seconds on a change (user configurable)
- Can report to several receivers in different locations
- 900 MHz or 2.4 GHz radio, 255 addresses per network
- Sunlight readable 102 x 64 graphic LCD with LED backlight
- 3 magnetic, non-intrusive push-buttons
- QPS certified Class I Div 1 Groups C D
Choose the 900 MHz or 2.4 GHz radio to match your AirLink network. Request a quote for pricing and availability.
Specifications
- Input
- Up to 2 dry contact switches
- Power
- 3.6 V, 19 Ah battery
- Transmission
- Every 2 minutes with no change; every 5 seconds on a change (user configurable)
- Display
- 102 x 64 graphic LCD, transflective (sunlight readable), LED backlight
- Interface
- 3 magnetic non-intrusive push-buttons (MENU / ADD / SUB)
- Wireless Radio
- 900 MHz or 2.4 GHz ISM
- Networks
- 1-52 networks (900 MHz) or 1-78 networks (2.4 GHz), 1-255 addresses per network
- Operating Temperature
- -40 to +60 °C
- Certification
- QPS certified Class I Div 1 Groups C D
- Dimensions
- 5.42 x 6.03 x 12.16 in (L x D x H, max with attachments)
- Weight
- 4.8 lb
- Warranty
- 1 year limited
