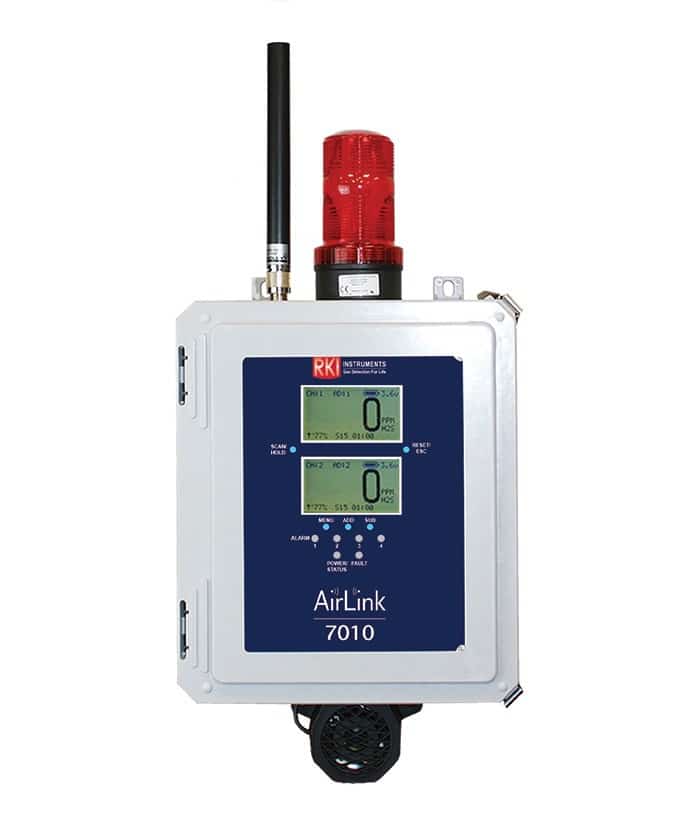

The RKI AirLink 7010 is a hybrid gas detection controller for up to 64 AirLink wireless gas detectors, 4 of whose channels can instead take wired 4-20 mA transmitters. It has two backlit LCDs, 4 alarm relays, RS-485 Modbus and a NEMA 4X enclosure.
- Up to 64 wireless sensor inputs; up to 4 channels can be wired 4-20 mA inputs
- 4 configurable alarm set points with 4 red alarm LEDs
- 4 dry-contact relays (4 A fused), latching or non-latching; relay 4 can be set as a fault relay
- RS-485 Modbus output and wet-contact fault terminal
- 900 MHz or 2.4 GHz radio
- 12 to 35 VDC, or AC with the optional power supply
- Two 128 x 64 graphic LCDs with LED backlight, 5 push-button interface
- NEMA 4X fiberglass enclosure with clear window (stainless steel available); optional strobe and horn
Built to order: choose the 900 MHz or 2.4 GHz radio, the AC power supply, a stainless steel enclosure and the strobe / horn. Request a quote for pricing and availability.
Specifications
- Product Type
- 32 and 64 channel hybrid gas monitor (wireless and wired)
- Inputs
- Up to 64 wireless sensor inputs; up to 4 can be 4-20 mA wired analog inputs
- Operating Voltage
- 12 to 35 VDC, or 120 VAC
- Current Draw
- 275 mA maximum at 24 VDC
- Power Supply (Optional)
- 3.13 A (75 W), 85-264 VAC to 24 VDC
- Protection
- EMI filter / 4-20 mA and RS-485 surge suppression
- Display
- 2 graphic LCDs, 128 x 64, transflective (sunlight readable), LED backlight
- Interface
- 5 push-buttons (MENU / ADD / SUB / SCAN-HOLD / RESET-ESC)
- Relays
- 4 dry-contact relays with 4 A replaceable fuses; full scale, normally open or closed, latching or non-latching; fault terminal
- Digital Output
- RS-485 Modbus
- Alarm Indication (Optional)
- Strobe light and horn mounted on the case (uses one relay)
- Wireless Radio
- 900 MHz or 2.4 GHz
- Networks
- 52 networks (900 MHz) or 78 networks (2.4 GHz), 255 addresses per network
- Antenna Connection
- External N-female RF connector
- Compatible Detectors
- Wireless: AirLink 6900, AirLink T3A, AirLink VOC Pro, AirLink Alert / wired 4-20 mA: M2A, S2, T3A, VOC Pro, Air Alert
- Operating Temperature
- -40 to +70 °C
- Enclosure
- NEMA 4X fiberglass with clear window (stainless steel available)
- Dimensions
- 10 x 8 x 6 in (L x D x H, max with attachments)
- Weight
- 8.2 lb
- Mounting
- 4 mounting feet included, 5/16 in (8 mm) maximum bolt size
- Made In
- USA
- Warranty
- 1 year limited hardware
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
RKI Instruments · Gas Detection Controller| Spec | This model RKI AirLink 7010 Wireless Gas Detection ControllerPrice on quote

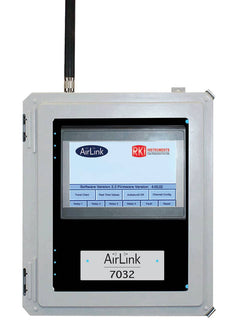

|  RKI AirLink 7032 Wireless Touchscreen Gas Detection ControllerPrice on quote

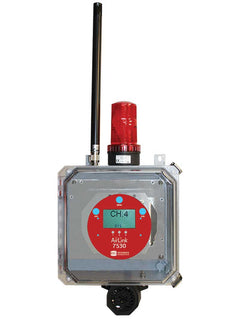

|  RKI AirLink 7530 Wireless Gas Alarm Relayer (XP / Non-XP)Price on quote
|
|---|---|---|---|
| Wireless Inputs | 64 | 64 | 32 |
| Relays | 4 | 4 | 3 |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
Related equipment we stock

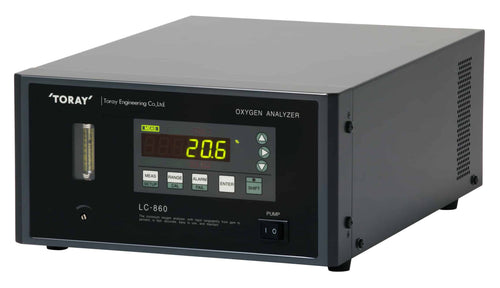

Toray LC-860 High-Function Oxygen Analyzer
