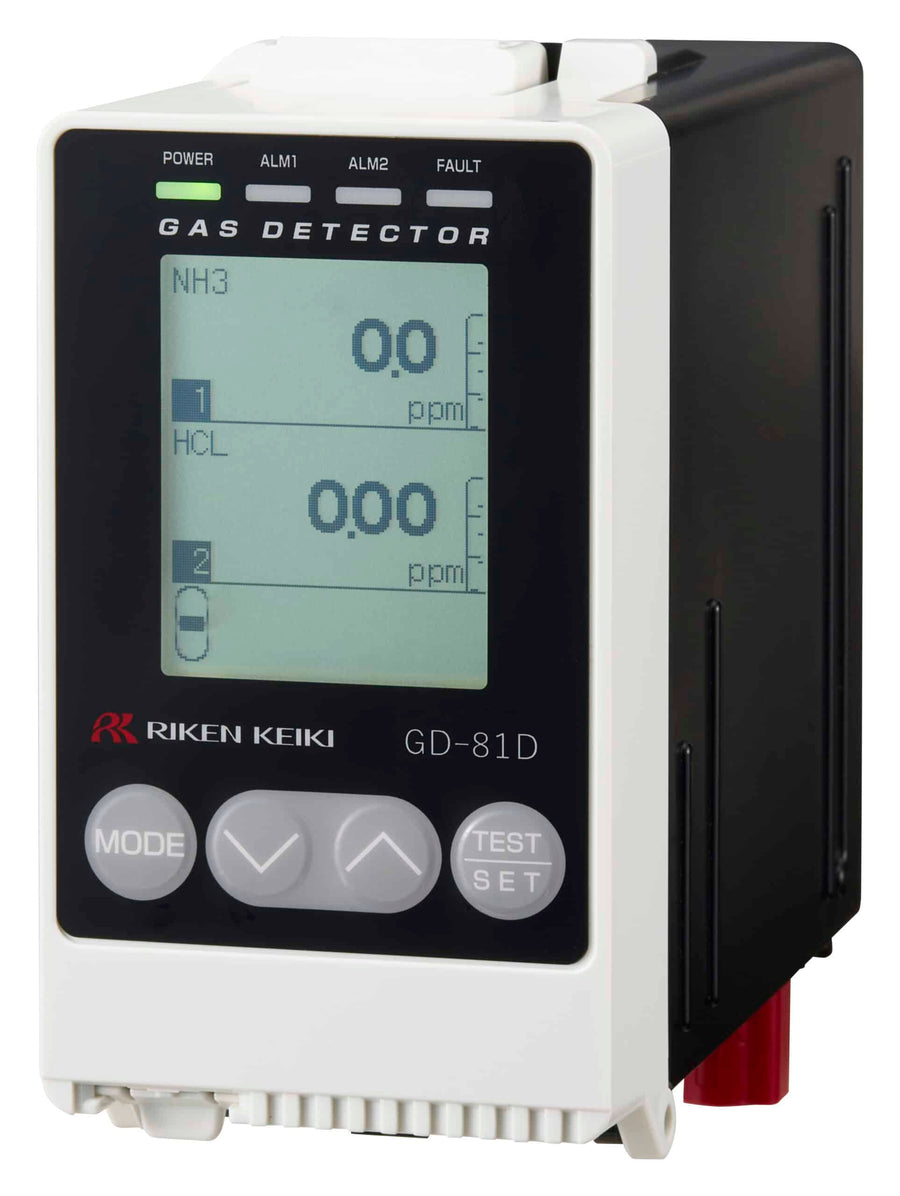

The RKI GD-81D is a wall-mounted sample-draw gas detector for combustibles, oxygen, carbon dioxide and a wide range of toxic gases, including vaporized hydrogen peroxide. Plug-and-play smart sensors keep their calibration data, one unit can monitor two toxic gases, and it accepts more than 300 sensors from the GD-70D series.
- Monitors combustibles, O2, CO2 and a wide range of toxic gases, including VHP
- M sensor unit monitors two toxic gases in one detector
- Accepts more than 300 existing GD-70D series sensors
- Plug-and-play smart sensors retain calibration and sensor data
- Auto flow adjustment keeps sampling stable when a filter clogs
- Quiet low-vibration RP-80 pump; push-in quick tube connections
- Front access, tool-free sensor and pump replacement; large LCD
- Outputs: 4-20 mA analog (2- or 3-wire) or Ethernet with PoE (GD-81D-ETD)
The sensor unit (U, F or dual-gas M) and target gases are chosen when you order. Request a quote for pricing and availability.
Specifications
- Detection Principles
- Catalytic combustion / semiconductor / hot-wire semiconductor / electrochemical / galvanic cell / infrared / pyrolysis
- Target Gases
- Combustible gas, toxic gas, oxygen, carbon dioxide
- Detection Method
- Pump suction, approx. 0.5 L/min, auto flow control
- Display
- Full-dot display with gas name, flow, mode; white backlight
- Gas Alarm
- Two-step (H-HH; L-LL for oxygen), auto reset or self-latching
- Alarm Contacts
- No-voltage contacts 1a / 1b for ALM1 / ALM2 / fault, 24 VDC 0.5 A
- Transmission
- GD-81D: 3-wire or 2-wire analog 4-20 mA / GD-81D-ETD: Ethernet 10BASE-T / 100BASE-TX
- Power Supply
- 24 VDC ± 10 % (GD-81D-ETD: 24 VDC or PoE)
- Power Consumption (ESU / ESF sensors)
- GD-81D approx. 1.5 W, max. 4.0 W / GD-81D-ETD 24 VDC 2.5 W, PoE 3.5 W
- Tube Ports
- One-touch quick connect, PTFE tube 6 x 4 mm (1/4 x 1/8 in)
- Functions
- Alarm delay, suppression, zero follower, flow control, adjustment, alarm trend and event history
- Operating Conditions
- -10 to +40 °C / 0-95 % RH non-condensing
- Construction
- Wall mounted; black main unit, white front door
- Warranty
- 1 year (RKI warranty policy)
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
