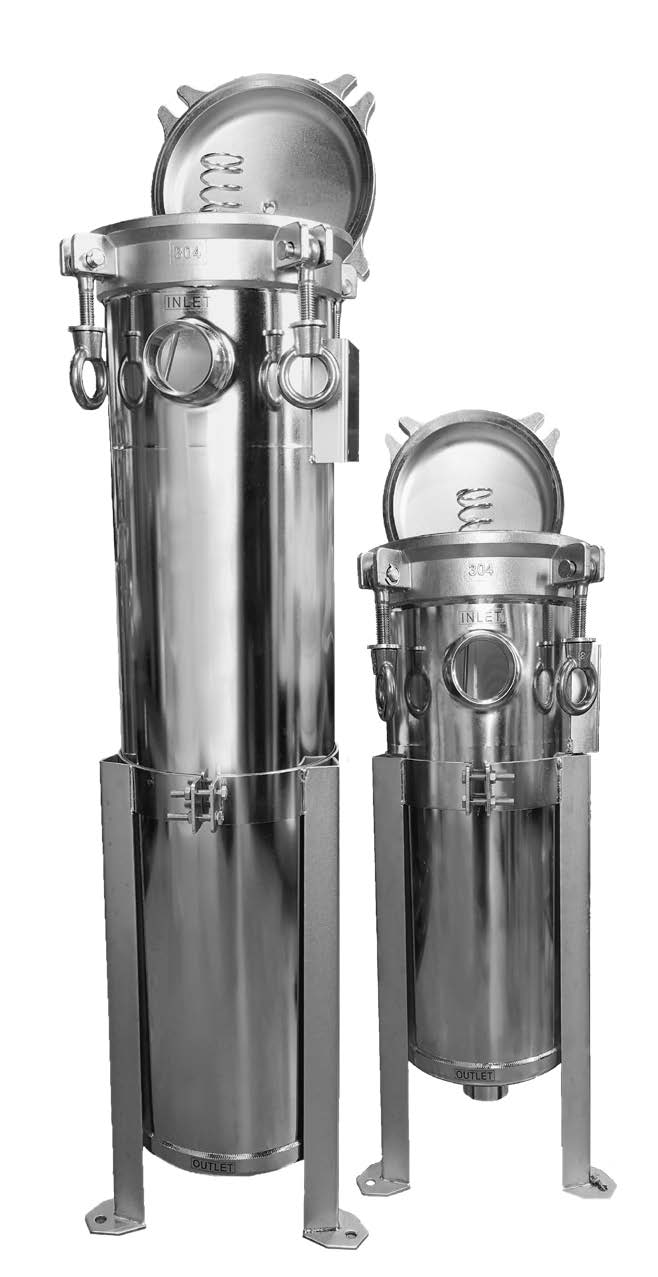

Great for many industrial applications. Also available in a custom made sanitary finish for pharmaceutical and food grade applications. ERE INC also manufactures filter bags which are sold separately.

Features

• Available in a 90 GPM and a 180 GPM
• Available in 304 and 316 Stainless Steel

Applications

• Petrochemical
• Construction
• Cosmetic
• Medical
• Textile
• Food
• Pharmaceutical
• Wastewater
• Beverage
• etc...

Accessories

•  OBS-GO-0-030PP:  0-30 PSI Pressure Gauge ¼" Connection
•  OBS-GO-0-060PP:  0-60 PSI Pressure Gauge ¼" Connection
•  OBS-GO-0-100PP:  0-100 PSI Pressure Gauge ¼" Connection
•  WA-FV-4M1-1/4:  Automatic Air Vent ¼" Connection
•  ERS-247-EPDM:  EPDM O-ring
•  ERS-247-BUNA:  BunaO-ring

Part NumberSize Bag Size In/Out Max Pressure Flow Material
 ERS-90-SE-SS304-2FPT 10" Ø-32”H 7" Ø-17”H (#1) 2" FNPT 225 PSI 90 GPM 304 Stainless
 ERS-90-SE-SS316-2FPT 10" Ø-32”H 7" Ø-17”H (#1) 2" FNPT 225 PSI 90 GPM 316 Stainless
 ERS-180-SE-SS304-2FPT 10" Ø-40”H 7" Ø-32”H (#2) 2" FNPT 225 PSI 180 GPM 304 Stainless
 ERS-180-SE-SS316-2FPT 10" Ø-40”H 7" Ø-32”H (#2) 2" FNPT 225 PSI 180 GPM 316 Stainless
Model Item Quantity Unit Price Line Total
304 Stainless 90 GPM - Sampson High Pressure Bag Filter Housings
$ 0.00
316 Stainless 90 GPM - Sampson High Pressure Bag Filter Housings
$ 0.00
304 Stainless 180 GPM - Sampson High Pressure Bag Filter Housings
$ 0.00
316 Stainless 180 GPM - Sampson High Pressure Bag Filter Housings
$ 0.00
$ 0.00
