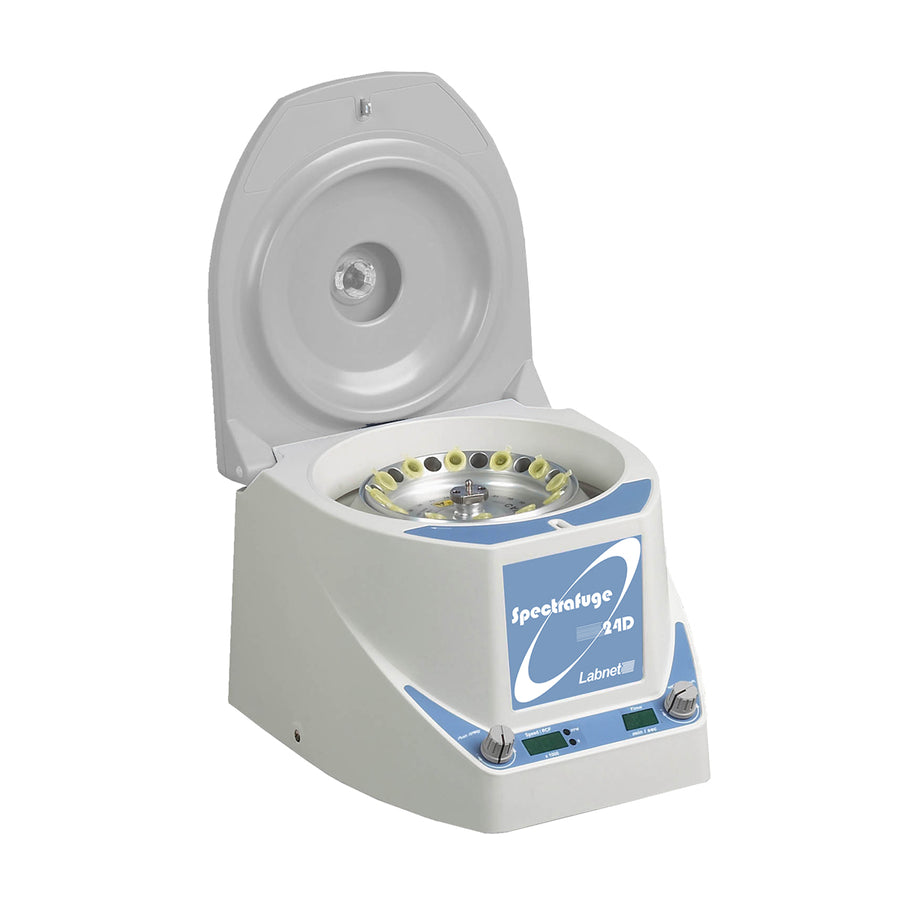

Spectrafuge™ 24D

The Spectrafuge™ 24D combines innovations such as a unique, easy access rotor, exclusive multi-flow air cooling system and high performance drive with a digital microprocessor that precisely regulates operation.

Parameters are selected with two "smart" knobs and values are shown on large, easy to read, LED displays. Speed can be set and displayed in rpm or g-force while runs may be timed, continuous or momentary. The unique design of the 24-place rotor allows easy access to the tops of the tubes. An optional StripSpin™ adapter fits onto the rotor for spinning 0.2 ml tubes and strips. A powerful, brushless motor quickly accelerates the rotor to set speed.

Air enters the centrifuge through vents on the back of the housing and is circulated in multiple directions to maximize cooling. The result is a cool running microcentrifuge that keeps samples close to ambient temperature, even during extended runs at maximum speed. For samples that require below ambient temperatures, the Spectrafuge™ 24D may be used in a cold room.

SpecificationsSpectrafuge™ 24D
Speed Range500 rpm to 13,300 rpm
Maximum RCF16,300 x g
Maximum Capacity24 x 1.5 / 2.0 ml
Timer1 to 30 minutes or continuous "Quick" button
for momentary operation
Ambient Operating Range4° to 35°C
Dimensions (W x D x H)9.25" x 11.5" x 8.5" (23.5 x 29.3 x 21.6 cm)
Weight18 lbs (8.1 kg)
Electrical230 V-, 50 Hz or 120 V-, 60 Hz

230 V also available upon request.

Color preference add letter to the end of the part number.
(B = Blue, T = Teal, P = Purple, R = Red)
