Applications
• Environmental monitoring
• Soil contamination detection
• VOCs in landfill
• IAQ measuring industrial volatiles
• Leakage in fuel & chemical storage
• Health & Safety
• STEL & TWA monitoring
• Confined space entry
• First response (screening)
• Wing tank entry
• VOC leak detection
• Fumigation gases
• Fugitive emissions
• Medical gases in hospitals
• Fire and Arson investigation
Features
• Available in two distinct variants: ppm and ppb
• Detection Range:
• Tiger ppm model: 0.1 - 20,000 ppm
• Tiger ppb model: 1 ppb - 20,000 ppm
• Optional software upgrade from ppm to ppb
• Lamp
• Tiger ppm and Tiger ppb models: 10.6 eV (standard)
• 10.0 eV and 11.7 eV (optional also available)
• Patented humidity resistance technology to 99% RH – no compensation needed
• Push-to-log and multi-logging stores up to 120,000 data points including date/time
• Internal gas table with over 700 VOCs and toxic compounds
• Flashing LED & audible alarm
• Selectable vibrating alarm
• Pre-programmed TWA & STEL alarm* (only available for ppb model)
• Factory calibration mode available
• Certifications: ATEX, IECEx, CSA - Intrinsically Safe
Kit Includes

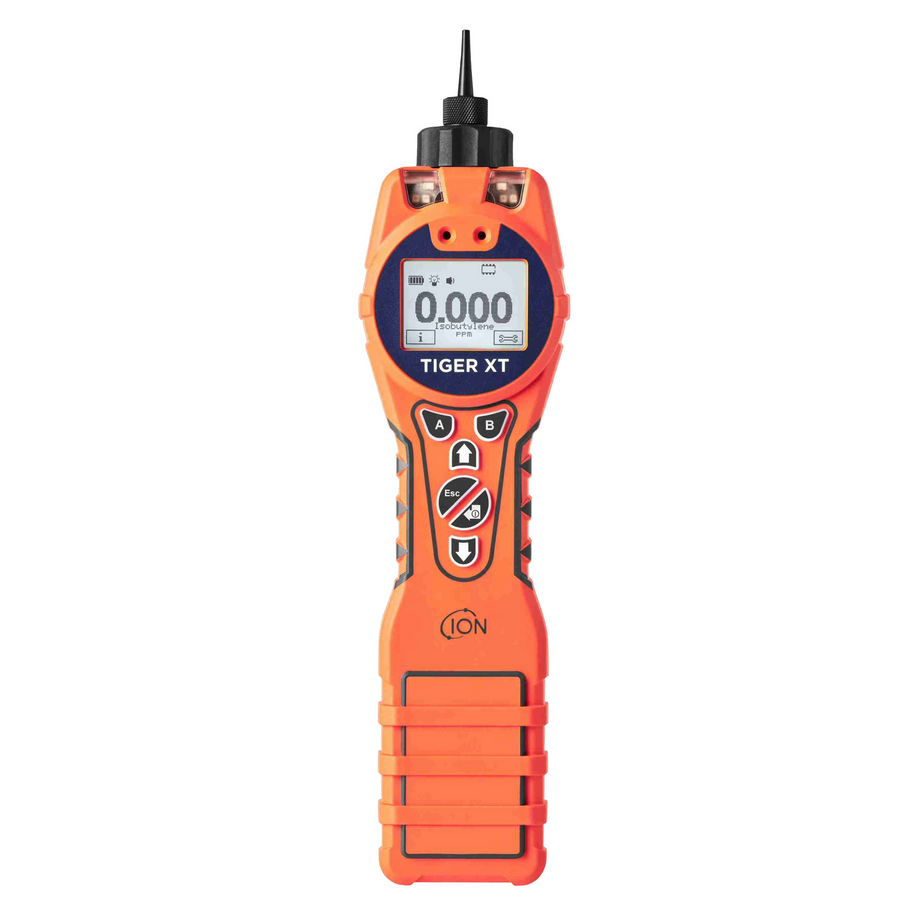

• Tiger XT instrument (PPM or PPB) with rubber boot
• Lanyard (wrist strap)
• PTFE filter disc (dust filter)
• Carbon zero filter assembly
• PID lamp cleaning kit
• Removal tool MiniPID stack
• Calibration Adaptor
• USB cable
• Li-ion rechargeable battery
• Battery charger
• Mains adaptor
• Explorer case
* Used to calibrate for ppb measurements
** Used to calibrate for ppm measurements
Part Number | Description | Model | Detection Range | PID Lamp | Fence Electrode | Calibration Equipment |
IS-TXXXSLBMP-0005 | Tiger XT PPM/H&S/ Data Logging | PPM | 0.1 - 20,000 ppm | 10.6 eV | Electrode Stack White | • NLB-H1055100PA • NLB-414 or NLB-417 |
IS-TXXESLBMP-0005 | Tiger XT PPM/H&S/ Data Logging | PPM | 0.1 - 20,000 ppm | 11.7 eV | Electrode Stack White | • NLB-H1055100PA • NLB-414 or NLB-417 |
IS-TXXXSLBMP-0007 | Tiger XT PPB/H&S/ Data Logging | PPB | 1 ppb - 20,000 ppm | 10.6 eV | Electrode Stack White | • NLB-H105510PA* • NLB-H1055100PA** • NLB-414 or NLB-417 |
*Other accessories also available
Accessories & Calibration Equipment | |
Part Number | Description |
IS-A-861632 | Premium PTFE Filters, 10/Pack |
NLB-H105510PA | Calibration Gas 10 PPM Isobutylene In Air, 34 Liter Steel Cylinder With CGA 600 |
NLB-H1055100PA | Calibration Gas 100 PPM Isobutylene In Air, 34 Liter Steel Cylinder With CGA 600 |
NLB-414 | 0.3 LPM Regulator With Gauge & Knob For Cylinders With CGA 600 |
NLB-417 | 0.5 LPM Regulator With Gauge & Knob For Cylinders With CGA 600 |
