Government of QuébecOverview
Applications
• Environmental monitoring
• Soil contamination detection
• VOCs in landfill
• IAQ measuring industrial volatiles
• Health & Safety
• Confined space entry
• First response (screening)
• Wing tank entry
• VOC leak detection
• Fumigation gases
• Fugitive emissions
• Medical gases in hospitals
• Fire and Arson investigation
Features
• Detection range: 0.1 - 5,000 ppm
• Lamp:
• 10.6 eV (standard)
• 10.0 eV and 11.7 eV (optional also available)
• Patented humidity resistance technology to 99% RH - no compensation needed
• Push-to-log data logging store up to 80,000 data points in up to 128 user selectable zones
• User selectable response factors for direct concentration readout
• Flashing LED & audible alarm
• Selectable vibrating alarm
• Factory calibration mode available
• Certifications: ATEX, IECEx, CSA - Intrinsically Safe
Standard Kit Includes

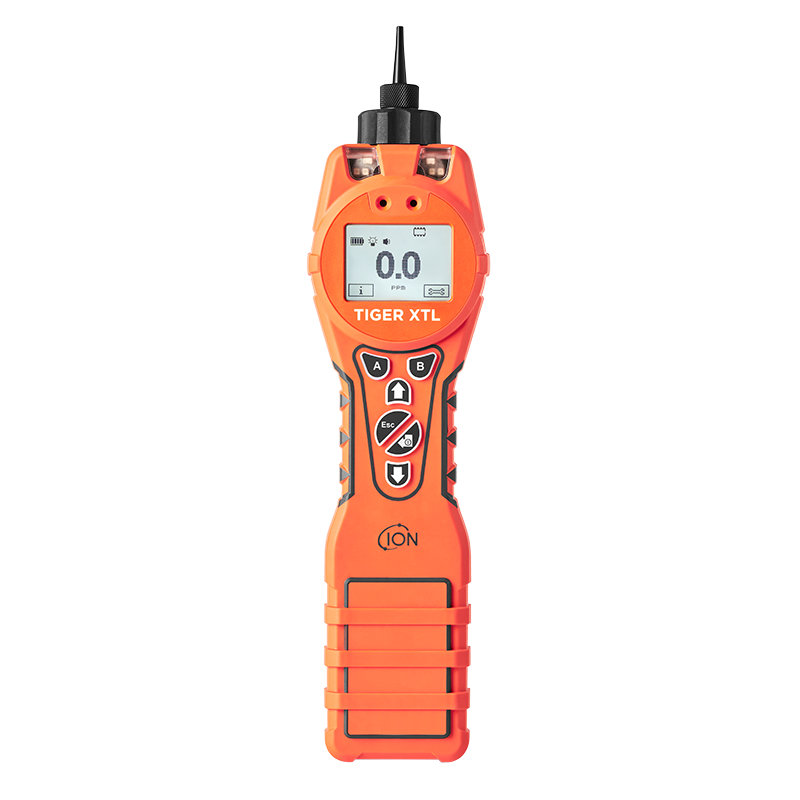

• Tiger XTL instrument with rubber boot
• PTFE filter disc (dust filter)
• PID lamp cleaning kit
• Removal tool MiniPID stack
• Li-ion rechargeable battery
• Battery Charger
• Mains adaptor
• USB cable
• Compact case
Premium Kit Includes
• Tiger XTL instrument with rubber boot
• Lanyard (wrist strap)
• PTFE filter disc (dust filter)
• Carbon zero filter assembly
• PID lamp cleaning kit
• Removal tool MiniPID stack
• Calibration adaptor
• USB cable
• Li-ion rechargeable battery
• Battery Charger
• Mains adaptor
• Explorer case
*Other accessories also available
| Accessories & Calibration Equipment | |
| Part Number | Description |
| IS-A-861632 | Premium PTFE Filters, 10/Pack |
| NLB-H1055100PA | Calibration Gas 100 PPM Isobutylene In Air, 34 Liter Steel Cylinder With CGA 600 |
| NLB-414 | 0.3 LPM Regulator With Gauge & Knob For Cylinders With CGA 600 |
| NLB-417 | 0.5 LPM Regulator With Gauge & Knob For Cylinders With CGA 600 |
Compare models
Your selection is highlighted. Select a row to switch.| Part Number | Description | Detection Range | PID Lamp | Fence Electrode | Calibration Equipment |
| IS-TXLLSLBMR-0000 | Tiger XTL With Standard Kit | 0.1 - 5,000 ppm | 10.6 eV | Electrode Stack Orange | • NLB-H1055100PA • NLB-414 or NLB-417 |
| IS-TXLLSLBMP-0000 | Tiger XTL With Premium Kit | 0.1 - 5,000 ppm | 10.6 eV | Electrode Stack Orange | • NLB-H1055100PA • NLB-414 or NLB-417 |
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
