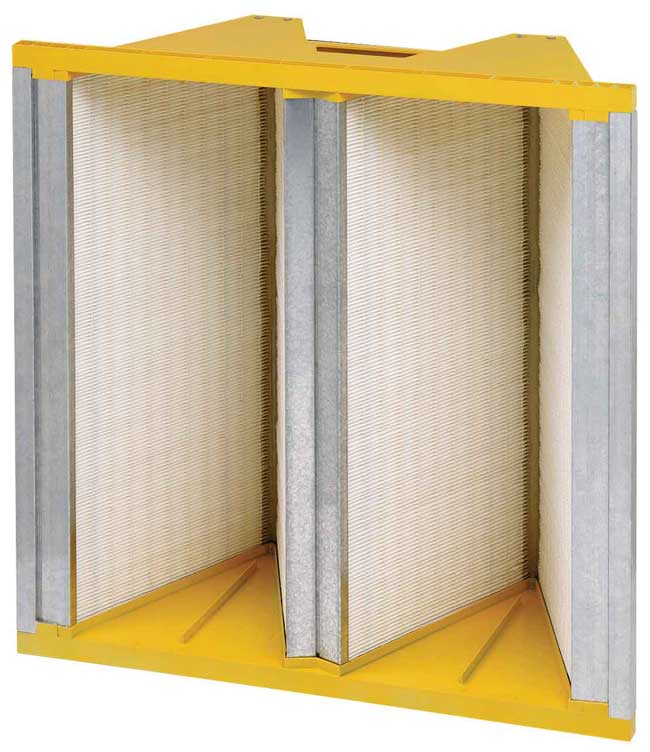

Titan FP Filter

Features
• State-of-the-art rigid filtration
• Lightweight design
• High efficiency per ASHRAE 52.2
• Designed for use in Variable Air Volume (VAV) and constant velocity systems
• Aerodynamic design
• Integral handle for ease of transportation
• Suitable for high humidity
• UL 900 Class 2, (UL 900 Class 1 optional)

 Application Parameters
• Maximum Constant Temperature: 150°F
• Flammability: UL 900 Class 2, UL 900 Class 1 (consult factory)
• Media: Wet Laid Microglass • Relative Humidity: 100%
• Recommended Final
• Pressure Drop: 1.5" w.g.


TITAN FP (24" x 24" x 12")

MERV 11

MERV 13

MERV 14

Air Flow (cfm)

1500 2000 2500

1500 2000 2500

1500 2000 2500

Initial Pressure Drop (" w.g.)

0.17 0.27 0.39

0.30 0.49 0.64 0.37 0.52 0.67
Comparable Atmospheric Efficiency
(ASHRAE 52.1) @ 2000 cfm
60 - 65% 80 - 90% 90 - 95%
Model Item Quantity Unit Price Line Total
DF-41252 - Titan FP Filter
$ 0.00
DF-41254 - Titan FP Filter
$ 0.00
DF-41256 - Titan FP Filter
$ 0.00
DF-41258 - Titan FP Filter
$ 0.00
DF-41260 - Titan FP Filter
$ 0.00
DF-41262 - Titan FP Filter
$ 0.00
$ 0.00
