1 / 3
What Do I Need?

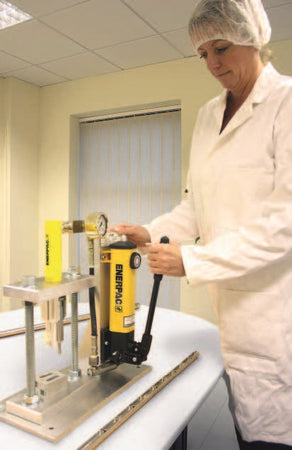

1. The UD Tablet Machine (see below)
2. Special spilt sample cells (see below)
3. The correct tablet punches for the spilt sample cells (see table below)
4. Sampler - see Standard U-D Master
5. Pressure gauge 5k or 10k PSI
| Part Number | Description | Size |
| SS-1230TABLET | Tablet Compression Machine - Manually Operated | 200mm x 400mm x 400mm High |
* Split Sample Inserts are available in 0.1 ml increments from 0 to 3ml
*Part # is 1230T-XXS (where XX = cell volume
*For example - the part # for 1.2ml and 0.5ml respectively are : 1230T-12S and 1230T-05S
| Part Number | Description |
| SS-12030P-01 | Punch For Use With 0.1ml Spilt Sample Inserts |
| SS-12030P-02 | Punch For Use With 0.2ml Spilt Sample Inserts |
| SS-12030P-03 | Punch For Use With 0.3, 0.4, 0.5 and 0.6ml Spilt Sample Inserts |
| SS-12030P-07 | Punch For Use With 0.7, 0.8, 0.9, 1.0 and 1.1ml Spilt Sample Inserts |
| SS-12030P-12 | Punch For Use With 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9 and 2.0ml Spilt Sample Inserts |
| SS-12030P-21 | Punch For Use With 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9 and 3ml Spilt Sample Inserts |
