Every environmental site assessment in Canada hinges on sampling — the quality of your data depends directly on the equipment you use to collect it. Whether you are advancing boreholes for a Phase II ESA, purging monitoring wells, or collecting air samples at a remediation site, the right sampling equipment determines whether your results hold up under regulatory scrutiny. This guide covers the full range of environmental sampling equipment Canadian consultants and contractors rely on — from soil core samplers and sand augers to bailers, groundwater sampling pumps, and air monitoring tools — with guidance on selecting equipment by project phase and regulatory context.

Soil Sampling Equipment: Augers, Core Samplers, and Split Spoons

Soil sampling is the foundation of every Phase II ESA. The choice between auger types, soil core samplers, and split spoon samplers depends on the geology, target depth, and whether you need intact or disturbed samples.

Sand Augers and Mud Augers

Hand augers are the starting point for shallow soil investigations in unconsolidated materials. A sand auger uses an open-barrel design that retains loose, granular soils during extraction — the cutting head prevents sand from falling out of the barrel as you withdraw. Mud augers (also called clay augers) use a closed or Dutch-pattern head designed for cohesive, wet soils that would otherwise stick in an open barrel.

ERE stocks sand augers and mud augers in standard diameters (2″, 3″, 4″) with extension rods in 3-foot and 5-foot sections. For most Phase II work in Canadian tills and alluvial deposits, a 3″ sand auger with 15 feet of extensions covers the typical 0–5 m investigation depth. Switch to a mud auger below the water table or in lacustrine clays.

Browse soil sampling augers and accessories →

Soil Core Samplers

When intact soil structure matters — contaminant distribution studies, geotechnical logging, or volatile organic compound (VOC) sampling where soil disturbance causes losses — you need a soil core sampler. Core samplers drive a thin-walled tube into the ground and extract an undisturbed column of soil that preserves stratigraphy and contaminant concentration gradients.

For environmental work, the most common configuration is a stainless steel or acetate liner core sampler that accepts disposable liners. This allows you to seal the liner directly for laboratory submission without handling the sample, reducing both cross-contamination risk and VOC volatilization losses. ERE carries core samplers compatible with standard 1.5″ and 2″ liner diameters.

Split Spoon Samplers

The split spoon sampler (2″ OD, 1.375″ ID) is the standard ASTM D1586 device used during hollow-stem auger drilling. It yields both a soil sample for laboratory analysis and Standard Penetration Test (SPT) blow counts for geotechnical characterization. If you are running a Phase II ESA with a drill rig, split spoons are the default soil sampling method at discrete depth intervals.

ERE stocks split spoon samplers, drive shoes, and replacement parts. For larger-diameter sampling or continuous coring, ask about Shelby tubes and piston samplers.

View all soil sampling equipment →

Groundwater Sampling: Bailers, Pumps, and Low-Flow Technique

Groundwater sampling is the second pillar of Phase II and Phase III investigations. Equipment selection directly affects sample representativeness, and provincial regulators in Canada (Ontario MOE, MELCCFP in Quebec, Alberta Environment) all specify acceptable sampling methods in their technical guidance documents.

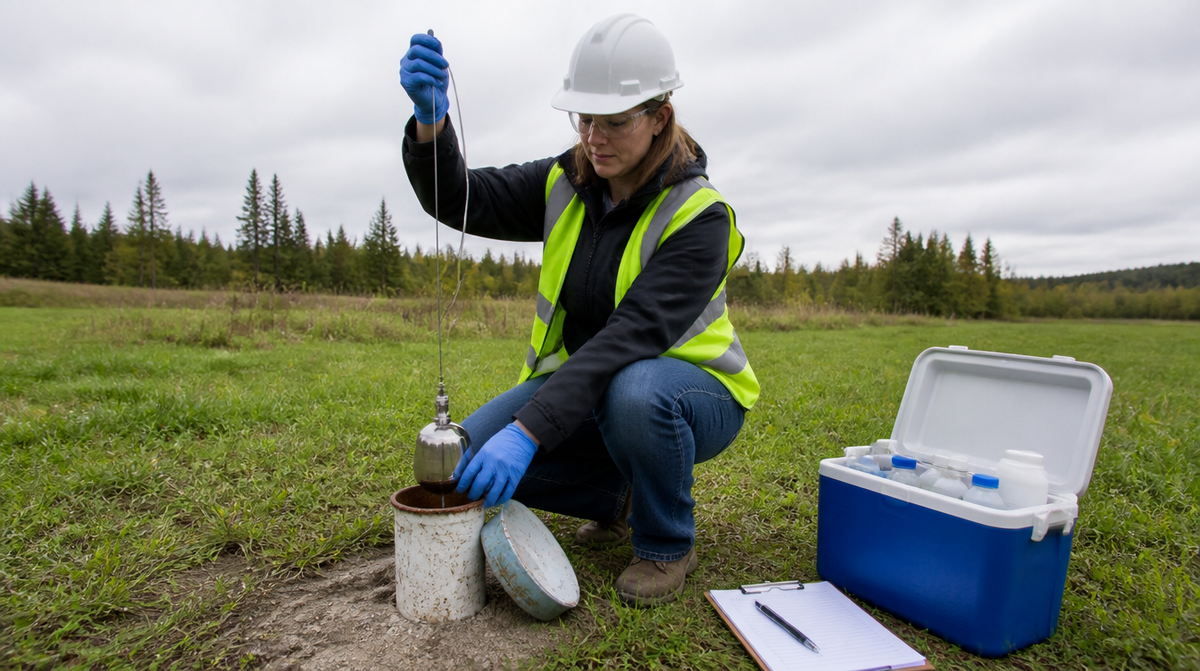

Bailers: The Most Widely Used Grab Sampler

A bailer is a hollow tube with a check valve at the bottom that collects a discrete grab sample from a monitoring well. You lower the bailer on a cord, it fills from the bottom, and the check valve retains the sample as you withdraw it. Bailers are the simplest, most portable, and most cost-effective groundwater sampling tool — no power source, no tubing, no pump maintenance.

ERE carries bailers in several configurations:

• Disposable PVC bailers — single-use, eliminating decontamination between wells. Available in 1″, 1.5″, and 2″ diameters to match standard monitoring well casing sizes. The most popular choice for Phase II ESA sampling where cross-contamination avoidance is critical.
• Reusable stainless steel bailers — for long-term monitoring programs where decontamination is part of the standard operating procedure. More durable and cost-effective over hundreds of sampling events.
• PTFE (Teflon) bailers — required when sampling for trace organics where PVC may sorb or leach target analytes.
• Weighted bailers and bottom-emptying bailers — for DNAPL investigations or when you need controlled sample transfer to laboratory containers.

When to use bailers: Bailers are appropriate for initial grab sampling, well purging verification, free-product checks, and field screening. They are fast, disposable (PVC), and require zero setup time — a single technician can sample 20+ wells per day with disposable bailers and pre-cut cord.

When to use pumps instead: Low-flow sampling protocols (now the standard for long-term monitoring under most Canadian provincial guidance) require a pump to maintain a steady, low drawdown rate. Bailers agitate the water column and can bias results for dissolved metals and volatiles. Use bailers for grab sampling and initial screening; switch to peristaltic or bladder pumps for low-flow compliance sampling.

Shop bailers — disposable PVC, stainless steel, and PTFE →

Peristaltic Pumps

Peristaltic pumps are the workhorse for low-flow groundwater sampling at shallow to moderate depths (practical lift limit around 8 m / 25 ft). The pump head squeezes flexible tubing in a rolling action — the sample only contacts the tubing, never the pump mechanism. This makes decontamination simple (swap the tubing) and eliminates the risk of pump-introduced contamination.

For low-flow sampling per CCME and Ontario MOE Technical Guidance (2017 update), you target a flow rate of 100–500 mL/min while monitoring stabilization parameters (pH, conductivity, dissolved oxygen, ORP, turbidity) with a flow-through cell. Peristaltic pumps with variable speed controllers make it straightforward to dial in and maintain these rates.

ERE stocks portable peristaltic pumps suitable for field use, along with silicone and C-Flex tubing in standard diameters. For deeper wells beyond the suction lift of a peristaltic pump, switch to a bladder pump.

Bladder Pumps

Bladder pumps are dedicated for groundwater sampling at depths exceeding peristaltic suction limits. A compressed-gas-driven bladder inside the pump inflates and deflates to push sample up the discharge line, delivering a non-agitated, representative sample from wells as deep as 60+ m. Bladder pumps are considered the gold standard for low-flow sampling of volatiles and dissolved gases because the sample never contacts air or moving parts.

The trade-off is cost, weight, and setup complexity — you need a controller, a compressed gas supply (nitrogen or air), and dedicated tubing per well for dedicated installations. For multi-well monitoring programs, many consultants install dedicated bladder pumps in critical wells and use portable peristaltic pumps for the remainder.

View groundwater sampling pumps and accessories →

Surface Water and Liquid Sampling Equipment

Surface water sampling for environmental assessments — stormwater outfalls, effluent discharges, receiving water bodies, sediment pore water — requires different equipment than groundwater work. The key considerations are depth control, sample volume, and whether you need a grab or composite sample.

Discrete-Depth Water Samplers

Horizontal and vertical water sampling bottles (Van Dorn, Kemmerer, and similar designs) collect a grab sample at a specific depth. The sampler is lowered open, triggered at the target depth, and retrieved sealed. These are standard for lake, river, and effluent sampling where depth-specific data is required.

Swing Samplers and Dip Samplers

For sampling from bridges, platforms, or elevated discharge points, swing samplers on extendable poles provide safe reach without confined-space entry. Dip samplers (also called pond samplers) are pole-mounted bottles for collecting surface grabs from shoreline or tank edges.

Water Sampling Pumps

When you need large volumes or composite samples over time, a water sampling pump (submersible or peristaltic) paired with a flow-proportional controller is the standard approach. ERE stocks portable submersible pumps and tubing kits suitable for field deployment at outfall and effluent monitoring stations.

Browse water and liquid sampling equipment →

Air Sampling Equipment: Personal Pumps and Area Monitors

Air sampling is a component of many Phase II ESAs (soil vapour, indoor air quality), remediation monitoring (SVE system performance, perimeter air), and occupational health assessments. Equipment divides into personal air sampling pumps worn by workers and area sampling devices positioned at fixed locations.

Personal Air Sampling Pumps

Personal pumps draw air through a sampling medium (sorbent tube, filter cassette, impinger) at a calibrated flow rate, typically 1–5 L/min for gas/vapour sampling or 1–4 L/min for particulate. ERE carries pumps from Gilian (now Sensidyne) and Buck — two of the most widely deployed brands in Canadian industrial hygiene and environmental consulting. Key features to look for: intrinsically safe rating for hazardous atmospheres, constant-flow compensation, data-logging capability, and battery life sufficient for a full shift (8+ hours).

Area and Bioaerosol Samplers

Area samplers operate at higher flow rates (5–30 L/min) for ambient air monitoring, indoor air quality surveys, and bioaerosol sampling (mould, bacteria). Impaction-type bioaerosol samplers (e.g., Andersen-style) collect viable organisms on agar plates at calibrated flow rates. For sub-slab soil vapour sampling in Phase II ESAs, dedicated low-flow sampling trains with Summa canisters or sorbent tubes are the standard — consult your laboratory's recommended protocol.

Sampling Accessories and Field Supplies

No sampling program runs on major equipment alone. The accessories and consumables often determine whether a field day succeeds or gets derailed.

• Tubing: LDPE, silicone, PTFE, and C-Flex tubing for pump sampling. Match tubing material to your analyte list — PTFE for trace organics, silicone for peristaltic pump heads, LDPE for general inorganics.
• Check valves and foot valves: Bottom check valves for bailers; foot valves for dedicated well tubing installations.
• Sample containers: Pre-preserved VOA vials, amber glass, HDPE bottles. Your laboratory dictates container type, preservative, and hold time — order containers from the lab, not a general supplier.
• Decontamination supplies: Alconox detergent, distilled water, spray bottles, dedicated brushes. Required between sampling locations when using reusable equipment.
• Cord, rope, and cable: Disposable polypropylene cord for bailers, stainless steel cable for reusable bailers and water level meters.
• Field meters: Water quality multi-parameter meters (pH, conductivity, DO, ORP, turbidity) are essential for low-flow sampling stabilization criteria. Photoionization detectors (PIDs) for soil headspace screening.

Soil sampling accessories | Water sampling accessories

Canadian Regulatory Context: Standards That Drive Equipment Selection

Equipment selection is not just a technical decision — it is a regulatory one. Canadian environmental site assessments operate under a framework of federal and provincial standards that specify acceptable sampling methods.

• CSA Z769 (Phase I ESA) — defines the scope of a Phase I Environmental Site Assessment. No sampling is required at Phase I, but the standard establishes the triggers for Phase II investigations.
• CSA Z768 (Phase II ESA) — specifies requirements for intrusive investigation including soil and groundwater sampling. Equipment must be capable of collecting representative samples at the depths and in the media identified by the Phase I conceptual site model.
• CCME Guidance Manual on Sampling, Analysis, and Data Management — the national reference for environmental sampling methodology. Specifies low-flow sampling as the preferred method for groundwater monitoring wells and defines QA/QC protocols (trip blanks, field duplicates, equipment blanks).
• Provincial MOE/Ministry guidance: Ontario (O. Reg. 153/04 and associated technical guidance), Quebec (MELCCFP RPRT policy), Alberta (Alberta Tier 1/Tier 2 guidelines), BC (CSR protocol) — each province adds specific requirements for sampling methods, analytical suites, and reporting. Equipment must meet the requirements of the jurisdiction where you are working.

The practical impact: if you are conducting a Phase II ESA in Ontario under O. Reg. 153/04, your groundwater sampling method must produce representative results acceptable to the MOE. Low-flow sampling with stabilization criteria is the expected standard for monitoring well sampling. Bailer samples may be acceptable for initial screening or free-product checks, but regulatory submissions typically require pump-based low-flow results.

Equipment Selection by Project Phase

The scope of sampling equipment scales directly with the assessment phase. Here is what a typical Canadian environmental consulting firm needs at each stage:

As projects progress from Phase II through remediation, equipment needs shift from portable, disposable, high-throughput (bailers, hand augers) to dedicated, installed, precision (bladder pumps, continuous monitors). ERE supports both ends — from a box of disposable bailers for a one-day Phase II to a full low-flow pump setup for a multi-year remediation monitoring program.

Related Equipment for Remediation Projects

Sampling is one piece of the remediation workflow. If your project involves active treatment systems, ERE also supplies:

• Oil-water separators — for petroleum-contaminated groundwater treatment. See our complete guide to oil-water separators.
• Industrial filter bags — used in water treatment trains for particulate removal before discharge or re-injection.
• Air strippers and SVE blowers — for volatile organic compound remediation in groundwater and soil vapour.

Frequently Asked Questions

What is the difference between a bailer and a pump for groundwater sampling?

A bailer collects a single grab sample by lowering a tube with a check valve into the well — it is fast, portable, and disposable (PVC models). A pump (peristaltic or bladder) draws water continuously at a controlled flow rate, which is required for low-flow sampling protocols under CCME and provincial guidance. Use bailers for initial screening and free-product checks; use pumps when regulatory-quality low-flow samples are required.

What soil sampler do I need for a Phase II ESA in Canada?

For hand-advanced boreholes, a sand auger or mud auger with a soil core sampler covers most Phase II requirements in unconsolidated soils. For drill-rig-advanced boreholes, split spoon samplers (ASTM D1586) are the standard. If you are sampling for VOCs, use a core sampler with disposable liners to minimize volatilization losses.

Can I use disposable bailers for regulatory submissions?

Disposable PVC bailers are acceptable for grab sampling and initial screening in most Canadian jurisdictions. However, for long-term monitoring well sampling submitted under provincial regulatory programs (e.g., Ontario O. Reg. 153/04), low-flow pump sampling is the expected standard. Check your province's technical guidance before relying solely on bailer results for regulatory submissions.

What air sampling pump brands does ERE carry?

ERE stocks personal air sampling pumps from Gilian (Sensidyne) and Buck — both widely used in Canadian environmental consulting and occupational hygiene. These pumps cover standard flow ranges for gas/vapour sampling (1–5 L/min) and particulate sampling (1–4 L/min) with intrinsically safe options for hazardous atmospheres.

Does ERE rent sampling equipment?

Yes. ERE rents and sells environmental sampling equipment including peristaltic pumps, bladder pumps, water quality meters, air sampling pumps, and soil gas sampling kits. Rentals are available for short-term field programs — request a quote with your project dates and equipment list.

More in This Series

• Bailers: Complete Guide to Groundwater Sampling
• Soil Augers and Core Samplers: Selection Guide
• Low-Flow Groundwater Sampling: Equipment and Technique
