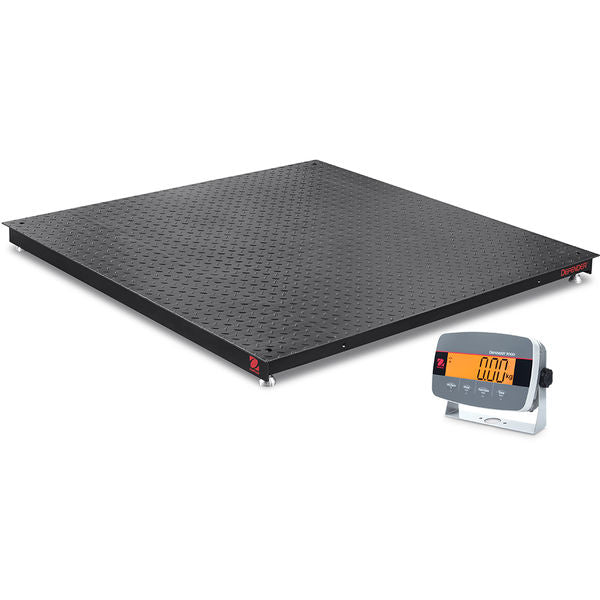

OHAUS Defender™ 3000 Floor Scales - i-DF33— Floor Scales for Basic Industrial Applications

Floor Scales for Basic Industrial Applications. Maximum Capacity: 1250–5000 lb | Readability: 0.2–1 lb | Readability (Certified): 0.5–1 lb | Platform Size: 3–1524 ft

Quote within 4 business hours

Model 8 options

Quantity

Schedule a Call

Quotes typically returned within 4 business hours.

Your specialist

ERE Specialist Team

Senior product specialist · EN / FR

30+ years

Serving North America

In-house cal.

Certified calibration

Authorized

Brand distributor

18,000+ customers

Trusted since 1994

Need service? Start a service request above — we quote on intake within 24 hours.

Ships in 24 hr

From supplier

Secure quote

SSL · PIPEDA

No-risk

Net-30 available

We accept

VISA

AMEX

EFT

P.O.

Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.

Features

Painted carbon steel treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.

Details

Applications	Weighing, Checkweighing, Counting, Totalization
Display	7 Segment LCD with multicolor backlight
Operation	Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)
Communication	Standard RS232 and optional USB Device or Ethernet
Construction	ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available
Design Features	Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Models

Part Number	Model	Maximum Capacity	Readability	Readability (Certified)	Platform Size	Battery Life	Legal for Trade
OH-30716508	I-DF33P5000B1X	5,000 lb (2,500 kg)	1 lb (0.5 kg)	1 lb (0.5 kg)	5 ft x 5 ft (1,524 mm x 1,524 mm)	30 Hours with Rechargeable Battery;100 Hours with Disposable Batteries	NTEP Certified
OH-30716510	I-DF33XW5000C1X	5,000 lb (2,500 kg)	1 lb (0.5 lb)	1 lb (0.5 lb)	5 ft x 5 ft (1,524 mm x 1,524 mm)	30 Hours with Rechargeable Battery	NTEP Certified
OH-30837601	I-DF33P2500B1R	2,500 lb (1,250 kg)	0.5 lb (0.2 kg)	0.5 lb (0.5 kg)	3 ft x 3 ft (914 mm x 914 mm)	30 Hours with Rechargeable Battery;100 Hours with Disposable Batteries	NTEP Certified
OH-30837603	I-DF33P2500B1L	2,500 lb (1,250 kg)	0.5 lb (0.2 kg)	0.5 lb (0.5 kg)	4 ft x 4 ft (1,219 mm x 1,219 mm)	30 Hours with Rechargeable Battery;100 Hours with Disposable Batteries	NTEP Certified
OH-30837604	I-DF33P5000B1L	5,000 lb (2,500 kg)	1 lb (0.5 kg)	1 lb (0.5 kg)	4 ft x 4 ft (1,219 mm x 1,219 mm)	30 Hours with Rechargeable Battery;100 Hours with Disposable Batteries	NTEP Certified
OH-30837691	I-DF33XW2500B1R	2,500 lb (1,250 kg)	0.5 lb (0.2 kg)	0.5 lb (0.5 kg)	3 ft x 3 ft (914 mm x 914 mm)	30 Hours with Rechargeable Battery	NTEP Certified
OH-30837692	I-DF33XW2500B1L	2,500 lb (1,250 kg)	0.5 lb (0.2 kg)	0.5 lb (0.5 kg)	4 ft x 4 ft (1,219 mm x 1,219 mm)	30 Hours with Rechargeable Battery	NTEP Certified
OH-30837693	I-DF33XW5000B1L	5,000 lb (2,500 kg)	1 lb (0.5 kg)	1 lb (0.5 kg)	4 ft x 4 ft (1,219 mm x 1,219 mm)	30 Hours with Rechargeable Battery	NTEP Certified
