Specifications
| Salinity (PSU) Range | 0 to 50 PSU |
|---|---|
| Salinity (PSU) Resolution | 1 PSU |
| Salinity (PSU) Accuracy | ±2 PSU |
| Salinity Range | 0 to 150 ppt |
| Salinity Resolution (ppt) | 1 ppt |
| Salinity Accuracy (ppt) | ±2 ppt |
| Specific Gravity Range | 1.000 to 1.114 Specific Gravity (20/20) |
| Specific Gravity Resolution | 0.001 Specific Gravity (20/20) |
| Specific Gravity Accuracy | ±0.002 Specific Gravity (20/20) |
| Temperature Range | 0 to 80°C (32 to 176°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Accuracy | ±0.3 °C (±0.5 °F) |
| Temperature Compensation | automatic between 0 and 40°C (32 to 104°F) |
| Automatic Shut-Off | after three minutes of inactivity |
| Battery Type/Life | 9V / approximately 5000 readings |
| Dimensions | 192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) |

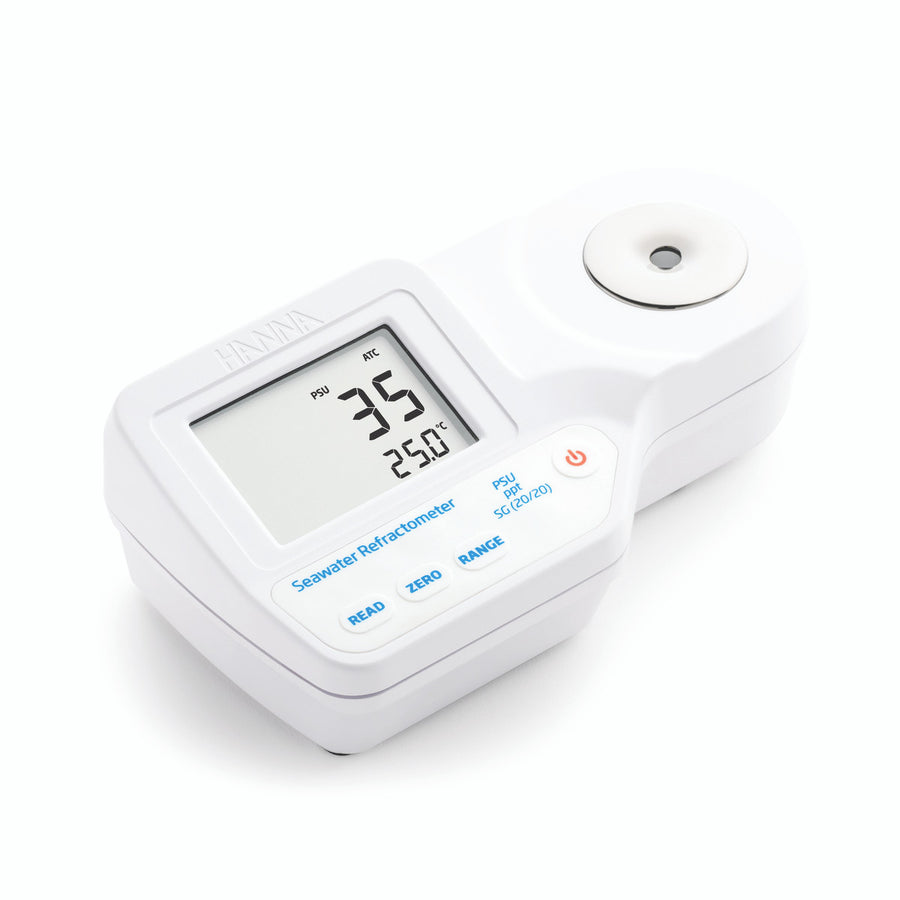

HA-96822 Digital Seawater Refractometer is a rugged portable, water resistant device that utilizes the measurement of the refractive index to determine the salinity of natural and artificial seawater, ocean water or brackish intermediates. Within seconds, the refractive index and temperature are measured and converted into one of 3 popular measurement units: Practical Salinity Units (PSU), Salinity In Parts Per Thousand (ppt), or Specific Gravity (S.G. (20/20)). All conversion algorithms are based upon respected scientific publications using the physical properties of seawater (not sodium chloride).
Specifications
• PSU Range: 0 to 50, Resolution: 1, Accuracy: ± 2
• ppt Range0 to 150, Resolution: 1, Accuracy: ± 2
• Specific Gravity (20/20) Range: 1.000 to 1.114, Resolution: 0.001, Accuracy: ± 0.002
• Temperature Range: 0 to 80°C (32 to 176°F), Resolution: ± 0.1°C (0.1°F), Accuracy: ± 0.3°C (0.5°F)
• Temperature Compensation Automatic between 10 and 40°C (50 to 104°F)
• Approximately 1.5 seconds Measurement Time
• 100 μL Minimum Sample Volume (to cover prism totally)
• Yellow LED
• Stainless Steel ring and flint glass prism
• Auto-Off After 3 minutes of non-use
• IP 65 Enclosure Rating
• 9 V Battery Type
• Battery Life: Approx. 5000 readings
• 192 mm x 102 mm x 67 mm (7.6" x 4" x 2.6")
• 420 g
