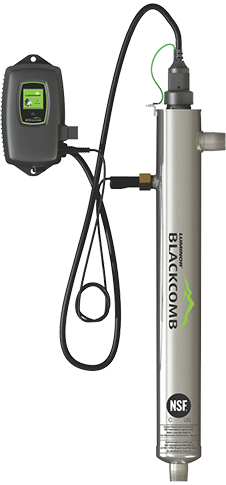

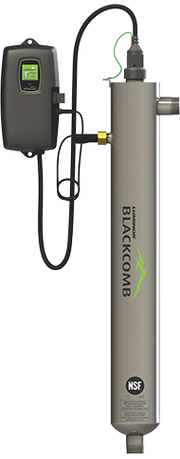

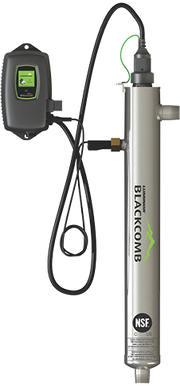

If you are looking for an independently validated UV system for PRIMARY disinfection of a water source, a Luminor “NSF 55 Class A” UV system is your solution.
The system includes a 254nm Teflon® based UV sensor to continuously monitor the UV intensity of the system and displays it as a percentage on the color screen.
The BLACKCOMB color screen controller has a user interface with screens displaying diagnostics, status, warnings and QR codes.
Features
• True 254nm Teflon® based UV sensor measures continuously, displaying UV intensity as a % – standard on LB6 / LBH6 units ONLY
• Color screen controller with Lightlock™ for protected lamp replacement
• Expandability port for future upgrades and options
• Axial flow, stainless steel polished reactors, designed & manufactured to ASME pressure vessel standards
• Simple lamp changes
• Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life
• Constant current electronic controller in a splash proof case
• Supporting various tube material for transferring different liquids
• Full customization available as an option – language, home screen, phone number, QR codes, etc.
Compare models
Your selection is highlighted. Select a row to switch.BLACKCOMB (Standard-output) | BLACKCOMB-HO (High-output, compact design) | |||||||||
| Model | LB6-021A LB6-02A-12V | LB6-031A LB6-03A-12V | LB6-061A LB6-06A-12V | LB6-101A | LB6-151A | LBH6-051A | LBH6-101A | LBH6-151A | LBH6-251A | LBH6-401A |
| NSF Class A Flow Rate (40mJ/cm2 @ 70% UVT) | 1.6 GPM | 2.2 GPM | 3.4 GPM | 6.3 GPM | 7.9 GPM | 2.2 GPM | 4.0 GPM | 5.4 GPM | 7.9 GPM | 18.0 GPM |
6.1 lpm | 8.3 lpm | 12.9 lpm | 23.8 lpm | 29.9 lpm | 8.3 lpm | 15.1 lpm | 20.4 lpm | 29.9 lpm | 68.1 lpm | |
0.36 m3/hr | 0.5 m3/hr | 0.77 m3/hr | 1.43 m3/hr | 1.79 m3/hr | 0.5 m3/hr | 0.91 m3/hr | 1.23 m3/hr | 1.79 m3/hr | 4.08 m3/hr | |
| Flow Restrictor | Integral | |||||||||
| Port Size | ½”FNPT | ½”MNPT | ¾”MNPT | ¾”MNPT | 1”MNPT | ½”MNPT | ¾”MNPT | 1”MNPT | 1”MNPT | 1 ½”MNPT |
| Lamp Watts | 8 | 15 | 22 | 39 | 50 | 18 | 34 | 45 | 67 | 101 |
| Power (Watts) | 14 | 20 | 30 | 49 | 62 | 20 (19 @ 230V.) | 38 (36 @ 230V.) | 57 (48 @ 230V.) | 73 (72 @ 230V.) | 115 (108 @ 230V.) |
| Maximum Current (amps) | 1 | |||||||||
| Replacement Lamp | RL-210 | RL-920 | RL-470 | RL-820 | RL-999 | RL-210HO | RL-330HO | RL-420HO | RL-600HO | RL-950HO |
| Replacement Sleeve | RQ-210 | RQ-290 | RQ-470 | RQ-820 | RQ-999 | RQ-210 | RQ-330 | RQ-420 | RQ-600 | RQ-950 |
| Replacement UV Sensor | RS-B2.5V | RSHO-B3.5V | ||||||||
| Chamber Material | Polished 304 stainless steel, A249 pressure rated tubing | Polished 316L stainless steel, A249 pressure rated tubing | ||||||||
| Operating Pressure | 0.7-10.3 bar (10-150 psi) | |||||||||
| Operating Water Temp. | 2-40° C (36 - 104°F) | |||||||||
| UV Monitor | YES | |||||||||
| Solenoid Output | YES (but requires optional solenoid module) (MOD-SOL) | |||||||||
| Dry Contacts | YES (but requires optional remote alarm module) (MOD-RAM) | |||||||||
| 4-20mA Output | YES (but requires optional 4-20mA module) (MOD-420) | |||||||||
| Lamp Change Reminder | YES (both audible and visual (full color graphic)) | |||||||||
| Lamp Out Indicator | YES (both audible and visual (full color graphic)) | |||||||||
| Shipping Weight | 6.6 lbs | 7.3 lbs | 9.3 lbs | 15.0 lbs | 17.6 lbs | 9.9 lbs | 11.9 lbs | 13.2 lbs | 16.1 lbs | 21.6 lbs |
