How the BioVent™ Soil Biopile Treatment System Works
BioVent™ enhances biodegradation within soil by drawing vapour through manifolds installed on the biopile cells. Each system can be custom fabricated to suit the specific site.

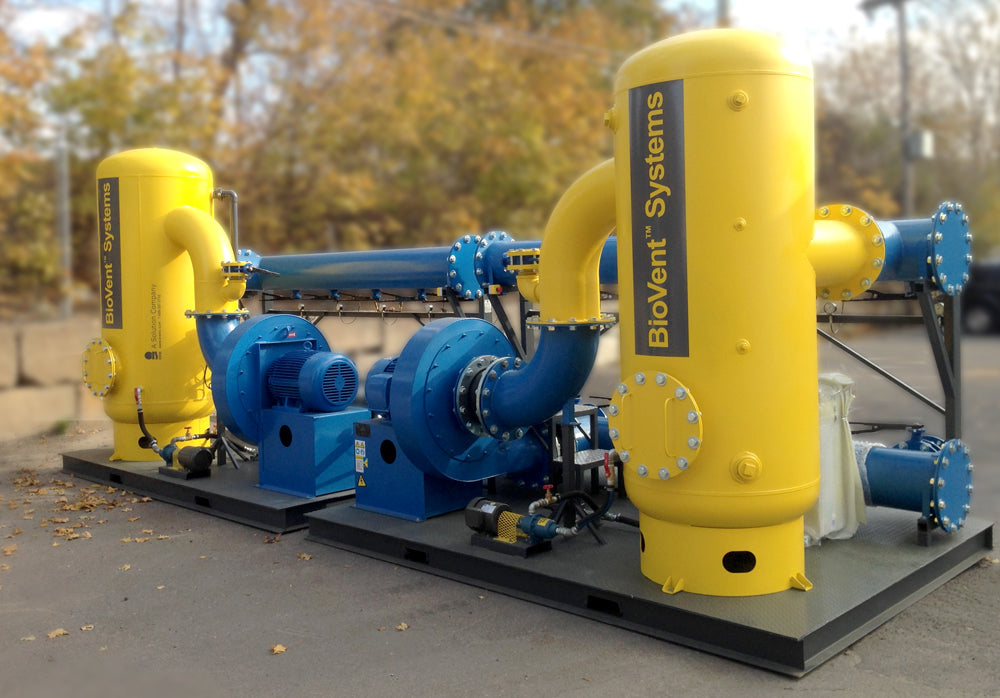

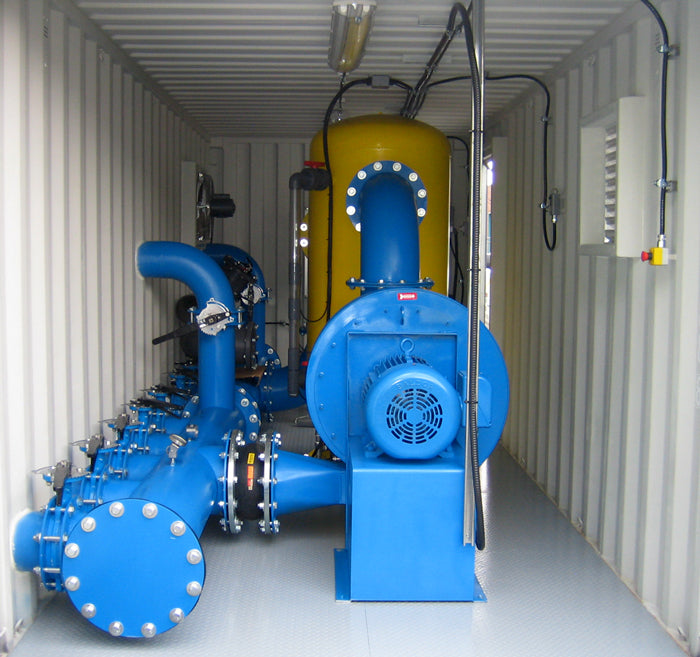

The skid-mounted package routes air through a moisture knockout tank — with level controls and a 10 GPM transfer pump protected by a pressure switch — and a bag filter vessel, monitored by a main vacuum gauge (0–60" H2O) and inlet temperature gauge. An 8" flange inlet / 6" outlet and inlet butterfly valve handle flow. A NEMA 4 weatherproof control panel manages the blower and provides metering, indication and alarms.
Key Specifications
| Moisture Knockout | KO Tank (1) with 3 level controls |
| Transfer Pump | 10 GPM with pressure-switch protection and pressure gauge |
| Filtration | Bag Filter Vessel (1) |
| Main Vacuum Gauge | 0–60" H2O |
| Inlet / Outlet | 8" Flange Inlet / 6" Outlet, inlet butterfly valve |
| Control Panel | NEMA 4 weatherproof; main disconnect, on/off blower switch, amperage meter, hour meter, run & alarm indicators; CSA approved |
| Skid | Welded steel frame, UV-resistant urethane paint, fork-liftable holes |
Applications
- Soil biopile treatment
- Enhanced biodegradation within soil
