LUMINOR's BLACKCOMB 4.1 is the mainstay of the home water treatment products. Simplicity and ease of operation were the fundamental design criteria in the creation of BLACKCOMB.
Rugged 304 stainless steel, single-end reactors, designed & manufactured to ASME pressure vessel standards allow for easy lamp change without the need to drain the reactor chamber as in competitive systems. A bayonet style lamp connector allows for easy lamp change without the need for additional tools. Low pressure (LP) coated UV lamps are used offering a consistent output over their 9,000 hour rated life.
The BLACKCOMB controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.
Flow rates of 10, 20, 40, 57 & 80 LPM (3, 6, 10, 15 & 20 GPM), in both 120V or 230V applications, are offered in the BLACKCOMB 4.1 series of products.
Compare models
Your selection is highlighted. Select a row to switch.| Part Number | LU-LB4-021 | LU-LB4-031 | LU-LB4-061 | LU-LB4-101 | LU-LB4-151 | LU-LB4-201 |
| Flow Rate (@ 16 mJ/cm²)* | 4 gpm | 6.1 gpm | 11 gpm | 20 gpm | 30 gpm | 39 gpm |
15 lpm | 23 lpm | 41 lpm | 77 lpm | 110 lpm | 150 lpm | |
0.9 m³/hr | 1.4 m³/hr | 2.5 m³/hr | 4.6 m³/hr | 6.8 m³/hr | 8.9 m³/hr | |
| Flow Rate (@ 30 mJ/cm²)* | 2 gpm | 3.1 gpm | 5.8 gpm | 11 gpm | 15 gpm | 21 gpm |
7.6 lpm | 11 lpm | 23 lpm | 41 lpm | 57 lpm | 79 lpm | |
0.5 m³/hr | 0.7 m³/hr | 1.3 m³/hr | 2.5 m³/hr | 3.4 m³/hr | 4.8 m³/hr | |
| Flow Rate (@ 40 mJ/cm²)* | 1.6 gpm | 2.4 gpm | 4.4 gpm | 8.3 gpm | 12 gpm | 16 gpm |
6.1 lpm | 9.1 lpm | 17 lpm | 31 lpm | 45 lpm | 59 lpm | |
0.4 m³/hr | 0.5 m³/hr | 1.0 m³/hr | 1.9 m³/hr | 2.7 m³/hr | 3.6 m³/hr | |
| Port Size | ½" FNPT | ½" MNPT | ¾" MNPT | ¾" MNPT | 1" MNPT | 1" MNPT |
| Electrical | 90-265V / 50-60Hz | |||||
| Plug Type | American: Nema 5/15 - "1" suffix (i.e. LB4-101) | |||||
| Lamp Watts | 8 | 15 | 22 | 39 | 50 | 42 |
| Power (Watts) | 14 | 20 | 30 | 49 | 62 | 51 |
| Chamber Material | 304 Stainless Steel, A249 Pressure Rated Tubing, Polished & Passivated | |||||
| Replacement Lamp | RL-210 | RL-290 | RL-470 | RL-820 | RL-999 | RL-850 |
| Replacement Sleeve | RQ-210 | RQ-290 | RQ-470 | RQ-820 | RQ-999 | RQ-850 |
| Reactor Dimensions | 2.5 x 10.3" | 2.5 x 14.3" | 2.5 x 21.3" | 2.5 x 35.2" | 2.5 x 40.0" | 3.5 x 36.1" |
| Controller Dimensions | 6.8 x 3.6 x 4" (171.5 x 92.1 x 102 mm) | |||||
| Maximum Operating Temperature | 10 bar (150 psi) | |||||
| Operating Temperature Range | 2-40° C (36-104° F) | |||||
| Lamp Change Reminder (Audible & Visual) | Yes (4-digit LED display) | |||||
| Lamp-Out Indicator (Audible & Visual) | Yes | |||||
| Shipping Weight | 3.0 kg (6.6 lbs) | 3.5 kg (7.7 lbs) | 4.0 kg (8.9 lbs) | 6.6 kg (14.6 lbs) | 7.8 kg (17.2 lbs) | 7.3 kg (16.1 lbs) |
| *Note: | Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT | |||||
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Related equipment we stock

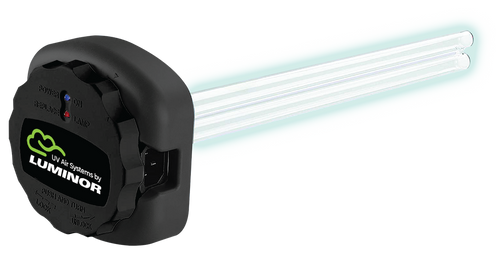

UV Air System
Powerhead dimensions 5”(w) x 5” (h)

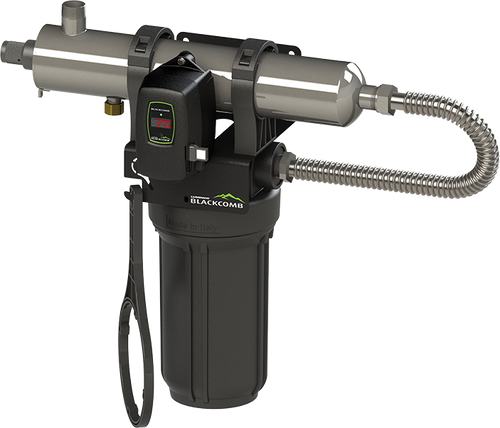

BLACKCOMB UV Rack System

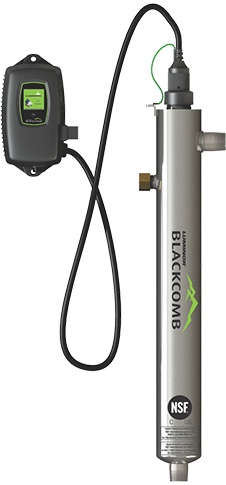

BLACKCOMB NSF Standard, Class B
