Features
• Constructed of 316 Stainless Steel for durability
• Proprietary resin grade virgin PTFE bladder for long life
• Robust screened intake extends bladder life
• True low flow capability for less agitation
• Optional “Drop-Tube” assembly available for sampling from greaterdepths
• Compatible with geocontrol PRO™ and 300 psi & 500 psi BP Controllers

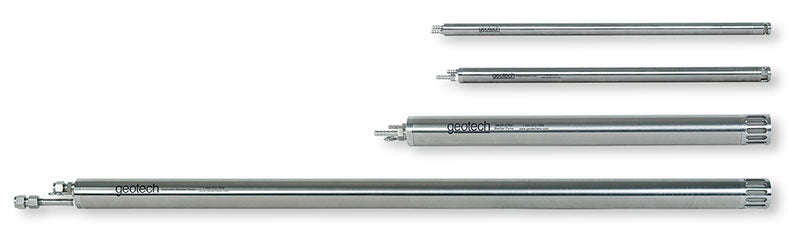

Part NumberGT-1.66X36DGT-1.66X18DGT-850X18DGT-675X18D
Pump Housing316 Stainless Steel316 Stainless Steel316 Stainless Steel316 Stainless Steel
Bladder MaterialVirgin PTFEVirgin PTFEVirgin PTFEVirgin PTFE
Outer Diameter1.66" O.D.1.66" O.D.0.850" O.D.0.675" O.D.
Length With Screen38" L20" L18 5⁄8" L18 3⁄4" L
Weight5.5 lbs3.5 lbs1.1 lbs0.83 lbs
Volume/Cycle22 oz. (650 ml)11 oz. (325 ml)0.9 oz. (29 ml)0.5 oz. (15 ml)
Min. Well Interior Diameter2" I.D.2" I.D.1.00" I.D.0.75" I.D.
Low Pressure BP10 - 125 psi (0.7 - 8.6 bar)10 - 125 psi (0.7 - 8.6 bar)100 psi (6.9 bar)100 psi (6.9 bar)
High Pressure BP10 - 500 psi (0.7 - 34 bar)10 - 500 psi (0.7 - 34 bar)N/AN/A
Min. Operating Pressure5 psi (0.34 bar) ash*5 psi (0.34 bar) ash*5 psi (0.34 bar) ash*5 psi (0.34 bar) ash*
Maximum Depth
Low Pressure BP290 ft (88 m)290 ft (88 m)200 ft (60 m)200 ft (60 m)
High Pressure BP1000 ft (305 m)1000 ft (305 m)--
Tubing Required

Air Low Pressure BP

WA-1/4-LDPE-100
WA-1/4-HDPE-100



Air High Pressure BP

WA-3/8-LDPE-100
WA-3/8-HDPE-100



Water (Discharge)

WA-3/8-LDPE-100
WA-3/8-HDPE-100

Air Low Pressure BP

WA-1/4-LDPE-100
WA-1/4-HDPE-100



Air High Pressure BP

WA-3/8-LDPE-100
WA-3/8-HDPE-100



Water (Discharge)

WA-3/8-LDPE-100
WA-3/8-HDPE-100

Air Low Pressure BP

WA-1/4-LDPE-100
WA-1/4-HDPE-100



-



Water (Discharge)

WA-3/8-LDPE-100
WA-3/8-HDPE-100

Air Low Pressure BP

WA-1/4-LDPE-100
WA-1/4-HDPE-100



-



Water (Discharge)

WA-3/8-LDPE-100
WA-3/8-HDPE-100

Model Item Quantity Unit Price Line Total
650 ml - volume/cycle - Dedicated Bladder Pump
$ 0.00
325 ml - volume/cycle - Dedicated Bladder Pump
$ 0.00
29 ml - volume/cycle - Dedicated Bladder Pump
$ 0.00
15 ml - volume/cycle - Dedicated Bladder Pump
$ 0.00
$ 0.00
