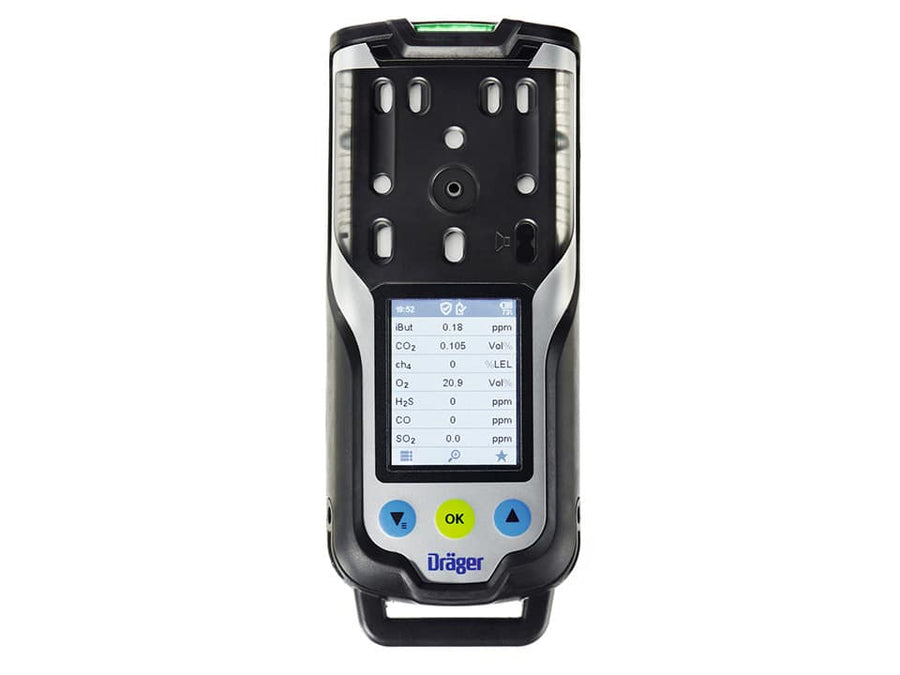

The Dräger X-am 8000 is a 1 to 7 gas detector for clearance measurement and personal monitoring. It measures toxic and flammable gases, vapours and oxygen at once in pump or diffusion mode, takes PID, IR, CatEx and up to 3 electrochemical sensors, and guides confined space clearance with built-in assistants.
- 1 to 7 gases from 5 sensor slots: PID or IR Ex/CO2, IR or CatEx, plus 3 XXS electrochemical sensors
- Choice of more than 40 sensors: Ex, CO2, O2, CO, H2S, NO2, SO2, VOCs and benzene
- Optional integrated pump for hoses up to 45 m (148 ft); the pump adapter switches to diffusion
- Clearance assistant works out the flushing time from the gases, temperature and hose length
- PID HC (0 to 2,000 ppm isobutylene) or PID LC ppb (from 10 ppb); benzene-specific readings with a pre-tube
- Automatic range switch from % LEL to vol % for high methane
- Colour display, 100 dB horn at 30 cm, alarm LEDs and vibration; inductive charging
- IP68; ATEX, IECEx and cCSAus Class I Zone 0
Any of Dräger's 40+ X-am 8000 sensors can be fitted; pre-tubes for benzene are available. Request a quote for pricing and availability.
Specifications
- Gases
- 1 to 7: Ex, CO2, O2, CO, H2S, NO2, SO2, VOC (PID) and more (over 40 sensors)
- Sensor Slots
- Slot 1: PID or IR Ex/CO2 HC; slot 2: IR or CatEx; slots 3 to 5: XXS electrochemical
- PID Sensors
- PID HC 0-2,000 ppm isobutylene; PID LC ppb 0.05-10 ppm isobutylene (10.6 eV)
- Pump
- Optional integrated pump; hoses up to 45 m (148 ft)
- Dimensions (H x W x D)
- 179 x 77 x 42 mm (7 x 3 x 1.7 in)
- Weight
- Approx. 495 g (17.5 oz) without pump, 550 g (19 oz) with pump, without strap
- Operating Temperature
- -20 to +50 °C (-4 to 122 °F)
- Pressure
- 700 to 1,300 hPa
- Humidity
- 10 to 90 % RH (short term up to 95 %)
- Alarms
- 3 red LEDs (gas), 3 yellow LEDs (device), multi-tone horn typically 100 dB at 30 cm, vibration
- Power
- Lithium-ion battery, rechargeable, inductive charging; typically 4 h to charge
- Operating Time (Diffusion)
- Typically 24 h CatEx + 3 EC; 22 h IR + 3 EC; 17 h CatEx + PID + 3 EC; 120 h with 3 EC sensors
- Data Logger
- 24 MB: approx. 400 h at 10 min per hour of gas exposure on all 7 channels
- Ingress Protection
- IP68
- Approvals
- cCSAus Class I Zone 0 AEx da ia IIC T4 Ga, Class II Div 1 Groups E F G; ATEX / IECEx I M1, II 1G
- Warranty
- 3 years device; 1 year power supply; sensors per the DrägerSensor handbook
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Parts & accessories
-
Price on quote
-
Price on quote
Compare with similar models
Dräger · Portable Gas Detector| Spec | This model Dräger X-am® 8000 Multi Gas Detector, 1 to 7 Gases, Pump or DiffusionPrice on quote
|  Dräger X-am® 3500 Multi Gas Detector with Integrated PumpPrice on quote
|  Dräger X-am® 5800 Multi Gas Detector, up to 6 GasesPrice on quote
|
|---|---|---|---|
| Gases | 1 to 7 | 1 to 4 | 1 to 6 |
| Sensor Slots | 5 | — | 4 |
| Max Hose Length | 45 m | 45 m | — |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
