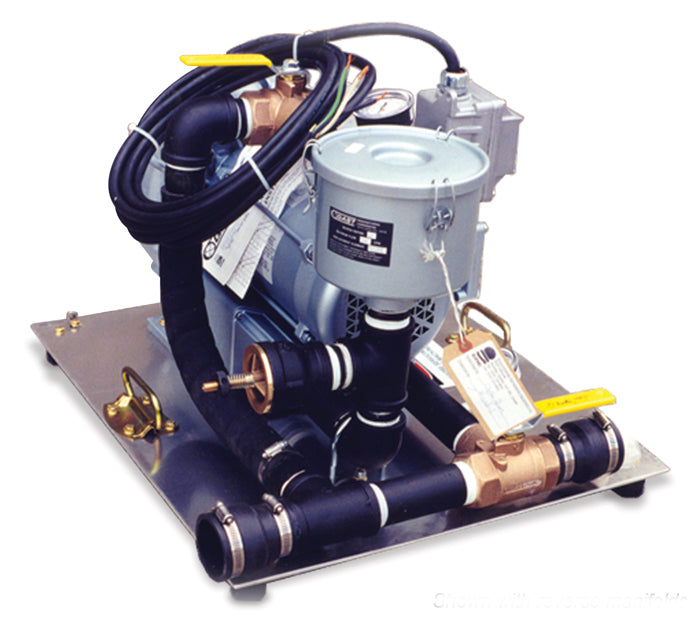

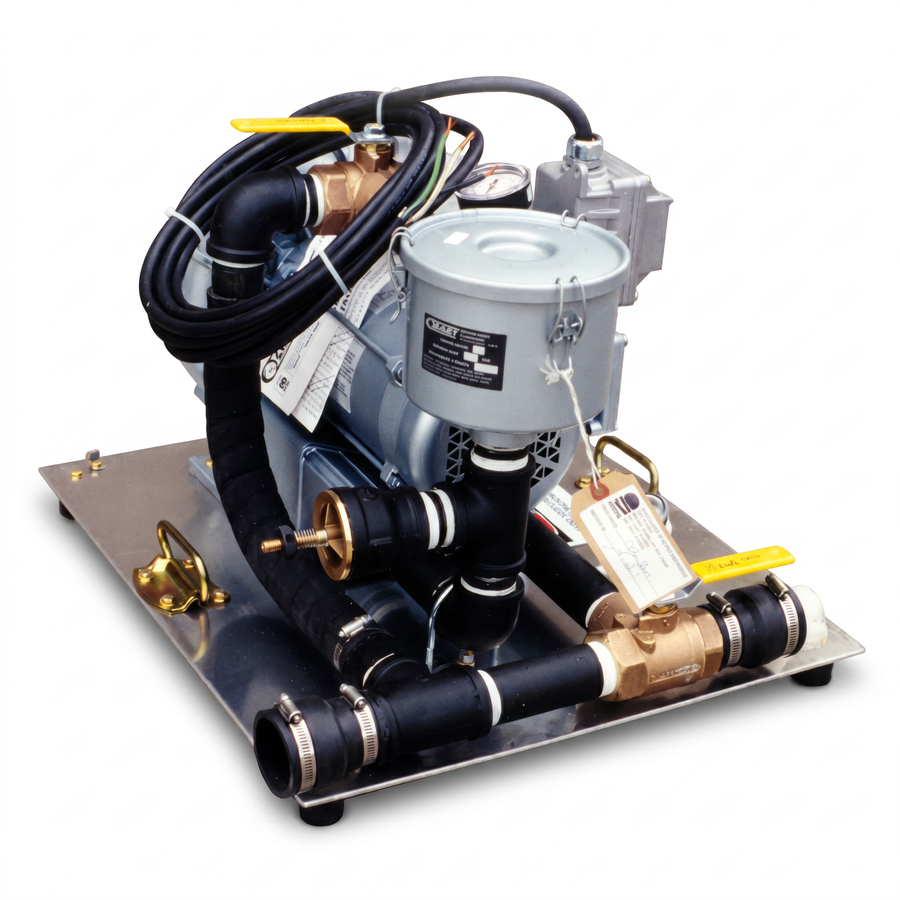

ERE’s EvacuSol, Vapor Extraction Systems are designed for soil degassing and ventilation applications that require low flow/high vacuum capabilities. The system is applicable to the removal of volatile and semi-volatile organic compounds from the vadose zone. Vapors drawn are carried through a vent ductwork to the outside atmosphere or a vapor treatment system.

Features

• Regenerative blower
• Inlet / Outlet plumbing
• Air filter
• Ambient air valve
• Vacuum gauges
• Power disconnect
• Thermal overload protection switch
• UL and CSA approved and conforms to NEMA frame sizes
• EXPLOSION PROOF, DIVISION 1 & 2, CLASS 1 for GROUP D hazardous atmospheres

Applications:

• Soil vapor extraction
• Gasoline vapor recovery
• Groundwater Sparging
• Wastewater treatment Aeration
• Lagoon Gas Recovery
• Landfill Off-Gas Evacuation & collection
• Radon gas collection
• Odor Control

Models

ER-2000-5

55 SCFM Open Flow / 35 IWG Maximum Vacuum, 0.5 hp, 115V-60-1, 3450 rpm, Explosion-Proof Motor & Start Switch W/ Thermal Protection, Inline Fliter, 2 Vacuum Gauges, 0 - 100 IWG, Aluminum Base W/ Rubber Isolators, 20 ft of Sow Cable & Regular Plug, Dilution Valve

ER-20010

107 SCFM Open Flow / 60 IWG Maximum Vacuum, 1 hp, 115/230V-60-1, 3450 rpm, Explosion-Proof Motor & Start Switch W/ Thermal Protection, Inline Fliter, 2 Vacuum Gauges, 0 - 100 IWG, Aluminum Base W/ Rubber Isolators, 20 ft of Sow Cable & Regular Plug, Dilution Valve

ER-20020

160 SCFM Open Flow / 52 IWG Maximum Vacuum, 2 hp, 230V-60-1, 3450 rpm, Explosion-Proof Motor & Start Switch W/ Thermal Protection, Inline Fliter, 2 Vacuum Gauges, 0 - 200 IWG, Aluminum Base W/ Rubber Isolators, 20 ft of Sow Cable & Regular Plug, Dilution Valve

ER-20030

212 SCFM Open Flow / 70 IWG Maximum Vacuum, 3 hp, 230V-60-1, 3450 rpm, Explosion-Proof Motor & Start Switch W/ Thermal Protection, Inline Fliter, 2 Vacuum Gauges, 0 - 30 IHG, Aluminum Base W/ Rubber Isolators, Dilution Valve

ER-20050

295 SCFM Open Flow / 87 IWG Maximum Vacuum, 5 hp, 230/460V-3-60, 3450 rpm, Explosion-Proof Motor (Switch Sold Apart), Inline Fliter, 2 Vacuum Gauges, 0 - 30 IHG, Skid Base, Dilution Valve

ER-20100

400 SCFM Open Flow / 98 IWG Maximum Vacuum, 10 hp, 460/575V-3-60, 3450 rpm, Explosion-Proof Motor (Switch Sold Apart), Inline Fliter, 2 Vacuum Gauges, 0 - 30 IHG, Skid Base, Dilution Valve

Options:

• EvacuSol™ Reverse Manifold
Convert an Extraction Well into a Sparging Point!
Reverse Manifold’s are great for push pull applications with the same well. Comes with a three way valve assembly that conveniently converts an extraction well into a sparging point without any need of pipe change.

• Tornado™ Moisture Knock Out Unit
Tornado™ Moisture Separators protect regenerative blowers from corrosion and mineralization damage. Separation Method is High Efficiency Cyclonic Action with a Check Ball System that will prevent water entering the vacuum blower

• EvacuSol™ Storage Aluminum Box
Great for up to 2 HP systems, rugged and aluminum made construction, comes with lifting handles, lockable, rubber isolator feet.
