The addition of the Retract-A-Tip to the Gas Vapor Probe (GVP) system allows for a more versatile field kit for monitoring or sampling hydrocarbon spill sites, underground storage tanks and pipelines. The Retract-A-Tip can be used multiple times without damage. When the sampling depth is reached, the drive tube is pulled up to expose the inlet holes for sampling. The point can then be driven deeper, reopened, and another sample taken.

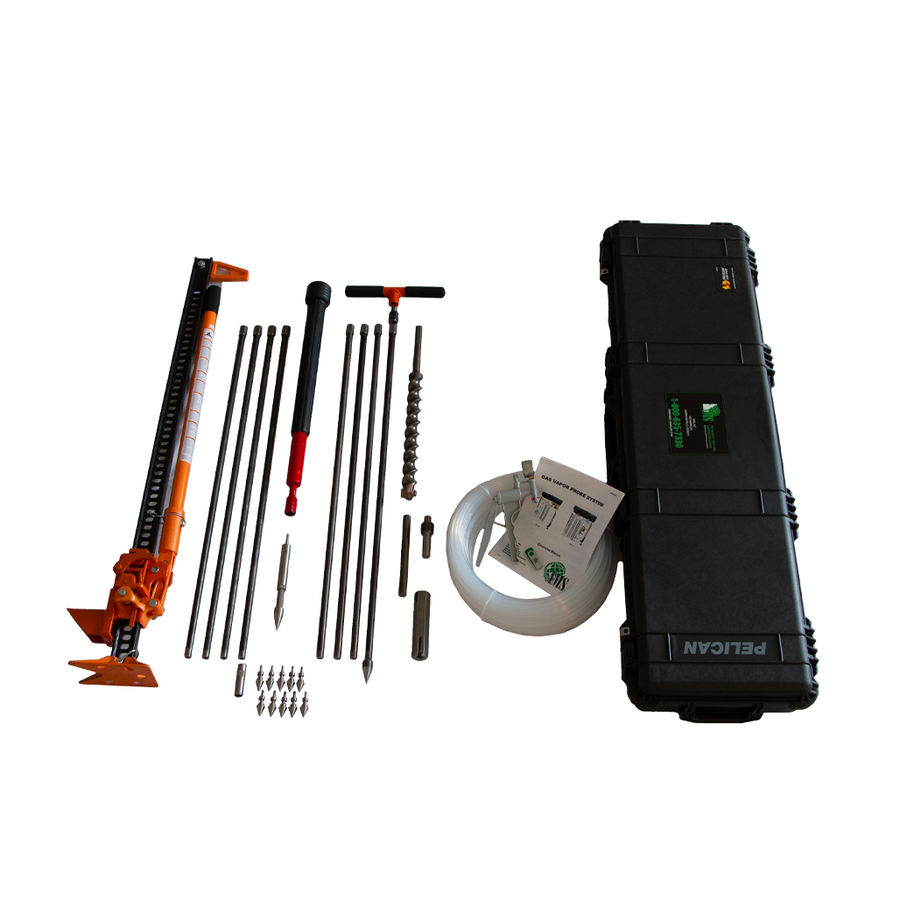

Includes GVP manual, GVP dedicated tip with umbrella (10), Retract-ATip, removal jack, external drive adapter 19 mm (3/4") I.D., 7620 cm (250') roll fluoropolymer tube 4.7 mm (3/16"), GVP 15.8 mm (5/8") tip drive end, slide hammer adapter 19 mm (3/4") O.D., SDS Max drill adapter, SDS Max 38.1 mm (1 1/2") carbide bit, 914.4 mm (3') GVP 15.8 mm (5/8") extension (4), hand pump, slide hammer, 15.8 x 914.4 mm (5/8" x 3') heavy duty extendable tile probe base, 15.8 x 914.4 mm (5/8" x 3') heavy duty tile probe extension (3), deluxe carrying case, GVP instruction CD video.

Heavy Duty Kit also includes Carbide drill bit, 50.8 mm (2") lead with hard surface tip, 50.8 x 914.4 mm (2" x 36") extension (2), 50.8 mm (2") carbide tip, SDS Max drill adapter, 63.5 mm (2 1/2") Wild Bore SDS Max.

Part NumberModelWeight
AM-209.16GVP Kit With Dedicated Tips & Retract-A-Tip Without Drill116.00 lbs
AM-209.26Heavy Duty GVP Kit With  Dedicated Tips & Retract-A-Tip & Flighted Augers Without Drill141.00 lbs
AM-210.02GVP Kit With  Dedicated Tips, Retract-A-Tip & Dewalt D25600K Hammer Drill151.00 lbs
AM-209.86GVP Kit With  Dedicated Tips, Retract-A-Tip & Bosch 11245 EVS Hammer Drill152.60 lbs
AM-209.95Heavy Duty GVP Kit With  Dedicated Tips, Retract-A-Tip, Flighted Augers & Bosch 11245EVS Hammer Drill178.00 lbs
Model Item Quantity Unit Price Line Total
GVP Kit W/ Dedicated Tips & Retract-A-Tip W/O Drill - Gas Vapor Probe Kits with Dedicated Tips and Retract-A-Tip
$ 0.00
Heavy Duty GVP Kit W/ Dedicated Tips & Retract-A-Tip & Flighted Augers W/O Drill - Gas Vapor Probe Kits with Dedicated Tips and Retract-A-Tip
$ 0.00
GVP Kit W/ Dedicated Tips, Retract-A-Tip & Dewalt D25600K Hammer Drill - Gas Vapor Probe Kits with Dedicated Tips and Retract-A-Tip
$ 0.00
GVP Kit W/ Dedicated Tips, Retract-A-Tip & Bosch 11245 EVS Hammer Drill - Gas Vapor Probe Kits with Dedicated Tips and Retract-A-Tip
$ 0.00
Heavy Duty GVP Kit W/ Dedicated Tips, Retract-A-Tip, Flighted Augers & Bosch 11245EVS Hammer Drill - Gas Vapor Probe Kits with Dedicated Tips and Retract-A-Tip
$ 0.00
$ 0.00
