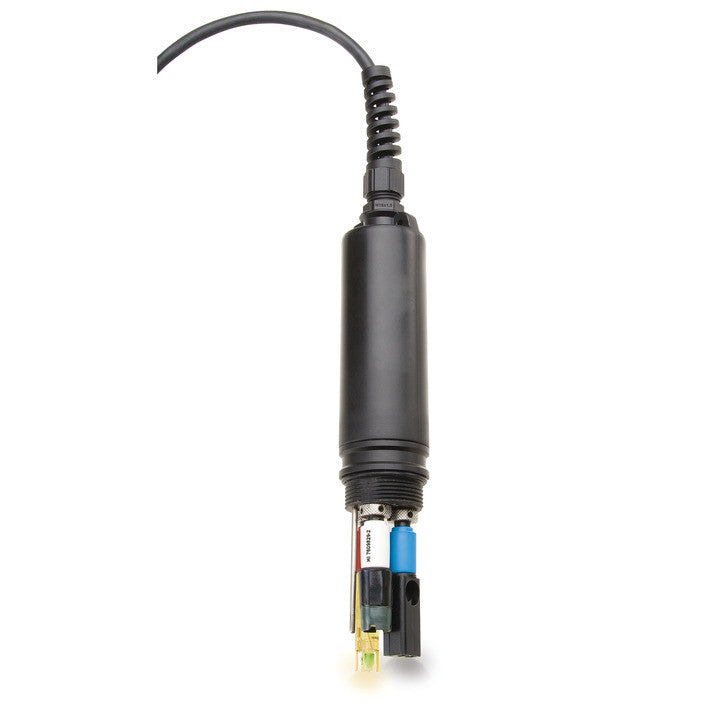

Replacement probes and color-coded spare sensors for the Hanna HI9829 multiparameter meter: the HI7609829 standard probe with 4, 10 or 20 m cable, the HI7629829 probe that logs on its own, and the pH, pH/ORP, galvanic dissolved oxygen, conductivity and conductivity/turbidity sensors.
- Probes accept pH or pH/ORP (or ISE), dissolved oxygen and conductivity or conductivity/turbidity sensors
- Sensors are recognized automatically and replaced in the field with color-coded screw connectors
- Fits 2 inch pipes and wells; strong enough to be lowered and raised by its cable
- HI7629829 logging probe stores up to 140,000 measurements (35,000 full sample sets) while deployed alone
- HI7609829-4 turbidity sensor measures to ISO 7027, 0.0 to 1000 FNU
- IP68 probes for fresh, brackish and seawater, maximum depth 20 m
Probes include a short protective cap and ship without sensors. Request a quote for pricing and availability.
Specifications
- Compatible Meter
- HI9829 multiparameter portable meter
- HI7609829 Standard Probe
- 342 mm long, 46 mm diameter, 570 g with sensors; no internal logging
- HI7629829 Logging Probe
- 442 mm long, 46 mm diameter, 775 g; 4 AA batteries; 140,000 single-parameter or 35,000 full logs; USB to PC
- Cable
- Multistrand shielded cable with strength member rated 68 kg intermittent; 4, 10 or 20 m
- Sample Environment / Protection
- Fresh, brackish, seawater / IP68
- Operating / Storage Temperature
- -5 to 55 °C / -20 to 70 °C
- pH Sensor HI7609829-0
- Glass pH tip, double junction Ag/AgCl reference in gel, PEI body
- pH/ORP Sensor HI7609829-1
- Glass pH tip with platinum ORP pin, double ceramic junction, PEI body
- DO Sensor HI7609829-2
- Galvanic, Ag cathode / Zn anode, screw-on HDPE membrane caps
- EC Sensor HI7609829-3
- 4-ring, AISI 316 stainless steel electrodes
- EC/Turbidity Sensor HI7609829-4
- 4-ring EC plus ISO 7027 turbidity: 0.0 to 99.9 FNU / 100 to 1000 FNU, ±0.3 FNU or ±2 %
- Warranty
- Probes and electrodes 6 months
Documents
Parts & accessories
-
Price on quote
-
Price on quote
-
Price on quote
-
Price on quote
