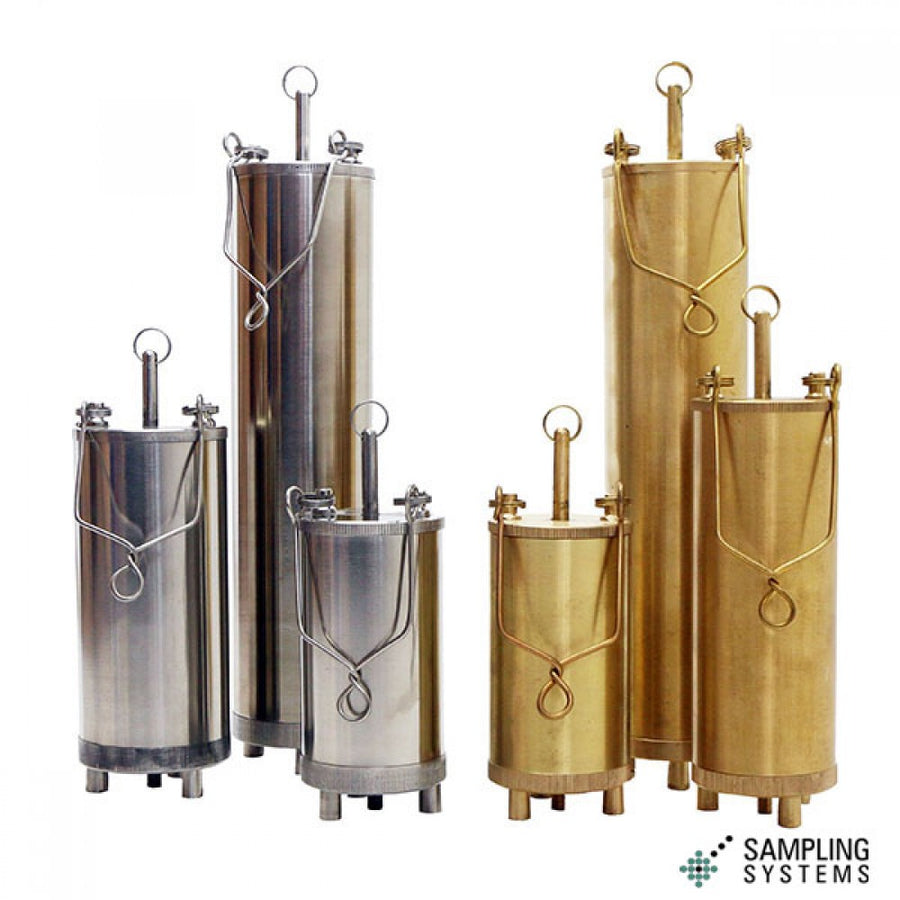

The Immersion Cylinder is designed to be easy to clean. Both ends of the sampler unscrew for easy cleaning.
Immersion Cylinders are designed for environmental and general industrial sampling. For GMP applications we recommend the SS-5072B-500.
Two Methods Of Sampling:
1. When the sampler reaches the bottom of the tank the sampler automatically opens.
2. When the sampler is mid-level, a second control line is used to open the sampler.
| Part Number | Volume | Diameter | Height | Material |
| SS-5132S-300 | 300ml | 70mm | 129mm | 304 ss |
| SS-5132S-500 | 500ml | 70mm | 168mm | 304 ss |
| SS-5132S-1000 | 1000ml | 70mm | 303mm | 304 ss |
| SS-5132B-300 | 300ml | 70mm | 125mm | Brass |
| SS-5132B-500 | 500ml | 70mm | 183mm | Brass |
| SS-5132B-1000 | 1000ml | 70mm | 300mm | Brass |
