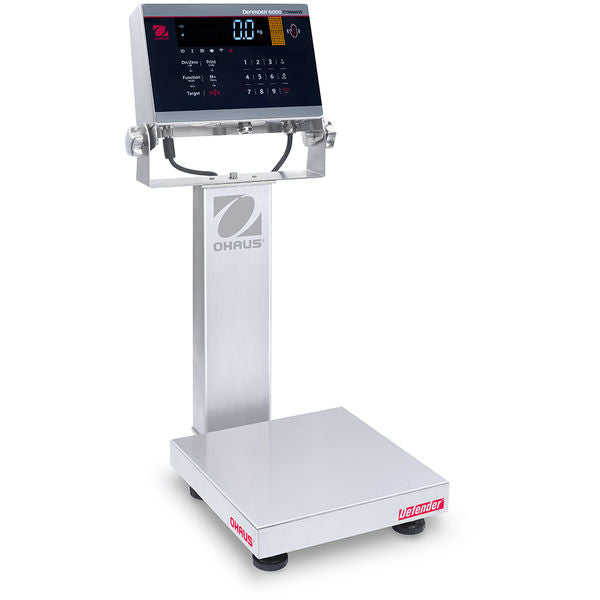

The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options: The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.
Features
- Defender 6000 indicator, constructed of 316 stainless steel stands up to harsh cleaning in processing and packaging environments with IP68 immersion/IP69K washdown protection.
- White LED displays clear results for fast processing. The indicator’s configurable color bar matrix allows for detailed package weight checking to ensure compliance.
- Durably constructed with a 304 stainless steel platform, frame, IP67 loadcell, Defender 6000 hybrid meets NTEP/Measurement Canada approvals.
Details
| Applications | Weighing, Counting with APW Optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold |
| Display | 6-digit, 7-segment white LED, 20 mm high digits |
| Operation | 100-240 VAC / 50/60 Hz universal power supply, hardwired |
| Communication | Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories); GLP/GMP data output with real-time clock |
| Construction | 304 stainless steel platform and frame, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel, IP67 load cell |
| Design Features | 150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet |
Models
| Part Number | Model | Maximum Capacity | Readability | Readability (Certified) | Platform Size | Legal for Trade | Power |
|---|---|---|---|---|---|---|---|
| OH-30631706 | D61XWE2WQS6 | 5 lb (2.5 kg) | 0.0002 lb (0.1 g) | 0.001 lb (0.5 g) | 10 in x 10 in (254 mm x 254 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631707 | D61XWE5WQS6 | 10 lb (5 kg) | 0.0005 lb (0.2 g) | 0.002 lb (1 g) | 10 in x 10 in (254 mm x 254 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631718 | D61XWE12WQS6 | 25 lb (12.5 kg) | 0.001 lb (0.5 g) | 0.005 lb (5 g) | 10 in x 10 in (254 mm x 254 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631719 | D61XWE12WQR6 | 25 lb (12.5 kg) | 0.001 lb (0.5 g) | 0.005 lb (5 g) | 12 in x 12 in (305 mm x 305 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631720 | D61XWE25WQR6 | 50 lb (25 kg) | 0.002 lb (1 g) | 0.01 lb (5 g) | 12 in x 12 in (305 mm x 305 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631721 | D61XWE50WQR6 | 100 lb (50 kg) | 0.005 lb (2 g) | 0.02 lb (10 g) | 12 in x 12 in (305 mm x 305 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631722 | D61XWE25WQL7 | 50 lb (25 kg) | 0.002 lb (1 g) | 0.01 lb (5 g) | 18 in x 18 in (457 mm x 457 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631723 | D61XWE50WQL7 | 100 lb (50 kg) | 0.005 lb (2 g) | 0.02 lb (10 g) | 18 in x 18 in (457 mm x 457 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
| OH-30631724 | D61XWE125WQL7 | 250 lb (125 kg) | 0.01 lb (5 g) | 0.05 lb (50 g) | 18 in x 18 in (457 mm x 457 mm) | NTEP Certified;Measurement Canada Approved | Rechargeable Battery (Not Included);AC Power (Included) |
