Good for Car Wash, Industrial Waste Water, Garage Stations & Metal Machining
Features

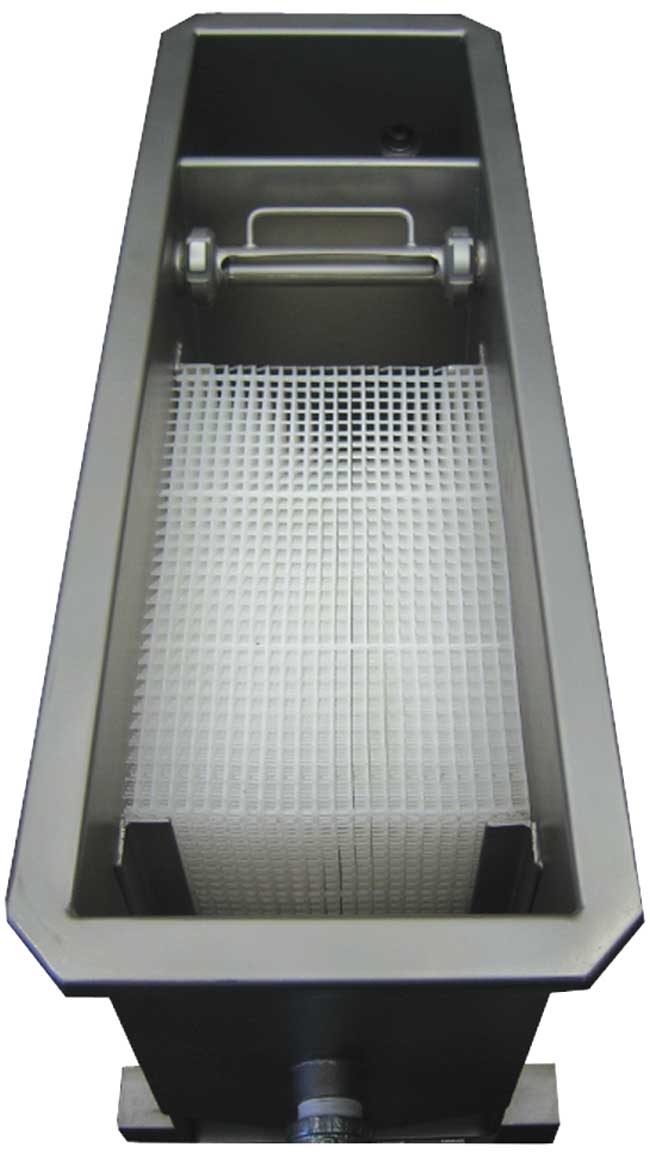

• Best quality gravity coalescer separation with patented coalescers

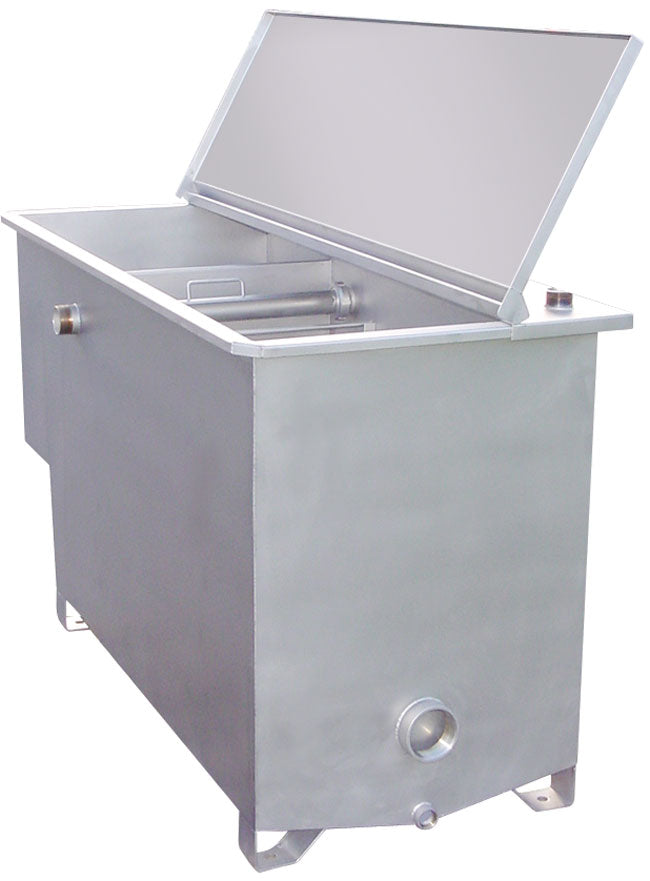

• Quality stainless steel construction built to last

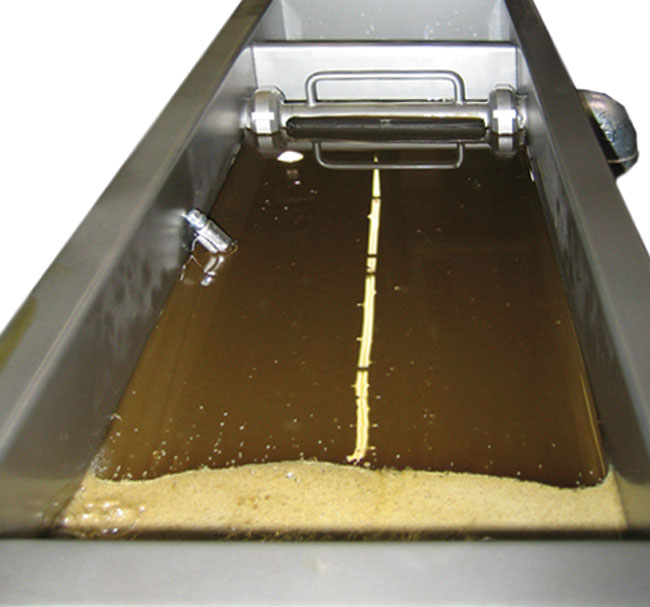

• Produces an effluent with less than 10mg/l of oil droplets measuring larger than 20 microns in size
Other Options Available
• Level switches, latching low-high for pump control and high-high for high level alarm
• Influent positive displacement pumps
• Effluent centrifugal pump
• Water treatment packages
• Skid mounted
• Control Panels
Specifications
• 4 gpm (15 L/min) Flow Rate
• 24" (60.96 cm) x 46" (116.84 cm) x 22" (55.88 cm)
• 1.5" (3.81cm) Inlet Diameter
• 1.5" (3.81cm) Outlet Diameter
• 2" (5.08 cm) Oil Outlet Diameter
| Part Number | Model | Material |
| ER-80004-SS | OlioSep Oil Water Separator - 4 GPM | Stainless Steel |
| ER-80004-STD | Stand For OlioSep Oil Water Separator - 4 GPM | Carbon Steel |
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
