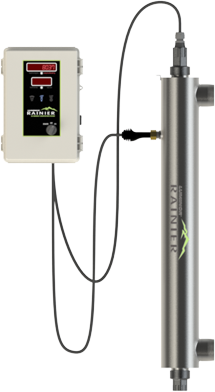

LUMINOR's RAINIER 5.0 model is a commercial water treatment system, designed with upgradeability in mind. The reactor comes with an integral UV sensor port that will accept the addition of an optional UV sensor module at a future date. If a monitor is not required, an integral visual glow plug is provided as an extra way to ensure that your UV lamp is illuminated. Manufactured from 316L stainless steel, these pressure vessels are designed & manufactured to ASME standards. A bayonet style lamp connector allows for easy lamp change without the need for additional tools. For increased power density, RAINIER incorporates low pressure, amalgam (LP-AM) coated UV lamps offering a consistent output over their 12,000 hour rated life. Monitoring is provided through an integral LED display which outputs remaining lamp life, total running hours, audible & visual lamp failure, remote-on and solenoid ready. Whether you are looking to control issues in both hot or cold water with UVT levels as low as 50% or to reduce TOC in industrial grade waters, RAINIER has you covered.

RAINIER-HW 5.0, Light Commercial Amalgam UV Systems, non-monitored
Part Number

LU-LR5-355-HW

LU-LR5-555-HW

LU-LR5-855-HW

LU-LR5-1105-HW

LU-LR5-1405-HW

LU-LR5-1755-HW

Flow Rate
30 mJ/cm² @ 75%
UVT (Industry Std.)

22 gpm

38 gpm

60 gpm

64 gpm

81 gpm

95 gpm

83 lpm

144 lpm

227 lpm

242 lpm

306 lpm

360 lpm

5.0 m³/hr

8.6 m³/hr

13.6 m³/hr

14.5 m³/hr

18.4 m³/hr

21.6 m³/hr

Electrical

230V / 50-60Hz
(IEC power cords required)

Plug Type

North American NEMA 6/15: "5" suffix
European CEE 7/7: "2" suffix
British BS1363: "3" suffix"
Australian AS/NZ 3112: "4" suffix

Lamp Watts

104

152

207

304

344

414

Power (watts)

120

170

220

320

360

430

Replacement Lamp

RL-500A-HW

RL-720A-HW

RL-1000A-HW

RL-720A-HW (2 required)

RL-843A-HW (2 required)

RL-1000A-HW (2 required)

Replacement Sleeve

RQ-500

RQ-720

RQ-1000

RQ-720 (2 required)

RQ-843 (2 required)

RQ-1000 (2 required)

Chamber Material

316L Stainless Steel, A249 Pressure Rated Tubing, Polished & Passivated

Reactor Dimensions

4x27.2x5.6"
10x69x14cm

4x35.8x5.6"
10x91x14cm

4x46.8x5.6"
10x119x14cm

6x35.8x7.9"
15x91x20cm

6x40.6x7.9"
15x103x20cm

6x46.8x7.9"
15x119x20cm

Controller Dimensions

11.8 x 7.9 x 6.3" (30.0 x 20.1 x 16.0 cm)

Maximum Operating Pressure

10.3 bar (150 psi)

Operating Temperature Pressure

2-65° C (36-149° F)

UV Monitor

Upgradeable, includes visual glow plug

Remote-On

Yes, with optional 210010 cable

Dry Contacts (solenoid ready)
4-20 mA Output
Lamp Age Counter

Yes

Lamp-Out Indicator (audible & visual)
Model Item Quantity Unit Price Line Total
LR5-355-HW - RAINIER-HW 5.0 For Hot Water LR5-355-HW - RAINIER-HW 5.0 For Hot Water
$ 0.00
LR5-555-HW - RAINIER-HW 5.0 For Hot Water LR5-555-HW - RAINIER-HW 5.0 For Hot Water
$ 0.00
LR5-855-HW - RAINIER-HW 5.0 For Hot Water LR5-855-HW - RAINIER-HW 5.0 For Hot Water
$ 0.00
LR5-1105-HW - RAINIER-HW 5.0 For Hot Water LR5-1105-HW - RAINIER-HW 5.0 For Hot Water
$ 0.00
LR5-1405-HW - RAINIER-HW 5.0 For Hot Water LR5-1405-HW - RAINIER-HW 5.0 For Hot Water
$ 0.00
LR5-1755-HW - RAINIER-HW 5.0 For Hot Water LR5-1755-HW - RAINIER-HW 5.0 For Hot Water
$ 0.00
$ 0.00
