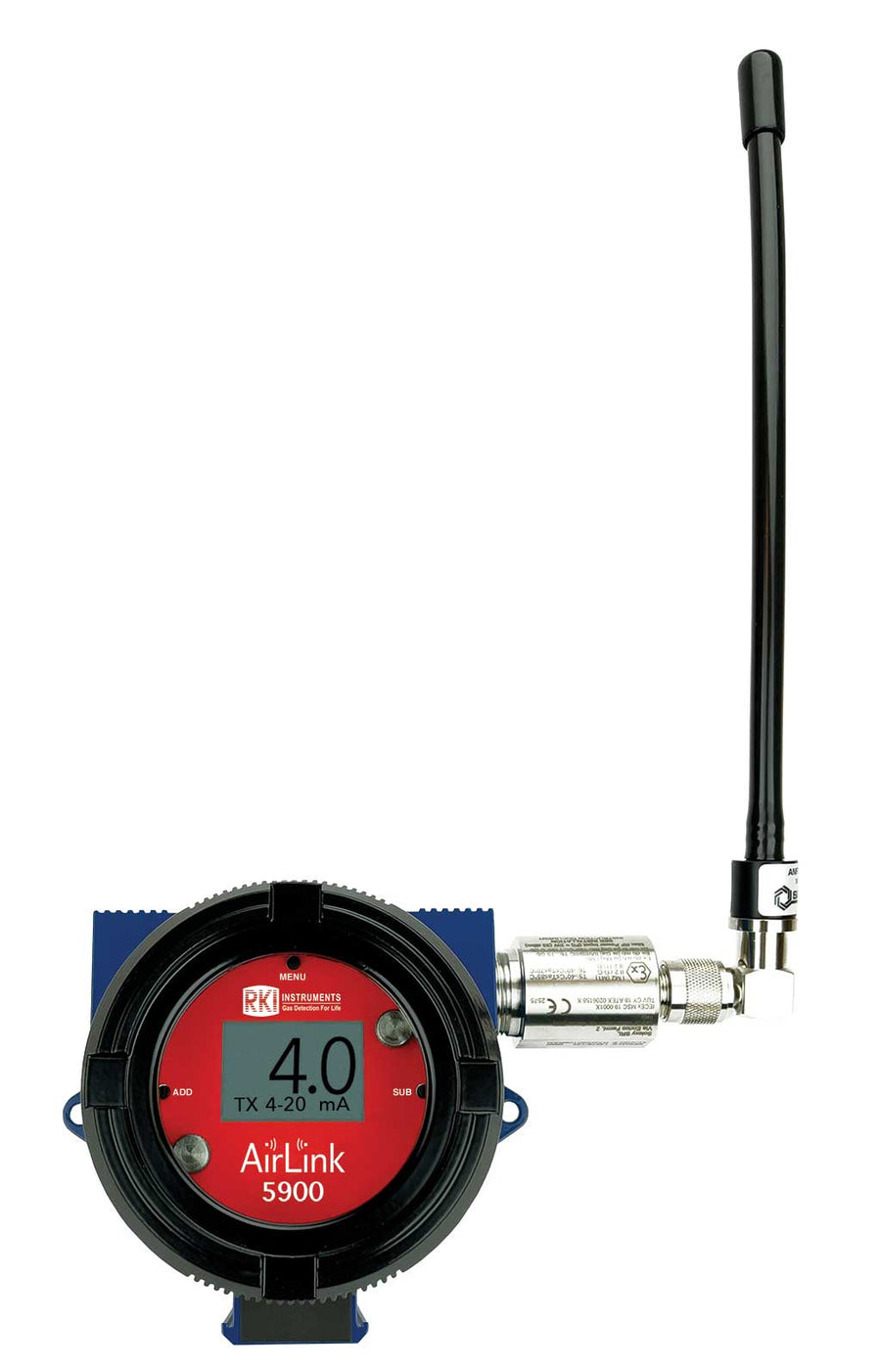

The RKI AirLink 5900 converts any 4-20 mA signal into an AirLink wireless signal: gas, flame, tank level and many other sensor types. It is wire powered from 12 to 35 VDC, in an explosion proof aluminum enclosure, and reports to the AirLink 7010 or 7032 controllers.
- Converts any 4-20 mA sensor signal to wireless: gas, flame, tank level and more
- Transmits the 4-20 mA signal or a scaled value up to 30,000; adjustable transmission on change
- Wire powered, 12 to 35 VDC
- 900 MHz or 2.4 GHz radio, 255 addresses per network
- Sunlight readable 102 x 64 graphic LCD with LED backlight
- 3 push-buttons with matching magnetic, non-intrusive switches
- Aluminum enclosure: ATEX, and CSA Class I Div 1 Groups C D / Class I Zone 1 AEx db IIB T6 Gb
- Works with the AirLink 7010 and AirLink 7032 controllers
Choose the 900 MHz or 2.4 GHz radio to match your AirLink network. Request a quote for pricing and availability.
Specifications
- Input
- Any 4-20 mA signal transmitter
- Operating Voltage
- Wire powered, 12 to 35 VDC
- Settings
- Transmits a 4-20 mA signal or a scaled value up to 30,000; adjustable transmission on change
- RF Connection
- External N-female RF connector
- Display
- 102 x 64 graphic LCD, transflective (sunlight readable), LED backlight
- Interface
- 3 push-buttons (MENU / ADD / SUB) + 3 magnetic non-intrusive switches
- Wireless Radio
- 900 MHz or 2.4 GHz
- Networks
- 52 networks (900 MHz) or 78 networks (2.4 GHz), 255 addresses per network
- Operating Temperature
- -40 to +54 °C
- Hazardous Location Approvals
- ATEX (radio models) II 2 (1) G Ex db mb ia [ia Ga] IIB T6 Gb / CSA Class I Div 1 Groups C D, Ex db IIB T6 Gb, Class I Zone 1 AEx db IIB T6 Gb; Tamb -40 to +54 °C
- Enclosure
- Aluminum
- Compatible Controllers
- AirLink 7010, AirLink 7032
- Dimensions
- 5.42 x 6.03 x 12.16 in (L x D x H, max with attachments)
- Weight
- 4.8 lb
- Warranty
- 1 year limited
Documents
Compare with similar models
RKI Instruments · Gas Detection Accessory| Spec | This model RKI AirLink 5900 Analog (4-20 mA) to Wireless ConverterPrice on quote

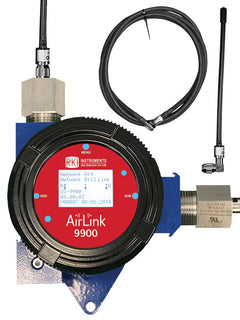

|  RKI AirLink 9900 Wireless Signal Repeater (XP / NXP)Price on quote
|
|---|---|---|
| Power | 12 to 35 VDC | 12 to 35 VDC |
| Radio | 900 MHz / 2.4 GHz | 900 MHz / 2.4 GHz |
