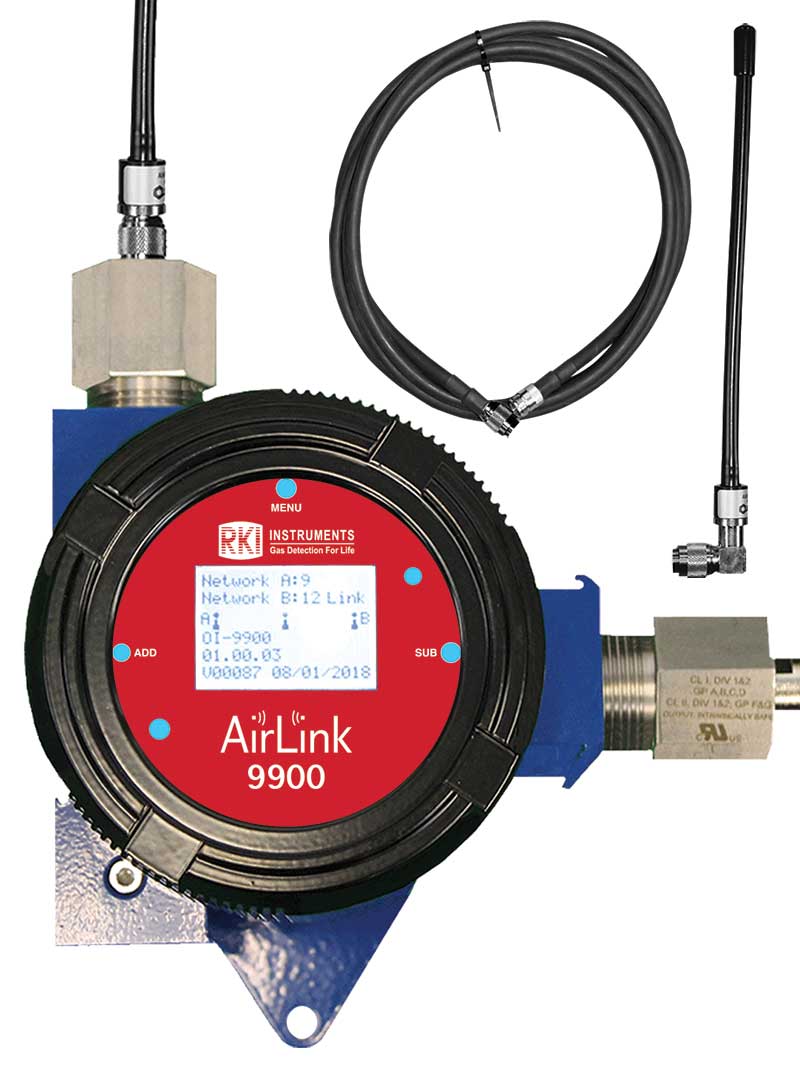

The RKI AirLink 9900 is a wireless signal repeater for AirLink gas detection systems: it receives each wireless detector's transmission and repeats it to the controller, for longer distances and more reliable links. The 9900 XP is explosion proof aluminum; the 9900 NXP is polycarbonate and also runs on AC.
- Repeats AirLink wireless gas detector transmissions to the controller over longer distances
- 255 channel: every address on the configured network
- 900 MHz or 2.4 GHz radio
- 9900 XP: 12 to 35 VDC, explosion proof aluminum enclosure, CQPSUS Class I Div 1 Groups C D
- 9900 NXP: 12 to 35 VDC or 115 to 220 VAC, polycarbonate enclosure with clear lid
- Graphic LCD shows the communication state with sensors and controllers
- Magnetic switches for complete setup without opening the enclosure
- A site survey sets how many repeaters are needed and where
Choose the 900 MHz or 2.4 GHz radio to match your AirLink network. Request a quote for pricing and availability.
Specifications
- Product Type
- Wireless signal repeater / extender
- Operating Voltage
- 9900 XP: 12 to 35 VDC / 9900 NXP: 12 to 35 VDC or 115 to 220 VAC
- Current Draw
- 150 mA maximum (at 24 VDC)
- Protection
- EMI filter
- RF Connection
- 2 external N-female RF connectors
- Display
- 102 x 64 graphic LCD, transflective (sunlight readable), LED backlight
- Interface
- 3 magnetic push-buttons (MENU / ADD / SUB)
- Wireless Radio
- 900 MHz (200 mW) or 2.4 GHz
- Networks
- 52 networks (900 MHz) or 78 networks (2.4 GHz), 255 addresses per network
- Compatible Detectors
- All AirLink wireless gas detector transmitters
- Operating Temperature
- 9900 XP: -40 to +60 °C / 9900 NXP: -20 to +54 °C
- Enclosure (9900 XP)
- Aluminum, CQPSUS explosion / flame proof Class I Div 1 Groups C D
- Enclosure (9900 NXP)
- Polycarbonate with clear lid
- Dimensions
- 9900 XP: 5.42 x 6.03 x 12.16 in (L x D x H, max with attachments) / 9900 NXP: 6.44 x 17 x 6.56 in (W x H x D)
- Weight
- 9900 XP: 7.5 lb / 9900 NXP: 5 lb
- Warranty
- 1 year limited hardware
Documents
Compare with similar models
RKI Instruments · Gas Detection Accessory| Spec | This model RKI AirLink 9900 Wireless Signal Repeater (XP / NXP)Price on quote
|  RKI AirLink 5900 Analog (4-20 mA) to Wireless ConverterPrice on quote
|
|---|---|---|
| Radio | 900 MHz / 2.4 GHz | 900 MHz / 2.4 GHz |
| Power | 12 to 35 VDC | 12 to 35 VDC |
