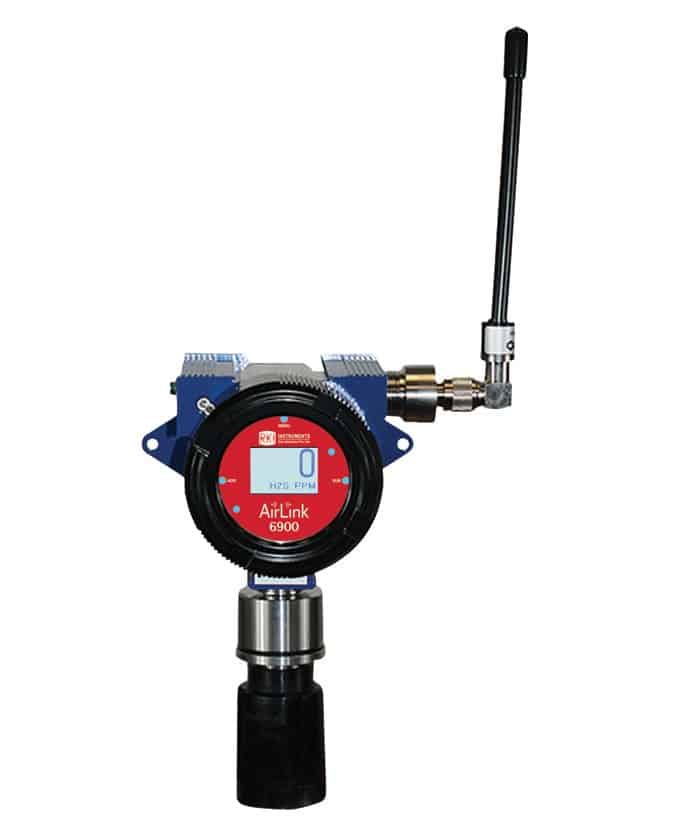

The RKI AirLink 6900 is a battery powered, explosion proof wireless gas detector transmitter. It takes one electrochemical, PID or low-power infrared sensor and reports to an RKI AirLink controller by 900 MHz or 2.4 GHz radio, with no power or signal wiring.
- Wire free: two 3.6 V lithium-thionyl chloride batteries (38 Ah total) and a wireless radio
- Battery life up to 2 years with electrochemical sensors, 1 year with low-power infrared, 14+ days with PID
- One sensor: electrochemical toxics and O2, low-power infrared LEL or CO2, or PID for VOCs
- 900 MHz or 2.4 GHz radio, 1 to 1.5 miles range, 255 addresses per network
- Sunlight readable 102 x 64 graphic LCD with LED backlight
- Magnetic switches for non-intrusive calibration, settings and diagnostics
- CQPSUS explosion / flame proof Class I Div 1 and 2 Groups B C D (certification for select gases)
- Optional remote sensor kit: up to 250 ft (electrochemical and PID) or 40 ft (low-power infrared)
- Reports to the AirLink 7010 and AirLink 7032 controllers
Built to order: choose the sensor (gas and range), the 900 MHz or 2.4 GHz radio and the optional remote sensor kit. Request a quote for pricing and availability.
Specifications
- Sensor Type
- Electrochemical, PID or low-power infrared
- Sensor Options
- CO 0-300 ppm / H2S 0-100 or 0-2,000 ppm / O2 0-25 % vol / LEL methane or hydrocarbon IR 0-100 % LEL / CO2 IR 0-1.5 % vol / NH3 0-100, 0-300 or 0-1,000 ppm / Cl2 0-10 ppm / ClO2 0-1 ppm / SO2 0-20 ppm / NO2 0-20 ppm / NO 0-250 ppm / HCN 0-30 ppm / HCl 0-30 ppm / HF 0-10 ppm / PH3 0-5 ppm / AsH3 0-1 ppm / F2 0-1 ppm / O3 0-5 ppm / EtO 0-10 ppm / PID VOC: 10.6 eV 0-10 to 0-2,000 ppm, 10.0 eV 0-10 to 0-100 ppm, 11.7 eV 0-100 ppm
- Power
- Two 3.6 V lithium-thionyl chloride (Li-SOCl2) batteries, 19 Ah each, 38 Ah total, non-rechargeable
- Battery Life
- Up to 2 years (electrochemical), up to 1 year (low-power infrared), 14+ days (PID)
- Wireless Radio
- 900 MHz (200 mW) or 2.4 GHz (125 mW), 1 to 1.5 miles range
- Networks
- 52 networks (900 MHz) or 78 networks (2.4 GHz), 255 addresses per network
- RF Connection
- External N-female RF connector
- Display
- 102 x 64 graphic LCD, transflective (sunlight readable), LED backlight
- Interface
- 3 push-buttons (MENU / ADD / SUB) + 3 magnetic non-intrusive switches
- Settings
- Adjustable background gas setting
- Operating Temperature
- -40 to +54 °C
- Remote Sensor Kit (Optional)
- With enclosure (7 pin): up to 250 ft for PID and electrochemical, up to 40 ft for low-power IR
- Hazardous Location Approvals
- Main enclosure and sensor housing CQPSUS explosion / flame proof Class I Div 1 and 2 Groups B C D; NEMA 3, 4, 4X, 7 (B C D), 9 (E F G); certification applies to some gases only
- Compatible Controllers
- AirLink 7010, AirLink 7032
- Dimensions
- 5.42 x 6.03 x 17.03 in (L x D x H, max with attachments)
- Weight
- 6 lb
- Warranty
- 1 year electronics and sensor (2 months for PID with 11.7 eV lamp); batteries 90 days from ship date
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Parts & accessories
-
Price on quote
Compare with similar models
RKI Instruments · Fixed Gas Detector| Spec | This model RKI AirLink 6900 Wireless Gas Detector, Battery PoweredPrice on quote

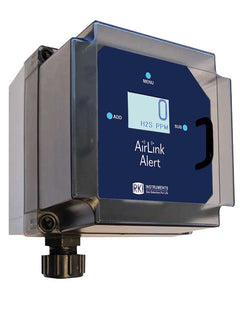

|  RKI AirLink Alert Wireless Toxic Gas DetectorPrice on quote
|
|---|---|---|
| Battery Life | 2 years | 2 years |
| Radio | 900 MHz / 2.4 GHz | 900 MHz / 2.4 GHz |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
