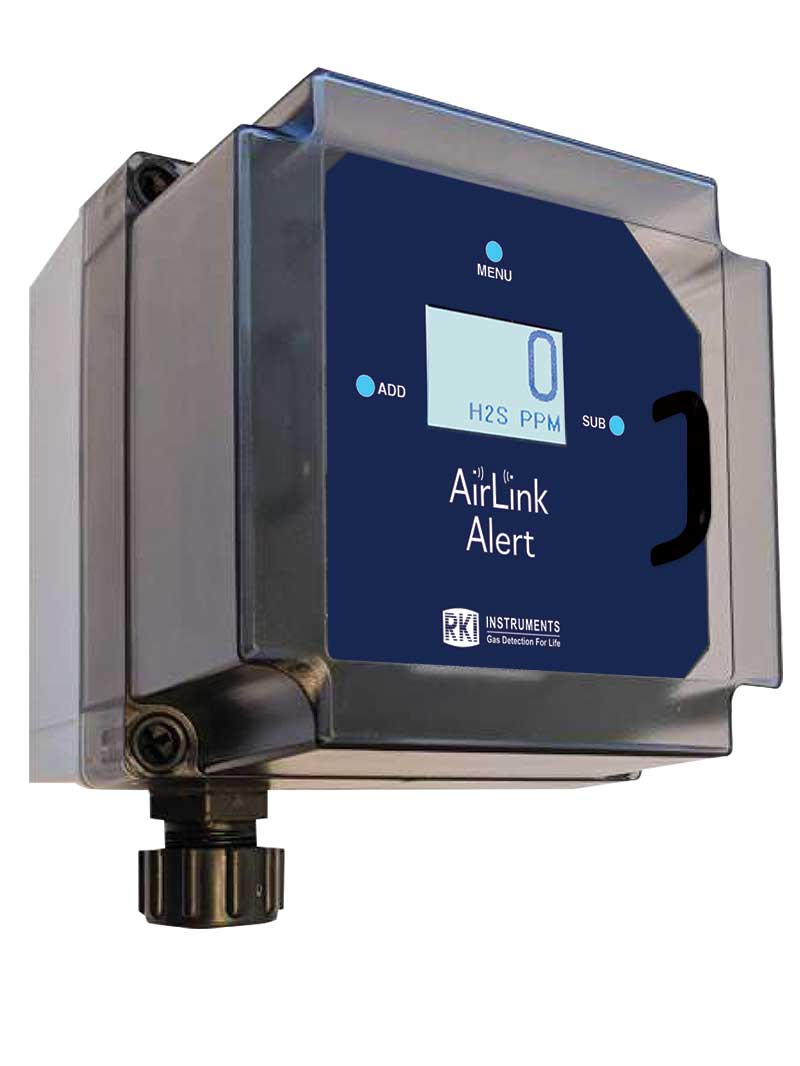

The RKI AirLink Alert is a battery powered wireless toxic gas detector for non-hazardous areas. It uses one electrochemical, infrared or PID sensor and reports to an RKI AirLink controller by 900 MHz or 2.4 GHz radio.
- Battery powered: up to 2 years with electrochemical sensors, 1 year with low-power infrared, 14+ days with PID
- One sensor for toxic gases, O2, LEL or CO2 (infrared) or VOCs (PID)
- 900 MHz or 2.4 GHz radio, 1 to 1.5 miles range, 255 addresses per network
- Polycarbonate NEMA 4, 4X and 6 enclosure with clear window, IP66
- For non-hazardous (unclassified) areas
- Magnetic switches for non-intrusive calibration, settings and diagnostics
- Optional remote sensor kit: up to 250 ft (electrochemical and PID) or 40 ft (low-power infrared)
- Operates from -40 to +70 °C
Built to order: choose the sensor (gas and range), the 900 MHz or 2.4 GHz radio and the optional remote sensor kit. Request a quote for pricing and availability.
Specifications
- Sensor Type
- Electrochemical, PID or low-power infrared
- Sensor Options
- CO 0-300 ppm / H2S 0-100 or 0-2,000 ppm / O2 0-25 % vol / LEL methane or hydrocarbon IR 0-100 % LEL / CO2 IR 0-1.5 % vol / NH3 0-100, 0-300 or 0-1,000 ppm / Cl2 0-10 ppm / ClO2 0-1 ppm / SO2 0-20 ppm / NO2 0-20 ppm / NO 0-250 ppm / HCN 0-30 ppm / HCl 0-30 ppm / HF 0-10 ppm / PH3 0-5 ppm / AsH3 0-1 ppm / F2 0-1 ppm / O3 0-5 ppm / EtO 0-10 ppm / CH2O 0-10 ppm / CH3SH 0-10 ppm / HBr 0-30 ppm / O3 0-100 ppm / PID VOC: 10.6 eV 0-10 to 0-2,000 ppm, 10.0 eV 0-10 to 0-100 ppm, 11.7 eV 0-100 ppm
- Power
- Two 3.6 V lithium-thionyl chloride (Li-SOCl2) batteries, 19 Ah each, 38 Ah total, non-rechargeable
- Battery Life
- Up to 2 years (electrochemical), up to 1 year (low-power infrared), 14+ days (PID)
- Wireless Radio
- 900 MHz (200 mW) or 2.4 GHz (125 mW), 1 to 1.5 miles range
- Networks
- 52 networks (900 MHz) or 78 networks (2.4 GHz), 255 addresses per network
- RF Connection
- External N-female RF connector
- Display
- 102 x 64 graphic LCD, transflective (sunlight readable), LED backlight
- Interface
- 3 push-buttons (MENU / ADD / SUB) + 3 magnetic non-intrusive switches
- Operating Temperature
- -40 to +70 °C
- Enclosure
- NEMA Class I, 4, 4X and 6 polycarbonate enclosure with clear window, IP66, UL 508 and UL 746C (f1)
- Area Classification
- For use in non-hazardous areas only
- Remote Sensor Kit (Optional)
- With enclosure (7 pin): up to 250 ft for PID and electrochemical, up to 40 ft for low-power IR
- Compatible Controllers
- AirLink 7010, AirLink 7032
- Dimensions
- 5.42 x 6.03 x 17.03 in (L x W x H, max with attachments)
- Weight
- 6 lb
- Warranty
- 1 year electronics and sensor (2 months for PID with 11.7 eV lamp); batteries 90 days from ship date
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Parts & accessories
-
Price on quote
Compare with similar models
RKI Instruments · Fixed Gas Detector| Spec | This model RKI AirLink Alert Wireless Toxic Gas DetectorPrice on quote
|  RKI AirLink 6900 Wireless Gas Detector, Battery PoweredPrice on quote
|
|---|---|---|
| Battery Life | 2 years | 2 years |
| Radio | 900 MHz / 2.4 GHz | 900 MHz / 2.4 GHz |
