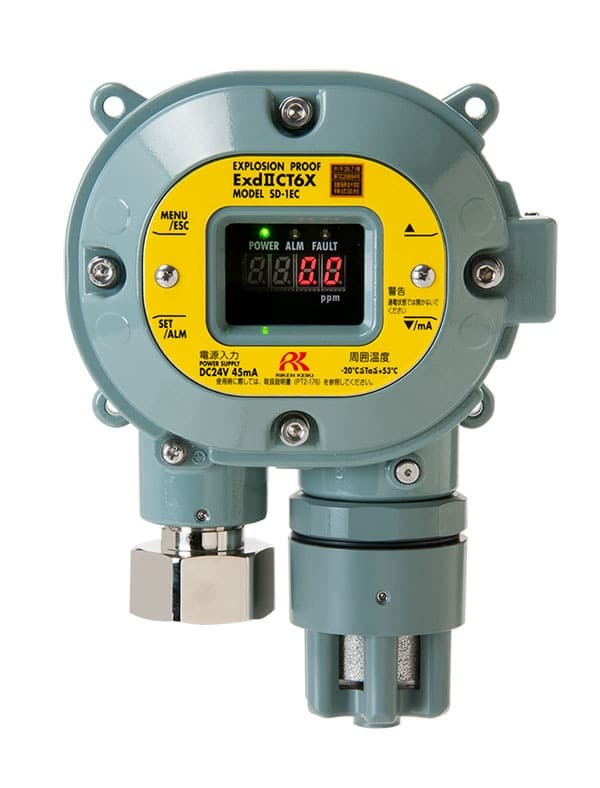

The RKI SD-1 Series is an explosion-proof smart detector / transmitter for % LEL combustibles (catalytic or infrared), ppm organic vapours such as acrylonitrile, ethylene oxide and methylene chloride, CO, H2S and oxygen. It outputs 4-20 mA or HART, runs on 24 VDC and is ATEX / IECEx Ex d IIC T5 approved with IP65/67 protection.
- SD-1GP catalytic and SD-1RI infrared: % LEL combustibles
- SD-1GH semiconductor: ppm organic vapours and toxics such as acrylonitrile, ethylene oxide, n-methyl pyrrolidone and methylene chloride
- SD-1EC electrochemical: CO 0-75 ppm or H2S 0-30 ppm; SD-1OX galvanic cell: O2 0-25 vol %
- Direct digital display of gas readings
- 4-20 mA linear output or HART over 4-20 mA
- SIL2 approval available on IR, EC and OX versions
- Easy maintenance with a magnetic key; microprocessor self-diagnosis
- Explosion proof ATEX / IECEx Ex d IIC T5, IP65/67; 3 W maximum
The target gas, range and output (4-20 mA or HART) are chosen when you order. Request a quote for pricing and availability.
Specifications
- Models
- SD-1GP catalytic / SD-1RI infrared / SD-1GH semiconductor / SD-1EC electrochemical / SD-1OX galvanic cell
- Measuring Ranges
- GP: 0-100 % LEL / GH: ppm ranges by gas / EC: CO 0-75 ppm, H2S 0-30 ppm / OX: 0-25 vol %
- Alarms
- Two programmable set points: increasing / decreasing, latching / self-resetting, on and off delays
- Sampling Method
- Diffusion (flow adapter and air aspiration available)
- Display
- 4-digit digital LED
- Output
- 4-20 mA, HART optional
- Relay
- 1 relay with 4-20 mA versions; no relay with HART versions
- Contact Capacity
- 30 VDC 0.5 A or 120 VAC 0.5 A (resistive)
- Fault Alert
- Circuit / sensor failure, yellow fail lamp
- Power Source
- 24 VDC (17 to 26.4 VDC), 3 W maximum
- Operating Conditions
- -20 to +60 °C / below 95 % RH non-condensing (SD-1EC below 80 % RH)
- Approvals
- Ex d IIC T5, ATEX and IECEx (SD-1GP for H2, CH4, i-C4H10, C3H8); SIL2 available on IR, EC and OX
- Dimensions
- 148 x 161 x 88 mm (5.8 x 6.3 x 3.5 in)
- Weight
- Approx. 2.0 kg (4.4 lb)
- Warranty
- 1 year (RKI warranty policy)
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
RKI Instruments · Fixed Gas Detector| Spec | This model RKI SD-1 Series Explosion-Proof Gas Detector / TransmitterPrice on quote
|  RKI T2A Explosion-Proof Toxic Gas Detector / Transmitter (2-Wire)Price on quote
|
|---|---|---|
| Output | 4-20 mA / HART | 4-20 mA 2-wire |
| Power | 24 VDC | 12 to 35 VDC |
