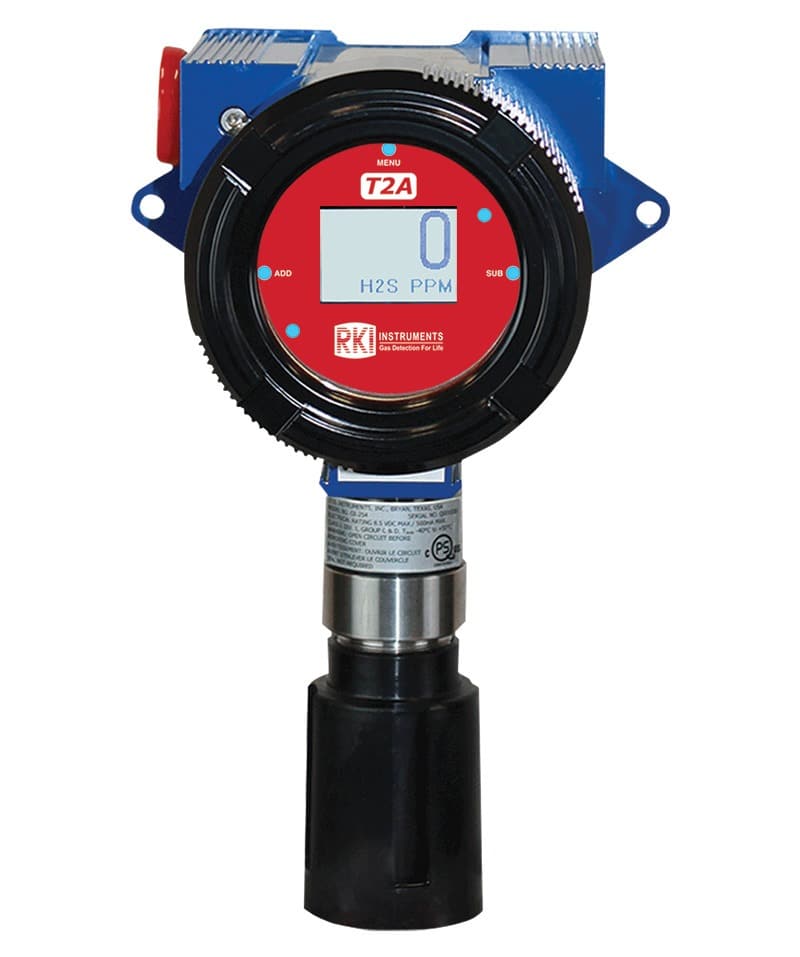

The RKI T2A is a 2-wire loop-powered explosion-proof toxic gas detector that uses an electrochemical sensor for gases such as Cl2, ClO2, CO, H2S, HCl, HCN, HF, NH3, NO2, O2, O3, PH3 and SO2. Magnetic switches allow non-intrusive calibration in the field, and it outputs 4-20 mA to RKI Beacon controllers or a DCS / PLC.
- Electrochemical sensor; loop-powered 2-wire 4-20 mA output
- 3-character 7-segment display with backlight
- 3 push-buttons (MENU / ADD / SUB) with matching magnetic non-intrusive switches
- Operates from -40 to +60 °C
- Aluminum enclosure with 303 stainless steel sensor housing; wall mount included
- Main enclosure CQPSUS Class I Div 1 and 2 Groups B C D; NEMA 3, 4, 4X, 7 and 9
- Works with RKI Beacon 110, 200, 410A and 800 controllers and most DCS / PLC systems
- 1-year warranty on electronics and sensor
The gas and range are chosen when you order. Request a quote for pricing and availability.
Specifications
- Sensor Type
- Electrochemical
- Gases and Ranges
- Cl2 0-10 / ClO2 0-1 / CO 0-300 / H2S 0-100 or 0-2,000 / HCl 0-30 / HCN 0-30 / HF 0-10 / NH3 0-100 up to 0-1,000 / NO2 0-20 / O3 0-100 / PH3 0-5 / SO2 0-20 ppm; O2 0-25 % vol
- Hazard Classification
- Class 1 Div 1: CO, H2S, O2, O3, SO2 / Class 1 Div 2: other gases
- Operating Voltage
- 12 to 35 VDC, loop-powered (2-wire)
- Current Draw
- 35 mA maximum
- Display
- 3-character 7-segment with backlight
- Interface
- 3 push-buttons + 3 magnetic non-intrusive switches
- Temperature Range
- -40 to +60 °C (-40 to +140 °F)
- Enclosure
- Aluminum; 303 stainless steel sensor housing
- Approvals
- CQPSUS explosion / flame proof Class I Div 1 and 2 Groups B C D; NEMA 3, 4, 4X, 7 (B C D), 9 (E F G); certification applies to some gases only
- Dimensions
- 5.42 x 6.03 x 7.03 in (8 x 17 in max with attachments)
- Weight
- 5.75 lb
- Warranty
- 1 year, electronics and sensor
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
RKI Instruments · Fixed Gas Detector| Spec | This model RKI T2A Explosion-Proof Toxic Gas Detector / Transmitter (2-Wire)Price on quote
|  RKI SD-1 Series Explosion-Proof Gas Detector / TransmitterPrice on quote
|  RKI VOC Pro Explosion-Proof PID VOC Detector / TransmitterPrice on quote
|  RKI Air Alert Standalone Toxic Gas Detector / TransmitterPrice on quote
|
|---|---|---|---|---|
| Output | 4-20 mA 2-wire | 4-20 mA / HART | — | — |
| Power | 12 to 35 VDC | 24 VDC | 12 to 35 VDC | 115-220 VAC |
| Temperature | -40 to +60 °C | — | -40 to +54 °C | -40 to +70 °C |
