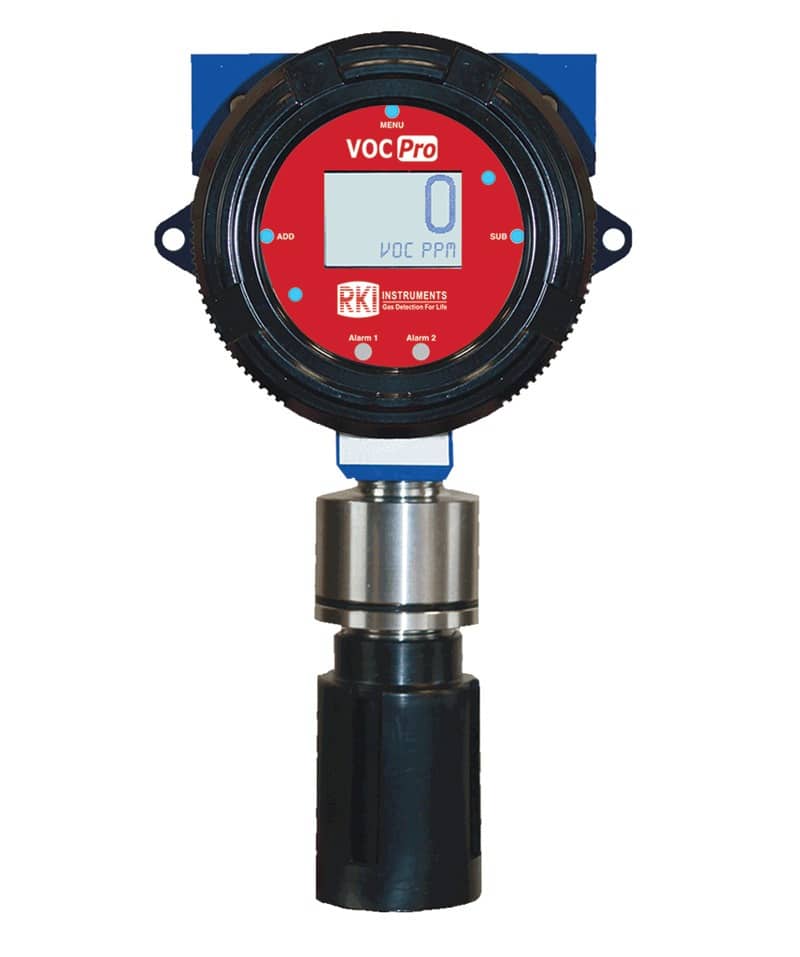

The RKI VOC Pro is a 3-wire explosion-proof fixed VOC detector with a photoionization (PID) sensor: 10.0 eV, 10.6 eV or 11.7 eV lamps, ranges from 0-10 ppm up to 0-2,000 ppm. It runs on 12 to 35 VDC, outputs 4-20 mA and RS-485 Modbus as standard, and calibrates in the field through magnetic switches.
- PID sensor options: 10.0 eV, 11.7 eV, 10.6 eV low ppm and 10.6 eV ppm lamps
- Wired power (3-wire), 12 to 35 VDC
- 4-20 mA (3-wire) analog and RS-485 Modbus outputs standard
- Graphical sunlight-readable LCD with LED backlight
- 3 push-buttons with matching magnetic non-intrusive switches
- 2 configurable alarms with amber and red LEDs; optional 2 alarm relays
- Operates from -40 to +54 °C; remote sensor kit up to 35 ft optional
- Main enclosure CQPSUS Class I Div 1 and 2 Groups B C D
The range suffix and relay option are chosen when you order. Request a quote for pricing and availability.
Specifications
- Sensor Type
- Photoionization (PID)
- Lamps and Part Numbers
- 10.0 eV 66-6195-XX / 11.7 eV 66-6194-XX / 10.6 eV low ppm 66-6192-XX / 10.6 eV ppm 66-6193-XX
- Ranges (suffix)
- 0-10 (-01) / 0-20 (-02) / 0-50 (-05) / 0-100 (-10) / 0-200 (-20) / 0-500 (-50) / 0-1,000 (-1K) / 0-2,000 ppm (-2K), by lamp
- Operating Voltage
- 12 to 35 VDC, 3-wire
- Power Draw
- 2 W maximum
- Display
- 102 x 64 graphical LCD, transflective, white LED backlight
- Outputs
- 4-20 mA (3-wire), RS-485 Modbus, fault terminal; optional 2 dry-contact relays with 4 A fuses
- Temperature Range
- -40 to +54 °C (-40 to +130 °F)
- Remote Sensor Kit
- Optional, PID sensor up to 35 ft
- Approvals
- CQPSUS explosion / flame proof Class I Div 1 and 2 Groups B C D; NEMA 3, 4, 4X, 7 (B C D), 9 (E F G)
- Controllers
- Beacon 110, 200, 410A, 800, MC-6400 and most DCS / PLC systems
- Dimensions
- 5.5 x 6 x 7 in (8 x 17 in max with attachments)
- Weight
- 6 lb
- Warranty
- 1 year, electronics and PID sensor (2 months for 11.7 eV lamp)
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
RKI Instruments · Fixed Gas Detector| Spec | This model RKI VOC Pro Explosion-Proof PID VOC Detector / TransmitterPrice on quote
|  RKI Air Alert Standalone Toxic Gas Detector / TransmitterPrice on quote
|  RKI T2A Explosion-Proof Toxic Gas Detector / Transmitter (2-Wire)Price on quote

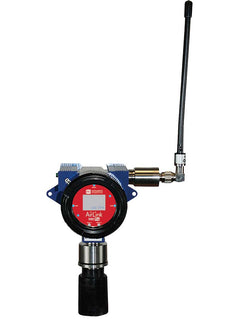

|  RKI AirLink VOC Pro Wireless PID VOC DetectorPrice on quote
|
|---|---|---|---|---|
| Sensor | PID | — | — | PID |
| Power | 12 to 35 VDC | 115-220 VAC | 12 to 35 VDC | 12 to 35 VDC |
| Temperature | -40 to +54 °C | -40 to +70 °C | -40 to +60 °C | — |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
