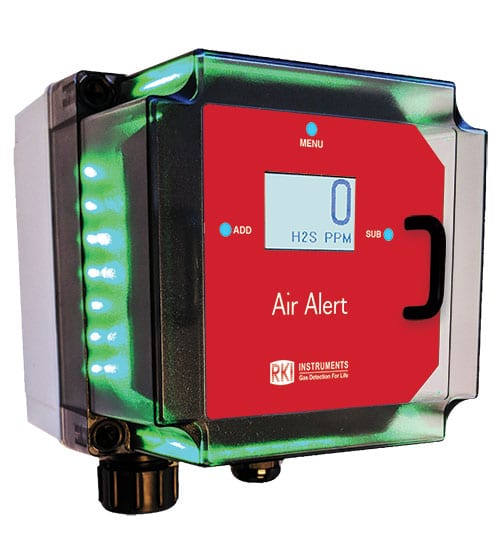

The RKI Air Alert is a standalone ambient-air gas detector for non-hazardous areas, powered from 115-220 VAC. It takes an electrochemical, infrared or PID sensor for more than 35 gases and refrigerants, outputs 4-20 mA and RS-485 Modbus, and offers relays, a 3-colour LED perimeter alarm or a 900 MHz / 2.4 GHz radio as options.
- Electrochemical, infrared or PID sensor element
- Wired power 115-220 VAC (3-wire)
- Operates from -40 to +70 °C
- 3 push-buttons with matching magnetic non-intrusive switches
- Graphical sunlight-readable LCD with LED backlight
- 4-20 mA (3-wire) and RS-485 Modbus outputs; optional 900 MHz or 2.4 GHz radio
- Optional 2 dry-contact relays, or optional 3-colour LED perimeter and audible alarm
- 1-year warranty (2 months for PID with 11.7 eV lamp)
The sensor, range and options are chosen when you order. Request a quote for pricing and availability.
Specifications
- Sensor Types
- Electrochemical / infrared / PID
- Example Gases
- CO 0-300 ppm / H2S 0-100 ppm / NH3 0-100 ppm up to 0-1,000 ppm / Cl2 0-10 ppm / O2 0-25 % vol / CO2 0-5 % vol (IR) / CH4 LEL (IR) / refrigerants R-22, R-32, R-410A, R-1234yf 0-2,000 ppm / VOC by PID
- Power
- 115-220 VAC, 3 conductor; 2 W maximum
- Protection
- EMI filter; 4-20 mA and RS-485 surge suppression
- Display
- 102 x 64 graphical LCD, transflective, white LED backlight
- Outputs
- 4-20 mA (3-wire), fault terminal, RS-485 Modbus; optional 900 MHz or 2.4 GHz radio
- Alarms
- 2 individually configurable relay set points; optional 3-colour LED perimeter lights and audible alarm (not with relays)
- Temperature Range
- -40 to +70 °C
- Enclosure
- Polycarbonate with clear window; NEMA 1, 4, 4X and 6; IP66; UL 508 and UL 746C (f1)
- Use
- Non-hazardous areas only
- Controllers
- AirLink 7010, AirLink 7032, Beacon 110, 200, 410A and 800
- Dimensions
- 5 x 5 x 5 in
- Weight
- 5 lb
- Warranty
- 1 year, electronics and sensor (2 months for PID with 11.7 eV lamp)
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
RKI Instruments · Fixed Gas Detector| Spec | This model RKI Air Alert Standalone Toxic Gas Detector / TransmitterPrice on quote
|  RKI VOC Pro Explosion-Proof PID VOC Detector / TransmitterPrice on quote
|  RKI T2A Explosion-Proof Toxic Gas Detector / Transmitter (2-Wire)Price on quote
|  RKI AirLink T3A Wireless Explosion-Proof Gas DetectorPrice on quote
|
|---|---|---|---|---|
| Power | 115-220 VAC | 12 to 35 VDC | 12 to 35 VDC | 12 to 35 VDC |
| Temperature | -40 to +70 °C | -40 to +54 °C | -40 to +60 °C | -40 to +60 °C |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
