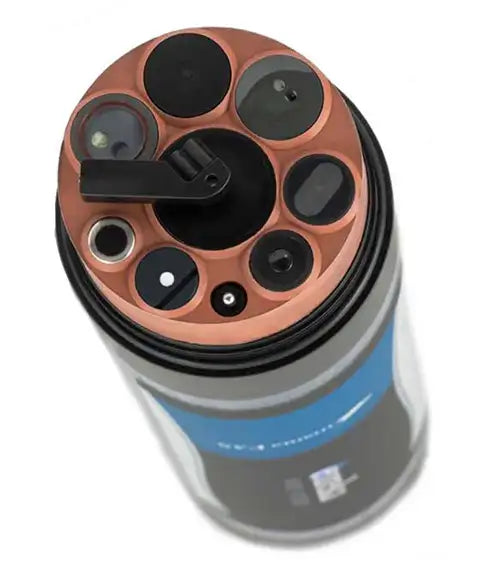

The Solinst Eureka Manta F35 is the Manta+35 fitted with a copper-filled silicone nose cone that covers the sensor bodies, and a central wiper that keeps the measurement surfaces clean. Built for long deployments in fresh and salt water where algae, slime, silt and barnacles foul the sensors.
- Copper-filled silicone nose cone covers every sensor body except the measurement surfaces; copper-less and silver-impregnated nose cones also available
- Central wiper keeps the measurement surfaces clean during continuous deployments
- Nose cone removes easily for sensor maintenance and reduces the volume of calibration solution needed
- Same standard sensors as the Manta+35: turbidity, temperature, pH, conductivity, optical dissolved oxygen; ORP and depth optional
- Up to 3 fluorometers (chlorophyll a, blue-green algae, rhodamine, CDOM/FDOM, oil and more); PAR, CO2, TDG and ISE sensors are not available on the F35
- Logs more than 1,000,000 readings at 1 Hz; RS-232, SDI-12, MODBUS, USB or Bluetooth (with the mantaMobile and MantaLink app)
- Depth rated to 200 m (15 m maximum for ISE and total dissolved gas sensors); operating range -5 to 50 °C
- Add an internal or external battery pack to turn the probe into a self-powered logger, or connect it to a telemetry station
- 3-year warranty that covers all components, including the sensors
Configured to order: choose the sensors, underwater cable length (3 to 200 m), battery pack and SDI-12 / MODBUS output when you request a quote. Read it in the field with the mantaMobile Bluetooth device and the free MantaLink app (iOS / Android), or on a PC with the Manta Control Software. Request a quote for pricing and availability.
Specifications
- Diameter
- 3.5 in (89 mm)
- Length (with guard)
- 21 in without battery pack / 22.5 in with internal battery pack / 28.5 in with external Li-ion battery pack
- Weight (with guard)
- 7.75 lb without battery pack / 8.75 lb with internal battery pack / 10 lb with external battery pack
- Internal Battery Pack
- 6 x C cells
- Anti-Fouling
- Copper-filled silicone nose cone (copper-less and silver-impregnated versions available) + central wiper
- Optional Sensors
- ORP (with pH), depth (occupies one medium port), up to 3 fluorometers
- Not Available
- PAR, CO2, total dissolved gas and ISE sensors
- Temperature
- -5 to 50 °C / resolution 0.01 / accuracy ± 0.1 °C (no calibration required)
- pH
- 0 to 14 units / resolution 0.01 / accuracy ± 0.1 within 10 °C of calibration (± 0.2 otherwise); refillable reference
- ORP (with pH)
- -999 to 999 mV / resolution 0.1 / accuracy ± 20 mV
- Specific Conductance
- 0 to 5000 µS/cm ± 0.5% of reading or ± 1; 0 to 100 mS/cm ± 1% of reading; 100 to 275 mS/cm ± 2% of reading; four graphite electrodes
- Dissolved Oxygen (optical)
- 0 to 20 mg/L ± 0.1; 20 to 30 mg/L ± 0.15; 30 to 50 mg/L ± 5% of reading; 0 to 500% saturation; typical cap life over 6 years
- Turbidity (wipered)
- 0 to 1000 FNU ± 0.3 FNU or ± 2% of reading; 1000 to 4000 FNU ± 4% of reading
- Depth (optional)
- 0 to 25 m ± 0.05 m or 0 to 200 m ± 0.4 m; vented 0 to 10 m ± 0.003 m
- Calculated
- Salinity 0 to 70 PSU; TDS 0 to 65 g/L
- Fluorometers (medium sensors)
- Chlorophyll a (blue 0 to 100 µg/L / red 0 to 500 µg/L), phycocyanin and phycoerythrin (blue-green algae), rhodamine, CDOM/FDOM, optical brighteners, tryptophan, fluorescein, PTSA, refined oil, crude oil
- Data Memory
- More than 1,000,000 logged readings
- Sample Rate
- 1 Hz
- Communications
- RS-232, SDI-12, MODBUS, USB or Bluetooth (mantaMobile)
- Depth Rating
- 200 m (15 m maximum for ISE and TDG sensors)
- Operating Temperature
- -5 to 50 °C
- Included
- Weighted sensor guard, storage / calibration cup, temperature sensor, internal logging memory, marine connector, maintenance kit, data cable, RS-232 to USB adaptor, Manta Control Software (Windows), electronic manual
- Warranty
- 3 years, all components including sensors
