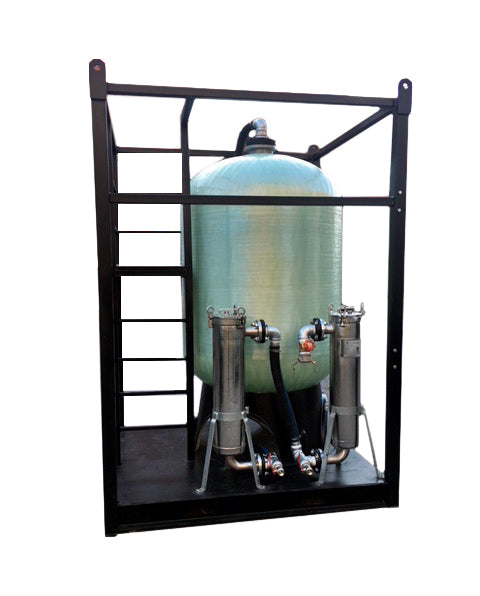

How the WATERPODS 45™ Works

Contaminated water is pumped through a staged treatment train: a 25-micron bag filter for coarse solids, a 10-micron bag filter for finer particulate, then a carbon (or alternate media) vessel before discharge. The train can be reconfigured by adjusting the valves to suit the contaminant profile.

The carbon stage uses Acid Washed UltraSorber™ bituminous coal carbon (Model No. BC-830) for removal of BTEX, chlorinated solvents and PAH. An optional UltraSorber™ Plus Clay media targets dissolved minerals, oil and grease, and the vessel can be filled half carbon / half clay. Media may need to be filled on site.

Key Specifications

Options

• UltraSorber™ Carbon — Acid Washed bituminous coal carbon (BC-830) for removal of BTEX, chlorinated solvents and PAH.
• UltraSorber™ Plus Clay — selected clay media for removal of dissolved mineral, oil and grease; can be filled half carbon / half clay.

Compounds Removed

• Benzene, Toluene, Ethylbenzene, Xylenes (BTEX)
• Trichloroethane, Tetrachloroethene, 1,1,1-trichloroethane, 1,2-dichloroethane
• Methyl tert-butyl ether (MTBE)
• Polynuclear aromatic hydrocarbons (PAH)
• Pesticides, Herbicides
• Polychlorinated biphenyls (PCB)
• Chlorine

Applications

• Excavation dewatering and dewatering
• Spills
• Process water and wastewater
• De-sedimentation (sand or mix-bed media)
• Potable water
