Micron rating is the single most misunderstood specification in filter bag selection. Choose too coarse and contaminants pass through. Choose too fine and you get premature clogging, excessive pressure drop, and unnecessarily high operating costs. This guide explains what micron ratings actually mean, how they map to common industrial applications, and how to select the right filtration level for your process — whether you're polishing pharmaceutical water at 1 micron or straining intake water at 200 microns. For a broader overview of filter bag selection (materials, sizes, housing compatibility), start with our complete industrial filter bag selection guide.
What Is a Micron?
A micron (µm) is one millionth of a metre, or one thousandth of a millimetre. When a filter bag is rated at 50 microns, it means the bag is designed to capture particles 50µm and larger from your process stream.
To put that in perspective:
| Reference | Size (µm) |
|---|---|
| Human hair (diameter) | ~70 |
| Grain of table salt | ~300–500 |
| Grain of sand | ~500 |
| White blood cell | ~10–15 |
| Bacteria | ~1–5 |
| Smallest visible particle (naked eye) | ~40 |
Most industrial liquid filtration operates between 1µm and 200µm. Below 1µm, you're typically in cartridge filter or membrane territory. Above 200µm, you're closer to straining than filtration.
Nominal vs. Absolute Micron Ratings
Not all micron ratings mean the same thing. The distinction between nominal and absolute ratings is critical for proper filter bag selection.
Nominal Ratings (Felt Bags)
A nominal rating means the bag captures a stated percentage — typically 60–90% — of particles at the rated size. A "50 micron nominal" polypropylene felt bag will stop most particles at 50µm, but some will pass through. The felt structure works through depth filtration: particles take tortuous paths through the fibre matrix and get trapped at various depths. This gives felt bags high dirt-holding capacity but a less precise cut-point.
Sampson PLATINUM polypropylene felt and polyester felt bags use nominal ratings. They are the standard choice when you need bulk particulate removal and high throughput at low cost per bag.
Absolute Ratings (NMO Bags)

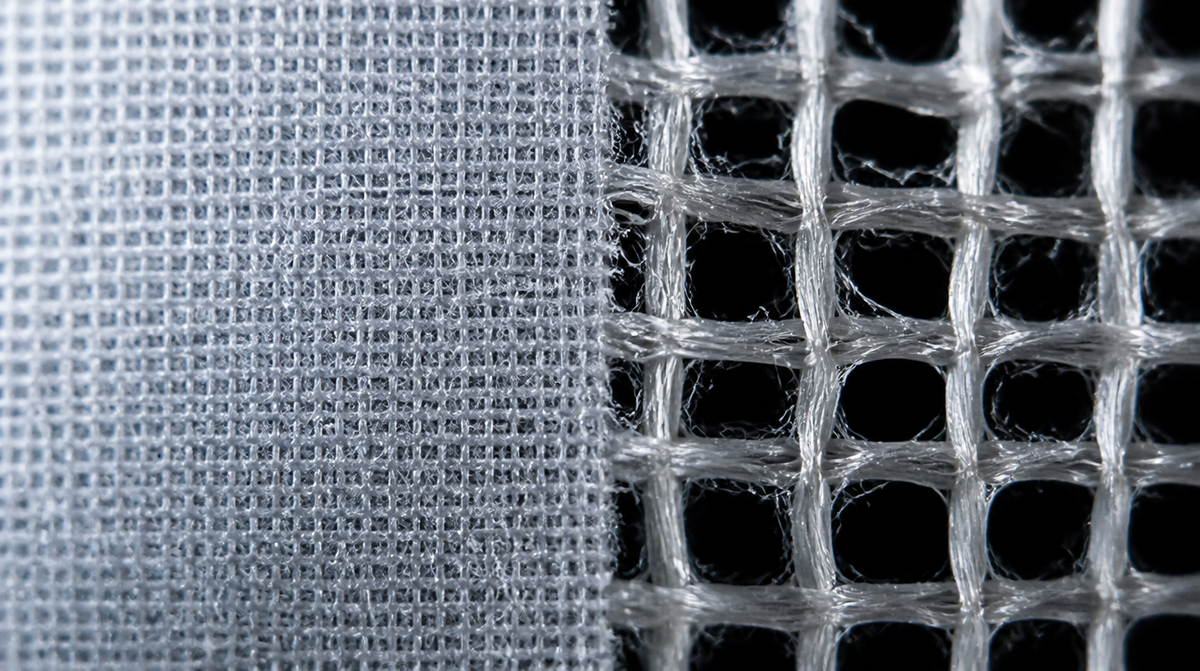

An absolute rating means the bag stops 99%+ of particles at the rated size. Nylon monofilament (NMO) bags achieve this through a woven mesh with uniform, precisely sized openings. Every opening is the same diameter — if a particle is larger than the mesh opening, it does not pass through.
NMO bags are the right choice when you need a sharp, predictable cut-point — particle classification in food processing, resin recovery, plating bath filtration, or any application where "most particles" captured isn't good enough. For a deeper comparison of bag materials, see our polypropylene vs. nylon vs. polyester filter bags guide.
Micron Rating Selection by Application
The table below maps common micron ratings to their typical industrial applications. Use this as a starting point — your specific process conditions (particle size distribution, flow rate, chemical compatibility, and downstream equipment tolerances) will determine the final selection.
| Micron Rating | Filtration Level | Typical Applications | Recommended Material |
|---|---|---|---|
| 1 µm | Ultra-fine polishing | Final polishing, pharmaceutical water, electronics rinse water, high-purity process fluids | Polypropylene felt or polyester felt |
| 5 µm | Fine filtration | Drinking water pre-treatment, metalworking coolant, electroplating solutions, ink and paint filtration | Polypropylene felt, NMO (where precision cut needed) |
| 10–25 µm | General process filtration | Groundwater treatment, process water, chemical processing, food and beverage | Polypropylene felt (cost), NMO (reusability) |
| 50 µm | Moderate filtration | Cooling tower water, irrigation, wash water recycling, pre-filtration for finer downstream stages | Polypropylene felt or NMO |
| 100 µm | Coarse pre-filtration | Bulk pre-filtration, pump and equipment protection, stormwater, general intake | NMO (reusable, lower cost per cycle) |
| 200 µm | Straining / debris removal | Intake straining, debris removal, large particle scalping, protecting downstream filtration stages | NMO |
Sampson PLATINUM filter bags are available in 21 micron ratings from 1µm to 1200µm — in polypropylene felt, polyester felt, and nylon monofilament (NMO). Standard sizes #1 through #4 with plastic or steel ring tops. See our filter bag sizes and compatibility guide for housing-to-bag matching.
The Over-Filtering Trap: Why Finer Isn't Always Better
The most common mistake in filter bag selection is choosing a micron rating finer than the application requires. The logic seems sound — "if 50 micron is good, 5 micron must be better" — but the operational consequences are real and measurable:
- Higher pressure drop. Finer bags restrict flow more aggressively. The finer the bag, the more energy your pump consumes pushing liquid through it — and the sooner you hit the maximum differential pressure that triggers a bag change.
- Shorter bag life. A 5µm bag on a 50µm application loads with particulate many times faster than a 50µm bag. Instead of changing bags monthly, you may be changing them weekly.
- Higher cost per unit filtered. More frequent changes mean more bags purchased, more labour for change-outs, and more process downtime. A $15 bag changed 4x as often costs $60 — not $15.
- No improvement in downstream quality. If your process only needs to remove particles above 50µm, capturing particles at 5µm adds cost without adding value. The downstream equipment doesn't benefit from cleaner-than-necessary fluid.
The rule: match your micron rating to the largest particle size your downstream process or equipment cannot tolerate. Filter to specification, not to the finest available option.
Multi-Stage Filtration: Coarse to Fine
Many industrial processes benefit from a staged approach rather than a single filtration step. A well-designed multi-stage system extends the life of every element in the chain and reduces total operating cost.
A Typical Three-Stage Approach
- Stage 1 — Coarse bag (100–200µm): Removes large debris, sediment, and bulk particulate. Protects downstream equipment and extends the life of finer filtration stages. An NMO bag at this stage can be washed and reused, keeping costs low.
- Stage 2 — Fine bag (5–50µm): Removes the mid-range particulate that the coarse stage passes. A polypropylene felt bag at this stage handles the bulk of the dirt-holding work.
- Stage 3 — Cartridge polish (1µm or sub-micron): Final polishing for critical applications. Because Stages 1 and 2 have removed 95%+ of the particulate, the cartridge sees very little dirt and lasts dramatically longer.
Without the upstream bag stages, a 1µm cartridge filter exposed to raw process water would plug in hours or days. With proper pre-filtration, the same cartridge can run for weeks or months. The bags are inexpensive; the cartridges are not. Staged filtration is how you keep total cost of ownership down.
For housing configuration options that support multi-stage setups, see our guide to multi-bag, single-bag, and duplex filter housings.
How to Determine Your Target Particle Size
Selecting the right micron rating starts with knowing what you need to remove. There are three common paths to determining your target particle size:
1. Water Quality or Process Fluid Testing
A lab analysis of your process fluid gives you a particle size distribution — a breakdown of how many particles exist at each size range. This is the most reliable basis for filter selection. If your fluid shows a high concentration of particles between 20µm and 80µm with negligible content below 10µm, a 25µm bag removes the bulk of the contamination without over-filtering.
2. Downstream Equipment Specifications
Many pumps, heat exchangers, spray nozzles, and instruments specify a maximum particle size in their installation manual. A spray nozzle with a 100µm orifice needs filtration at or below 100µm to prevent clogging. Work backward from the most particle-sensitive component in your system.
3. Regulatory or Industry Limits
Discharge permits, food safety standards, and pharmaceutical specifications define maximum allowable particle sizes or turbidity levels. These regulatory limits set a non-negotiable floor for your filtration system. When regulatory requirements apply, select a micron rating that provides margin — if the limit is 25µm, consider filtering at 10µm to ensure compliance under varying conditions.
When in doubt: start with a moderate rating (25–50µm), measure your results, and adjust. It is easier and cheaper to tighten filtration from 50µm to 25µm than to troubleshoot why a 1µm bag keeps plugging on a line that only needed 50µm filtration.

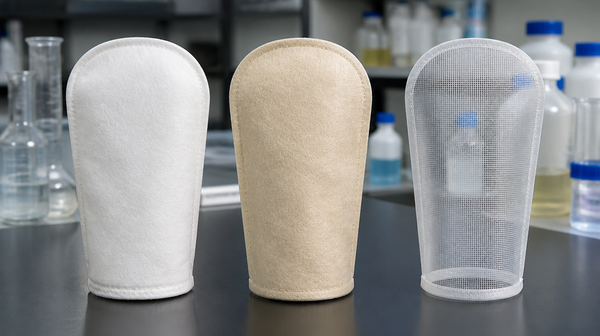

Matching Material to Micron Rating
Micron rating and bag material work together. The wrong combination undermines performance even if the micron number is correct.
| Micron Range | Best Material Choice | Why |
|---|---|---|
| 1–25 µm | Polypropylene felt (general) or polyester felt (high-temp) | Depth filtration excels at fine ratings — high dirt-holding capacity, low cost per bag. NMO at these ratings has very tight mesh openings that restrict flow. |
| 25–100 µm | Either felt or NMO | The crossover zone. Felt for maximum dirt loading and disposable convenience. NMO for precise cut-point and reusability. |
| 100–1200 µm | NMO | Coarse felt bags lose their depth-filtration advantage at large micron ratings. NMO provides a clean cut-point, and at these sizes the mesh is open enough for high flow with low pressure drop. Washable for repeated use. |
For chemical compatibility considerations (temperature limits, solvent resistance, acid/alkali tolerance), see our filter bag material comparison guide. For housing compatibility and bag dimensions, refer to the bag filter housing sizing guide.
Need help selecting the right micron rating?
ERE's filtration team can recommend the right bag material, micron rating, and housing configuration for your application. We stock the full range of Sampson PLATINUM filter bags — from 1µm to 1200µm in polypropylene felt, polyester felt, and NMO — with same-day shipping across Canada.
Frequently Asked Questions
What micron filter bag do I need for water filtration?
It depends on the application. Drinking water pre-treatment typically requires 1–5µm. General process water and groundwater treatment usually call for 10–25µm. Cooling tower and irrigation systems often use 50µm. Intake straining and debris removal may only need 100–200µm. Start with a particle size analysis of your water source if available, or match to the tolerance of your downstream equipment.
What is the difference between nominal and absolute micron ratings?
A nominal rating (used for felt bags) means the bag captures approximately 60–90% of particles at the stated size — some particles at or near the rated size will pass through. An absolute rating (used for NMO/mesh bags) means 99%+ capture at the rated size. Choose absolute when you need a precise, guaranteed cut-point; choose nominal when bulk removal efficiency at low cost is the priority.
Can I use a 1 micron filter bag instead of a 50 micron bag?
Technically yes, but it is almost always a bad idea. A 1µm bag on a 50µm application will clog rapidly, require frequent change-outs, increase pressure drop, consume more pump energy, and cost significantly more to operate — all without meaningful improvement in downstream fluid quality. Always match your micron rating to your actual particle removal requirement, not to the finest available option.
How do I know when to change my filter bag?
Monitor the differential pressure across your bag filter housing. Most housings are equipped with pressure gauges on the inlet and outlet. When the pressure differential reaches the manufacturer's recommended maximum (typically 15–25 PSI for liquid bag housings), the bag is loaded and needs replacement. Do not rely on a fixed time schedule — dirt loading varies with process conditions.
