Standard filter bag sizes are universal across manufacturers, but ordering the wrong size or ring type is one of the most common purchasing mistakes in industrial liquid filtration. This article covers the four standard bag sizes (#1 through #4), ring type options, housing compatibility rules, and how to identify what you currently run. For a broader overview of filter bag selection — materials, micron ratings, and applications — see our Industrial Filter Bags: Complete Selection Guide.

Quick-Reference: Standard Filter Bag Sizes

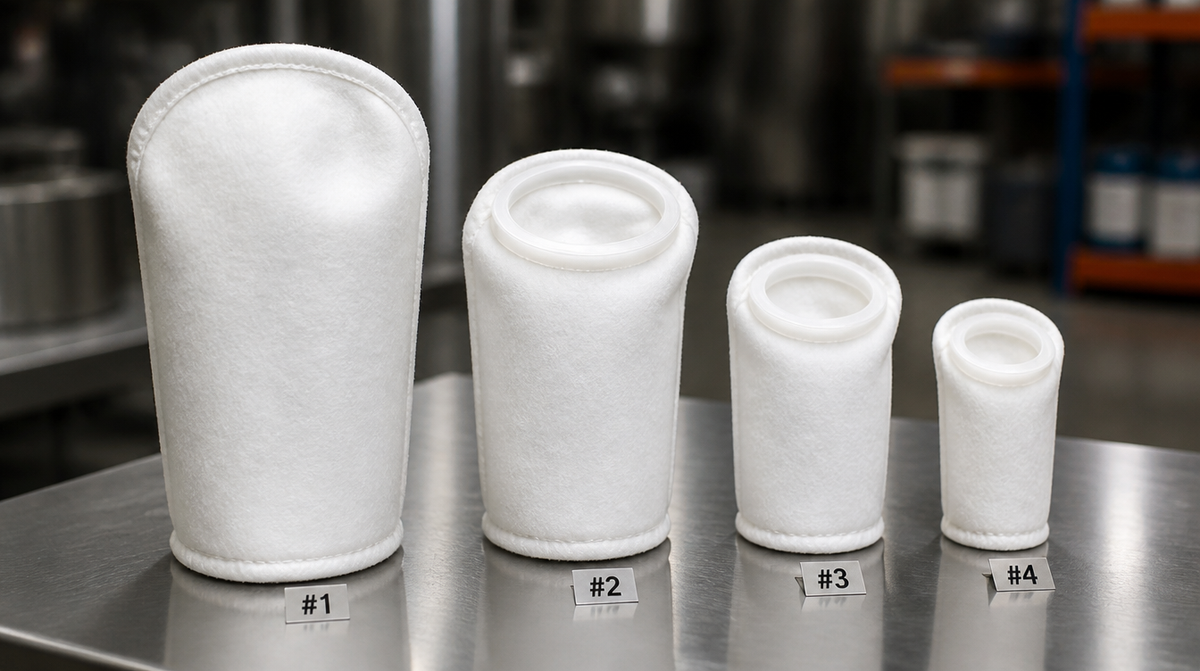

The industry uses four standard filter bag sizes, numbered #1 through #4. The number refers to the physical dimensions of the bag — not the micron rating, not the material, and not the flow capacity in isolation. Every major manufacturer (including Sampson PLATINUM, stocked by ERE) follows this sizing convention.

Key point: The #1 bag is the most widely used size in North American industrial filtration. If you are setting up a new system and have flexibility in housing selection, the #1 size gives you the broadest range of replacement bag options and the best balance of flow capacity to footprint.

Size #1 vs. Size #2

Both sizes share a 7" diameter. The #2 bag is nearly twice as long (32" vs. 17"), which roughly doubles the filtration surface area. The result: higher flow capacity and longer service life between change-outs. The tradeoff is a taller housing and more vertical clearance needed for bag removal. Facilities with high throughput demands — 120+ GPM through a single bag — typically run #2 bags.

Size #3 vs. Size #4

Both sizes share a 4" diameter, making them suitable for compact housings. The #3 is the smallest standard bag at just 8" long — used for low-flow polishing, pilot systems, or side-stream filtration. The #4 is roughly twice as long and handles moderate flow rates up to 50 GPM. These smaller sizes are less common in heavy industrial settings but standard in pharmaceutical, cosmetic, and food-grade applications where batch sizes are smaller.

Ring Types: Snap Ring vs. Steel Ring

The ring at the top of the filter bag seals it against the housing's retainer plate. A mismatch between ring type and housing means a poor seal, bypass leakage, and contaminated filtrate. Three ring options are standard:

When to Use Each Ring Type

Plastic snap ring is the default for most water treatment, coolant recycling, and general industrial applications. It is the lowest-cost option and works with the majority of standard bag filter housings on the market. If your housing has a snap-ring groove machined into the retainer plate, this is what you need.

Carbon steel ring is required by some older or heavy-duty housing designs that use a flat lip seat rather than a snap groove. It also holds up better at sustained temperatures above 80°C. If you are running a housing from a manufacturer that specifies a steel ring, do not substitute a snap ring — the seal geometry will not match.

Stainless steel ring is functionally identical to carbon steel in fit but adds corrosion resistance. Required for food and beverage processing, pharmaceutical manufacturing, and any application where the ring contacts corrosive fluids. Also required for 3-A or USDA-compliant installations.

Housing Compatibility: Size Must Match

Filter bags are not cross-compatible between housing sizes. A #1 bag fits only a #1 housing. A #4 bag fits only a #4 housing. There is no adapter, no workaround, and no "close enough."

The reason is simple: the bag must seat flush against the housing's internal basket (perforated support liner) and seal at the retainer plate. A bag that is too small will collapse, bypass fluid around the edges, and defeat the purpose of filtration. A bag that is too large will bunch up, create uneven flow distribution, and fail prematurely.

For a detailed guide on matching housings to bags, see Bag Filter Housings: Sizing & Selection Guide.

Multi-Bag Housings

Multi-bag filter housings hold 2, 4, 8, or more bags in parallel inside a single vessel. Each bag position still accepts a standard-size bag — typically #1 or #2. The housing size designation (e.g., "4-bag #2 housing") tells you both the count and the bag size. When ordering replacement bags for a multi-bag system, confirm the per-bag size, not just the housing model number. More on multi-bag configurations: Multi-Bag vs. Single-Bag vs. Duplex Filter Housings.

How to Identify Your Current Filter Bag Size

If you are reordering filter bags and are unsure which size you run, use one of these methods:

1. Check the housing nameplate. Most bag filter housings have a tag or stamp on the body or lid that includes the bag size designation (#1, #2, #3, or #4). This is the fastest and most reliable method.
2. Measure the existing bag. Pull a used bag (or an unused spare) and measure the diameter and length:
   • 7" diameter, ~17" long → #1
   • 7" diameter, ~32" long → #2
   • 4" diameter, ~8" long → #3
   • 4" diameter, ~15" long → #4
3. Check previous purchase records. If you have a past PO or invoice from your filter bag supplier, the bag size number will be listed in the line item description.
4. Contact your housing manufacturer or distributor. Provide the housing model number and they can confirm the compatible bag size.

Note on ring type identification: If your existing bag has a flexible plastic ring that clicks or snaps when pressed, it is a snap ring. If it has a rigid metal ring, check for rust (carbon steel) or a bright/brushed finish (stainless steel). When in doubt, specify the housing make and model when ordering — your distributor can cross-reference the correct ring type.

Common Ordering Mistakes

After years of supplying Sampson PLATINUM filter bags across Canada, these are the ordering errors we see most often:

1. Wrong ring type for the housing. This is the most frequent mistake. A snap-ring bag in a steel-ring housing (or vice versa) will not seal properly. Always confirm your housing's ring type before ordering — do not assume it matches a previous supplier's default.
2. Confusing bag size number with micron rating. A "#1 bag" refers to the 7"x17" size, not a 1-micron rating. Micron ratings are specified separately (e.g., 1 micron, 5 micron, 25 micron, 100 micron). Always specify both size and micron rating on your order.
3. Ordering the wrong size for a multi-bag housing. Multi-bag housings typically use #1 or #2 bags. Ordering #4 bags for a multi-bag housing that takes #2 bags is a costly error — the bags will not fit. Verify per-bag size from the housing documentation.
4. Switching materials without verifying chemical compatibility. If you are changing from polyester felt to polypropylene (or vice versa), confirm the new material is compatible with your process fluid. Material affects chemical resistance and temperature limits — see Polypropylene vs. Nylon vs. Polyester Filter Bags for a detailed comparison.
5. Forgetting to specify the ring type entirely. Some purchase orders list only the bag size and micron rating but omit the ring type. This forces the supplier to guess or call back for clarification — delaying your order. Always include all three: size, micron, and ring type.

Sampson PLATINUM Filter Bags: What ERE Stocks

ERE Inc. supplies Sampson PLATINUM filter bags manufactured by Industrial Filter Manufacturing Inc. Available in all four standard sizes (#1 through #4), three materials (NMO nylon monofilament, polyester felt, polypropylene felt), and all three ring types (plastic snap ring, carbon steel ring, stainless steel ring). Packed 50 per box.

Micron ratings range from 1 to 200 microns depending on material. For guidance on selecting the right micron rating, see Filter Bag Micron Ratings: How to Choose.

Frequently Asked Questions

Are filter bag sizes universal across manufacturers?

Yes. The #1, #2, #3, and #4 size designations are industry-standard. A #1 bag from any manufacturer will have the same nominal dimensions (7"x17") and fit any standard #1 housing. Where bags differ between manufacturers is material quality, seam construction, ring finish, and micron consistency — not physical size.

Can I use a #1 filter bag in a #2 housing?

No. A #1 bag is 17" long; a #2 housing is designed for a 32" bag. The #1 bag would sit far above the housing outlet, leaving a large unfiltered bypass zone. Bags must match the housing size number exactly — there is no cross-compatibility.

How do I know if I need a snap ring or steel ring filter bag?

Check your housing's retainer plate. If it has a machined groove that the ring clicks into, you need a snap ring. If it has a flat lip or ledge that the ring rests on, you need a steel ring (carbon or stainless, depending on your application). The housing manufacturer's documentation will specify the ring type. When in doubt, contact your distributor with the housing make and model.
