Specifications

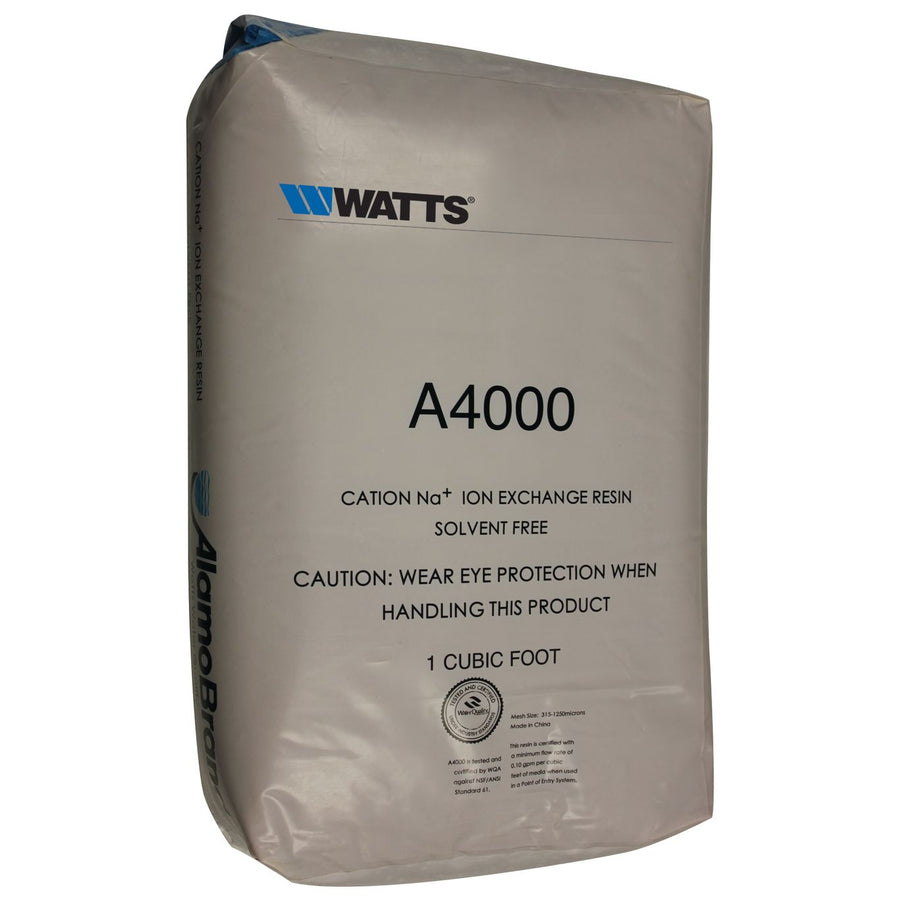

| Resin Type | Strong acid cation (SAC) gel, polystyrene-DVB, 8% crosslink, Na+ form |
|---|---|
| Application | Water softening (hardness removal); H+ form for DI |
| Bead / Mesh Size | 16 x 50 mesh; 300–1200 µm; effective size 0.45 ± 0.07 mm |
| Uniformity Coefficient | ≤ 1.6 |
| Total Capacity | ≥ 2.0 eq/L (Purolite C100E 1.9 eq/L) |
| Bed Depth | > 30 in |
| Service Flow | 2–5 GPM/ft³ |
| Freeboard / Backwash Expansion | 50% of bed depth |
| Regeneration | NaCl 5–25% solution at 0.25–0.5 GPM/ft³ |
| pH Range | 0 – 14 |
| Temperature Limit | Up to 120°C (248°F) |
| Certification | WQA certified to NSF/ANSI 61 |
| Packaging | 1 cu ft / bag · 52 lbs · 40 per pallet |
