Government of QuébecOverview

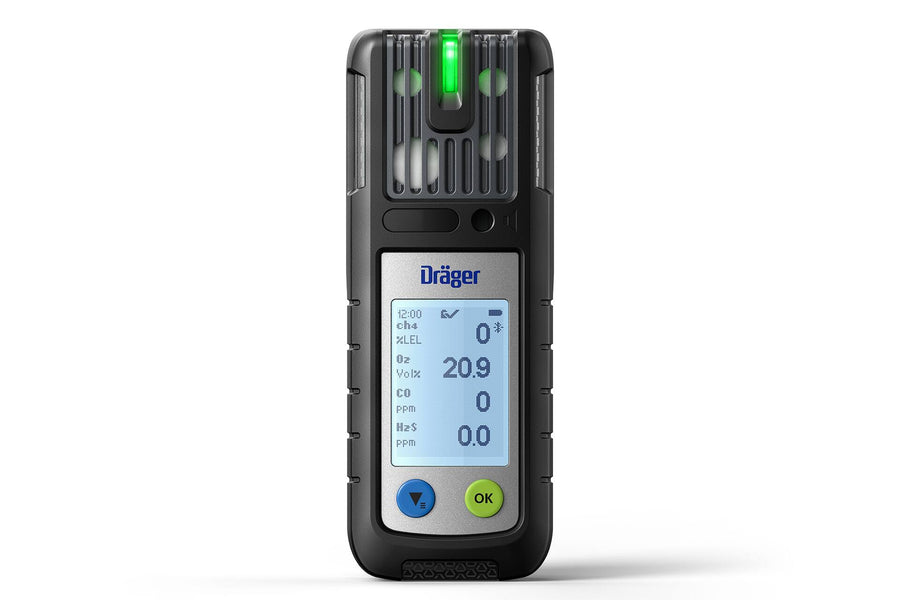

The Dräger X-am 2800 is a 1 to 4 gas personal monitor for flammable gases and vapours, O2, CO, H2S, NO2 and SO2. It carries the shock-resistant CatEx SR sensor, sends its data by Bluetooth to Dräger Gas Detection Connect and, with the Dräger X-am Pump, also handles clearance measurement before confined space entry.
- Measures 1 to 4 gases: Ex (CatEx SR), O2, CO, H2S, NO2 or SO2
- CatEx SR sensor resists shocks and calibrates within seconds; set for methane, propane, hydrogen, nonane and more
- IP68 and drop tested above 2 m (6 ft); approved for Ex zone 0 and cCSAus Class I Div 1
- Oxygen channel with four alarm thresholds; red gas and yellow device alarm LEDs, horn over 90 dB at 30 cm
- Bluetooth 5.0 to Dräger Gas Detection Connect; works with the X-dock and the Bump Test Station
- Rechargeable NiMH power pack: about 12 hours with Bluetooth on, replaced with one screw
- Large buttons for gloved hands; the green D-light shows the unit is tested and ready
- Warranty: 4 years on the device, 5 years on the XXS O2, CO and H2S sensors
Ex = CatEx SR. Other sensor combinations, alarm settings, the X-am Pump and the X-dock are available. Request a quote for pricing and availability.
Specifications
- Gases
- Ex (CatEx SR), O2, CO, H2S, NO2 or SO2: 1 to 4 gases
- Sensor Slots
- 1 x CatEx SR, 3 x DrägerSensor XXS
- Dimensions (W x H x D)
- 130 x 48 x 44 mm (5.12 x 1.89 x 1.73 in)
- Weight
- Typically 220 to 250 g (7.76 to 8.82 oz), depending on sensors
- Operating Temperature
- -20 to +50 °C (-4 to 122 °F)
- Pressure
- 700 to 1,300 mbar
- Humidity
- 10 to 95 % RH (5 to 95 % short term)
- Ingress Protection
- IP68
- Alarms
- 3 red LEDs (gas alarm), 3 yellow LEDs (device alarm), multi-tone horn over 90 dB at 30 cm (12 in)
- Power
- NiMH battery, rechargeable, replaceable by the user
- Operating Time
- Approx. 12 h with Bluetooth on; typically 100 h without the Ex sensor
- Charging Time
- Under 4 h
- Ready to Measure
- Under 60 s after switch-on
- Connectivity
- Bluetooth 5.0; Dräger Gas Detection Connect, X-dock, CC-Vision / Gas Vision
- Approvals
- cCSAus Class I Zone 0 AEx da ia IIC T4 Ga, Class I Div 1 Groups A B C D, Class II Div 1 Groups E F G; ATEX; IECEx
- Warranty
- 4 years device; 5 years XXS O2, CO and H2S; 3 years CatEx SR and XXS O2 PR; 2 years NO2, SO2 and battery pack
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Parts & accessories
-
Price on quote
-
Price on quote
-
Price on quote
Compare with similar models
Dräger · Portable Gas Detector| Spec | This model Dräger X-am® 2800 Multi Gas Detector, 1 to 4 GasesPrice on quote
|  Dräger X-zone® 5800 Wireless Area Monitor for X-am Gas DetectorsPrice on quote
|  Dräger X-am® 3500 Multi Gas Detector with Integrated PumpPrice on quote
|  Dräger X-am® 5800 Multi Gas Detector, up to 6 GasesPrice on quote
|
|---|---|---|---|---|
| Gases | 1 to 4 | — | 1 to 4 | 1 to 6 |
| Weight | 220 g | 10 kg | — | 220 g |
| Operating Time | 12 h | 120 h | 24 h | — |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
