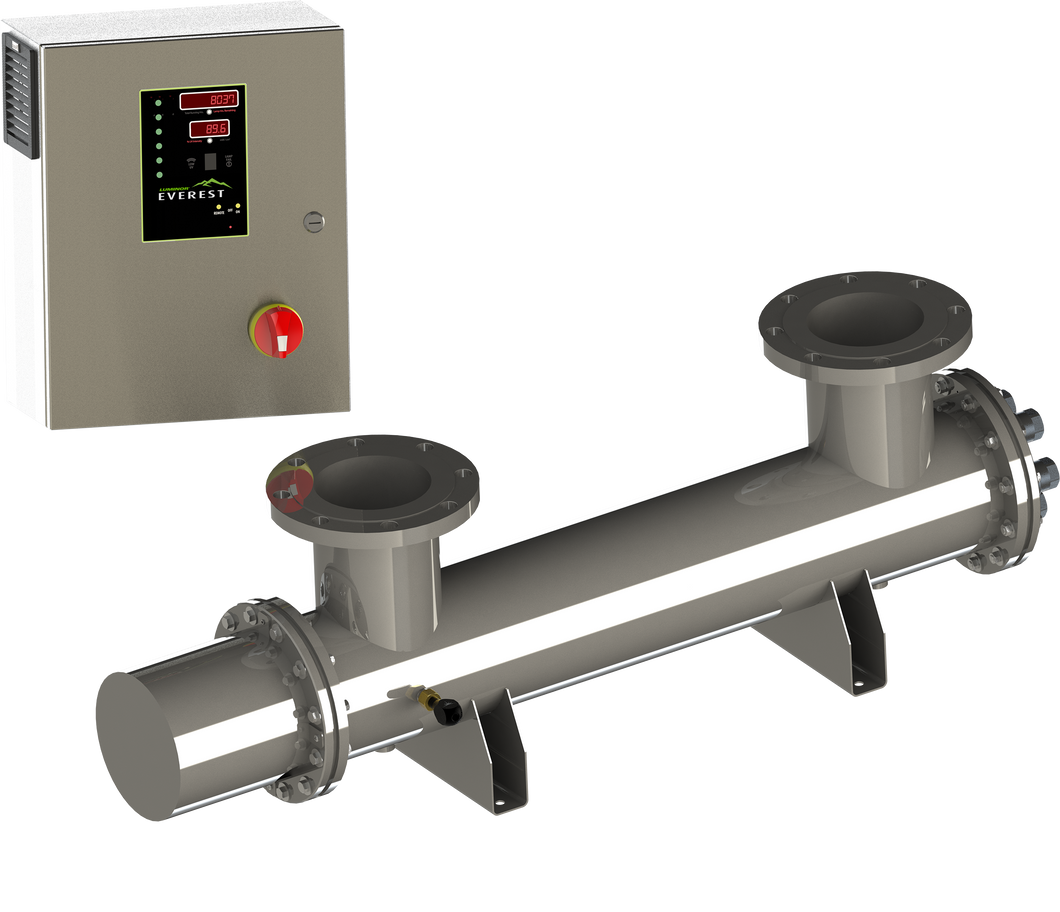

LUMINOR's EVEREST 5.0 model is an Industrial & Municipal UV water treatment system designed with upgradeability in mind. The reactor comes with an integral UV sensor port that will accept the addition of an optional UV sensor module at a future date.
Designed & manufactured to ASME pressure vessel standards, these 316L stainless steel reactors are fully flanged on one end to allow for easy internal access. Using the most powerful, coated, low pressure amalgam UV lamps, EVEREST models offer a 12,000 hour rated lamp life.
Monitoring is provided through an integral display which outputs remaining lamp life, total running hours, audible & visual lamp failure, remote-on and dry contacts.
Packaged with constant current electronic ballasts and housed in a NEMA 12 stainless steel control panel, three models are available in flow rates of 2013, 2957 & 3468 LPM (530, 780 & 915 GPM).
(@ 16 mJ/cm²)
(@ 30 mJ/cm²)
(@ 40 mJ/cm²)
208 - 240V ± 10% / 50-60Hz
316L Stainless Steel, A249 Pressure Rated Tubing,
Polished & Passivated
See Diagram Below
16.4 x 22 x 10.6”
|Maximum Operating Pressure|
10.3 bar (150 psi)
|Operating Temperature Range|
2-40° C (36-104° F)
|254nm UV Intensity Monitor|

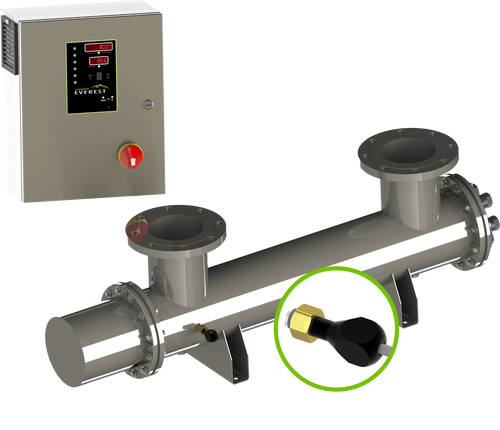

Optional / Upgradeable (5.0), YES (6.0)
|Dry Contacts (Solenoid-ready)|
|4-20 mA Output|
|Lamp Age Counter|
|Visual Lamp-Out Indicator|
|Audible Lamp-Out Alarm|
*Port sizes are based on flow rates for 30mJ/cm2 or higher doses.
