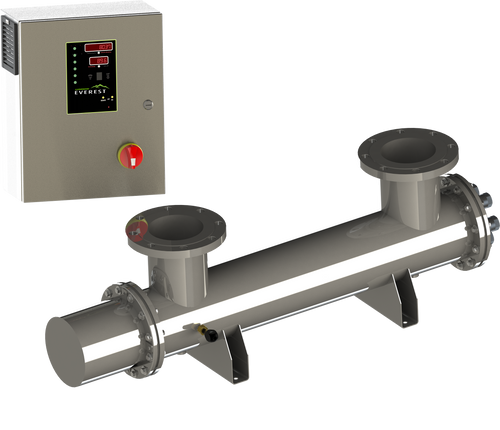

LUMINOR's EVEREST 6.0 model includes a discrete 254nm Teflon™-based UV sensor and integral 4-20mA output and solenoid ready capabilities.

Designed & manufactured to ASME pressure vessel standards, these 316L stainless steel reactors are fully flanged on one end to allow for easy internal access. Using the most powerful, coated, low pressure amalgam UV lamps, EVEREST models offer a 12,000 hour rated lamp life.

Monitoring is provided through an integral display which outputs remaining lamp life, total running hours, audible & visual lamp failure, remote-on and dry contacts.

Packaged with constant current electronic ballasts and housed in a NEMA 12 stainless steel control panel, three models are available in flow rates of 2013, 2957 & 3468 LPM (530, 780 & 915 GPM).

Part Number

LU-LE5/6-A42

LU-LE5/6-A62

LU-LE5/6-A72

Flow Rate*
(@ 30 mJ/cm²)

530 gpm

780 gpm

915 gpm

2013 lpm

2957 lpm

3468 lpm

120.8 m³/hr

177.4 m³/hr

208.0 m³/hr

Flow Rate
(@ 16 mJ/cm²)

997 gpm

1464 gpm

1717 gpm

3775 lpm

5545 lpm

6502 lpm

226.5 m³/hr

332.7 m³/hr

390.1 m³/hr

Flow Rate
(@ 40 mJ/cm²)

400 gpm

586 gpm

687 gpm

1510 lpm

2218 lpm

2601 lpm

90.6 m³/hr

133.1 m³/hr

156.0 m³/hr

Port Size

6" Flange

6" Flange

6" Flange

Electrical

208 - 240V ± 10% / 50-60Hz

Lamp Watts

828

1242

1449

Power (Watts)

900

1340

1560

Chamber Material

316L Stainless Steel, A249 Pressure Rated Tubing,
Polished & Passivated

Replacement Lamp

RL-1000A
(4 required)

RL-1000A
(6 required)

RL-1000A
(7 required)

Replacement Sleeve

RQ-K2
(4 required)

RQ-K2
(6 required)

RQ-K2
(7 required)

Reactor Dimensions

See Diagram Below

Controller Dimensions

16.4 x 22 x 10.6”
(42 x 56 x 27 cm)

Maximum Operating Pressure

10.3 bar (150 psi)

Operating Temperature Range

2-40° C (36-104° F)

254nm UV Intensity Monitor

Optional / Upgradeable (5.0), YES (6.0)

Remote-On

Yes

Dry Contacts (Solenoid-ready)

Yes

4-20 mA Output

Yes

Drain Ports

Yes, ½”

Lamp Age Counter

Yes

Visual Lamp-Out Indicator

Yes

Audible Lamp-Out Alarm

Yes

*Note:

*Port sizes are based on flow rates for 30mJ/cm2 or higher doses.
Flow rates for lower doses may not be achievable. Contact factory for custom port sizing.
NOTE: Electrical certification optional for various markets.
