Government of QuébecOverview
Specifications
| Dissolved Oxygen Range | 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation |
|---|---|
| Dissolved Oxygen Resolution | 0.01 ppm (mg/L); 0.1% saturation |
| Dissolved Oxygen Accuracy | ±1.5% F.S. or ±1 digit, whichever is greater |
| Dissolved Oxygen Calibration | one or two points at 0% (HI 7040 solution) and 100% (in air) |
| Dissolved Oxygen Temperature Compensation | automatic from 0 to 50°C (32 to 122°F) |
| Salinity Compensation | 0 to 80 g/L (ppt) (resolution 1 g/L) |
| Altitude Compensation | 0 to 4000 m (resolution 100 m) |
| Temperature Range | 0.0 to 50.0°C / 32.0 to 122.0°F |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.2°C; ±0.4°F (excluding probe error) |

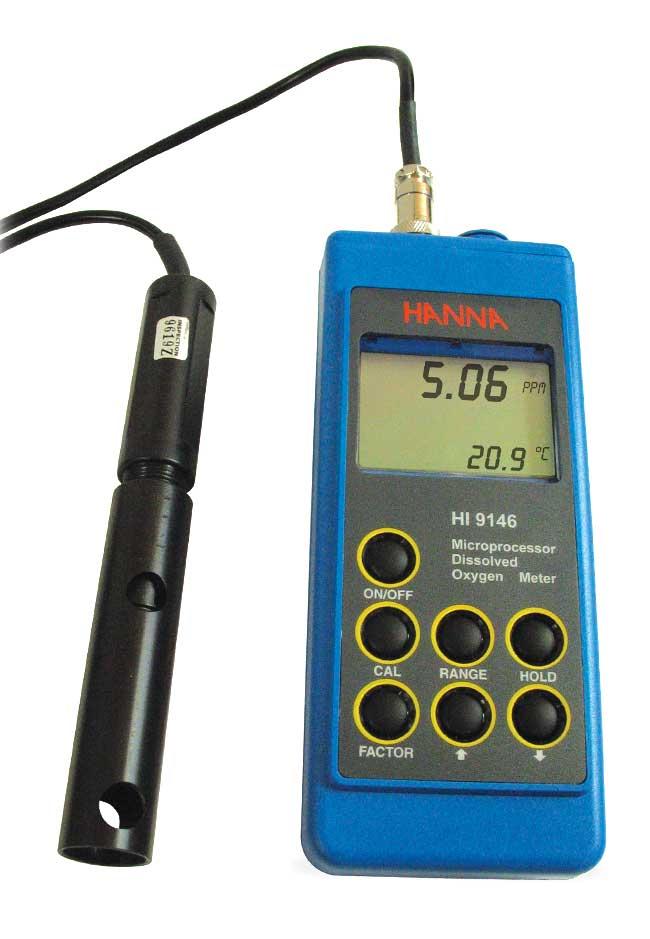

| DO Probe | HI76407 DO probe (included) |
| Battery Type/Life | 1.5V AAA (3) /approximately 200 hours of continuous use without backlight (50 hours with backlight on) |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% |
| Dimensions | 185 x 72 x 36 mm (7.3 x 2.8 x 1.4”) |
| Weight | 300 g (10.6 oz.) |
HA-9146-04 and HA-9146-10 include HA-76407/4F probe with 4 m (13') cable for HA-9146-04 and HA-76407/10F 10 m (33') for HA-9146-10, protective cap, 2 spare membranes, HA-7041S electrolyte solution (30 ml), 4 x 1.5 V batteries, hard carrying case and instructions.
Specifications
• 0.00 to 45.00 mg/L, ± 1.5% F.S. Accuracy for O2 Range
• 0.0 to 300.0% ± 1.5% F.S. Accuracy for % Saturation O2 Range
• 0.0 to 50.0°C ± 0.5°C Accuracy for Temperature Range
• Calibration: Automatic, in air, at 100%
• with 4 m (13’) or 10 m (33’) cable
• 7.7" x 3.1" x 2.4"
• 1.1 lbs
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
