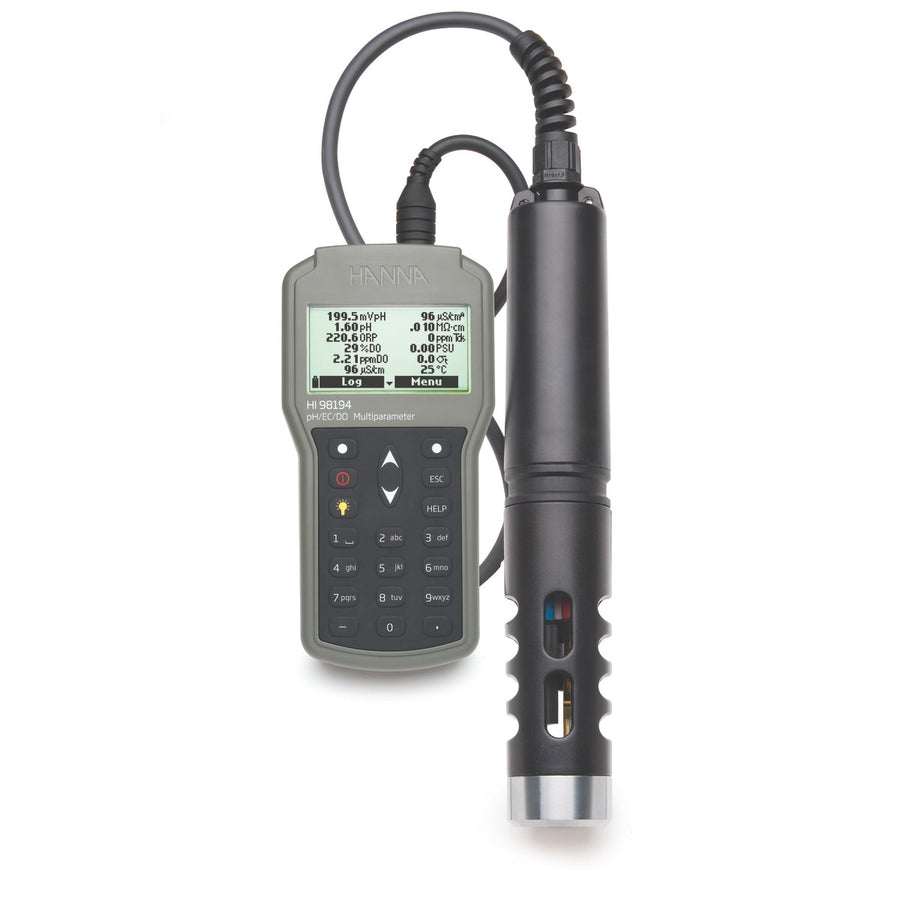

The Hanna HI9819X are waterproof logging multiparameter meters with a digital multi-sensor probe. The HI98194 measures pH, ORP, conductivity, dissolved oxygen, atmospheric pressure and temperature, the HI98195 drops dissolved oxygen and the HI98196 drops conductivity.
- Displays up to 12 parameters at once on a backlit graphic LCD with on-screen help
- Digital probe with color-coded, field replaceable sensors that the meter recognizes automatically
- Meter rated IP67 (1 m for 30 minutes); probe rated IP68 for continuous immersion to 20 m
- Quick Calibration: one solution calibrates pH, conductivity and dissolved oxygen in a single point
- Built-in barometer compensates dissolved oxygen readings automatically
- Logs 45,000 records, continuous or on demand, at 1 second to 3 hour intervals; USB to PC
- CAL Check electrode diagnostics flag calibration problems
- Probe cable from 4 m up to 40 m; supplied as a complete system, ready to measure
Complete systems ship with the probe and the sensors for that model, ready to measure. Request a quote for pricing and availability.
Specifications
- Models
- HI98194: pH, ORP, EC, TDS, resistivity, salinity, seawater σ, DO, pressure, temperature / HI98195: same without DO / HI98196: pH, ORP, DO, pressure, temperature
- pH Range / Accuracy
- 0.00 to 14.00 pH / ±0.02 pH (mV: ±600.0 mV / ±0.5 mV)
- ORP Range / Accuracy
- ±2000.0 mV / ±1.0 mV
- Conductivity (HI98194, HI98195)
- 0 to 200 mS/cm (absolute up to 400 mS/cm) / ±1 % of reading or ±1 µS/cm
- TDS (HI98194, HI98195)
- 0 to 400,000 ppm (depends on TDS factor) / ±1 % of reading or ±1 ppm
- Salinity (HI98194, HI98195)
- 0.00 to 70.00 PSU / ±2 % of reading or ±0.01 PSU
- Dissolved Oxygen (HI98194, HI98196)
- 0.0 to 500.0 % saturation; 0.00 to 50.00 mg/L / ±1.5 % of reading or ±1.0 % (0 to 300 %)
- Atmospheric Pressure
- 450.0 to 850.0 mmHg / ±3.0 mmHg within ±15 °C of calibration temperature
- Temperature
- -5.00 to 55.00 °C / ±0.15 °C
- Logging
- 45,000 records, continuous or log-on-demand, interval 1 s to 3 h
- PC Connection
- USB with HI9298194 software
- Meter Protection
- IP67 (1 m for 30 minutes)
- Probe
- HI7698194 (HI98194), HI7698195 (HI98195), HI7698196 (HI98196); IP68, maximum depth 20 m
- Power
- 4 x 1.5 V AA batteries; about 360 h without backlight (50 h with backlight)
- Environment
- 0 to 50 °C, RH 100 %
- Dimensions / Weight
- 185 x 93 x 35.2 mm / 400 g (meter)
- Warranty
- Meter 2 years; probes and sensors 6 months
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Parts & accessories
-
Price on quote
-
Price on quote
-
Price on quote
-
Price on quote
-
Price on quote
-
Price on quote
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
